Description

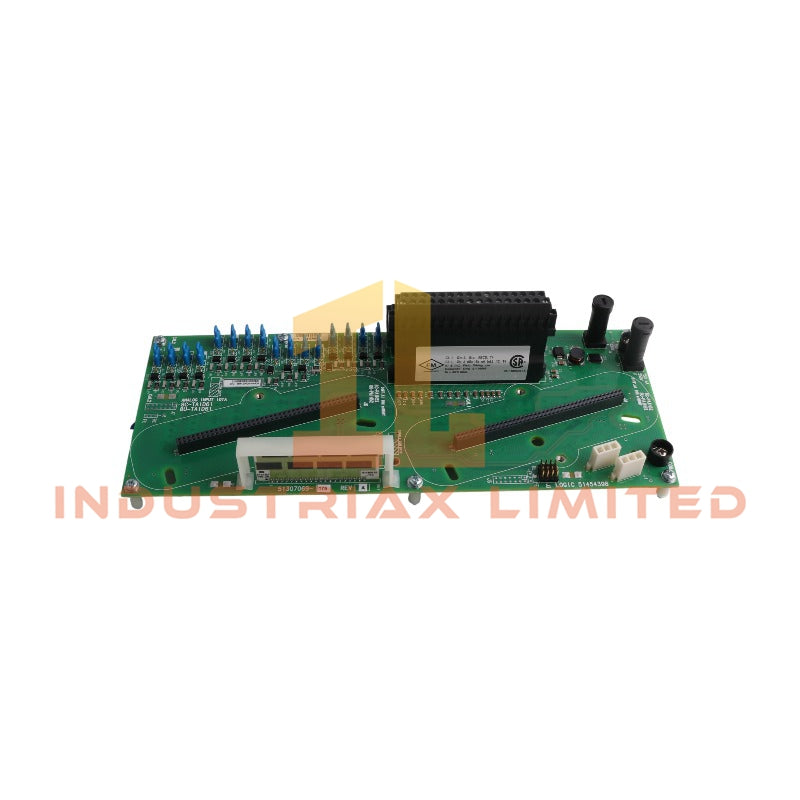

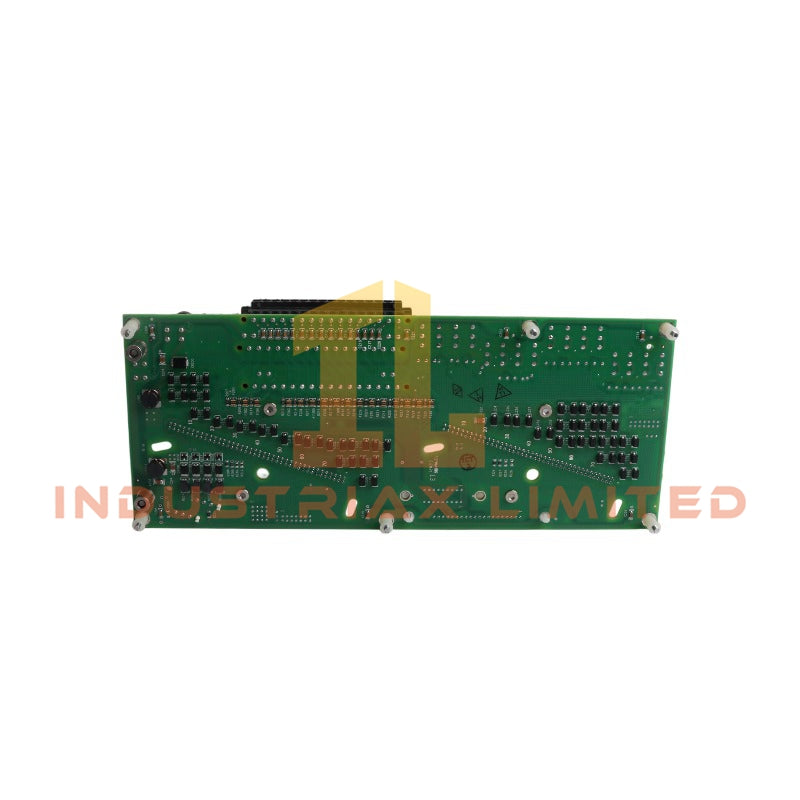

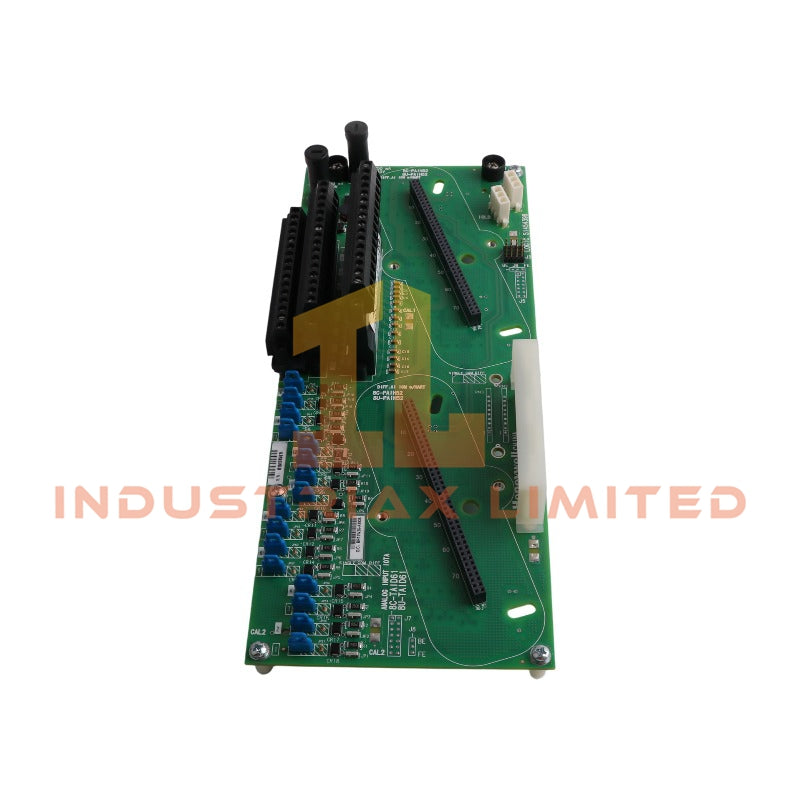

Honeywell 8C-TAID61 Analog Input Module

Configured for differential analog signal acquisition in the Honeywell Experion PKS C300 control system, the Honeywell 8C-TAID61 51307069-175 (8C-TAID61 Analog Input Module) provides direct electrical signal conversion and field interface execution.

Hardware Specifications

Parameter	Specification
Model	8C-TAID61
Spare Model	51307069-175
Brand	Honeywell
Product Type	Analog Input Module
Origin	USA
Weight	0.42 kg
Dimensions	29.5 x 12 x 7.5 cm
Operating Temp	-20 deg C to +70 deg C
Storage Temp	-40 deg C to +85 deg C
Power Supply	5 V DC
Power Consumption	4-12 W
Input Channels	16 channels
Input Impedance	250 ohm
Isolation	1500 V AC
Humidity	5-95% RH, non-condensing
Input Function	Analog signal acquisition
Field Power	Non-incendive field power supply
Diagnostic Function	Extensive self-diagnostics
Redundancy Support	Optional redundancy configuration
Wiring Monitoring	Open Wire Detection

4-20 mA HART and Channel Isolation Features

The Honeywell 8C-TAID61 Analog Input Module interfaces field analog signals through the Experion PKS C300 I/O architecture. The module supports 16 input channels and provides channel-level electrical separation for process measurement applications.

Furthermore, the module design supports field signal monitoring functions including Open Wire Detection. The integrated self-diagnostic functions continuously monitor module operating conditions and assist system maintenance activities.

The module provides non-incendive field power capability for compatible field devices. In addition, the optional redundancy configuration allows system designers to implement higher availability I/O arrangements.

Frequently Asked Questions

Q: What type of signals does the Honeywell 8C-TAID61 process?
A: The 8C-TAID61 is an Analog Input Module designed for acquisition of analog field signals through the Honeywell Experion PKS C300 I/O system.

Q: Does the 8C-TAID61 support field device power supply functions?
A: Yes. The module provides non-incendive field power capability for supported field instrumentation connections.

Q: What diagnostic functions are available on this module?
A: The module provides extensive self-diagnostics and Open Wire Detection functions for monitoring field wiring and module status.

Field Installation Guidelines

Install the Honeywell 8C-TAID61 module according to the Experion PKS C300 hardware installation requirements. Verify that the 5 V DC supply connections match the system power distribution specifications before energizing the module.

Connect field wiring using proper industrial instrumentation practices. Keep analog signal cables separated from high-voltage power conductors to reduce electromagnetic interference. Ground cable shields according to the control system grounding design and avoid multiple grounding points that may introduce signal loops.

Confirm terminal assignments, field device polarity, and channel configuration before commissioning. Check the module diagnostic status after installation to verify correct communication and input channel operation.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
