Description
Overview

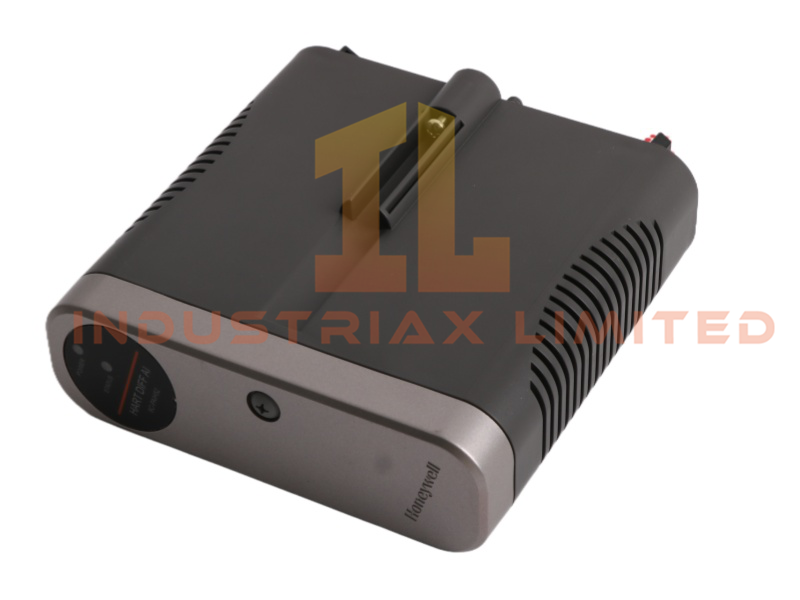

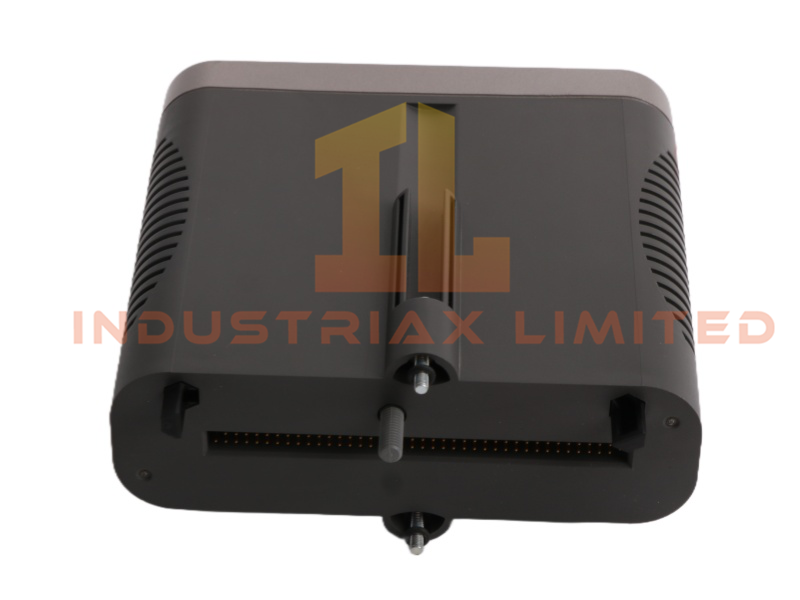

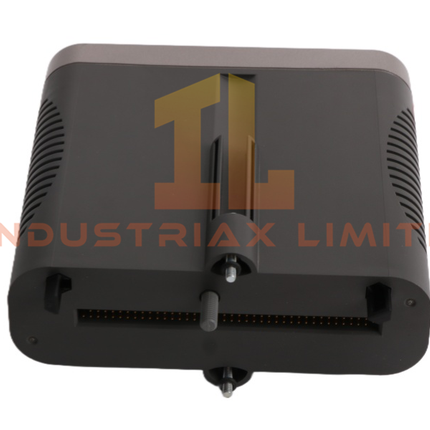

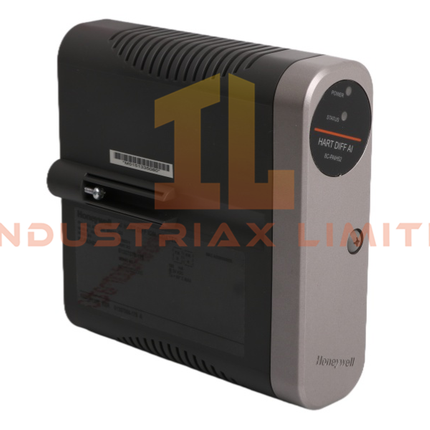

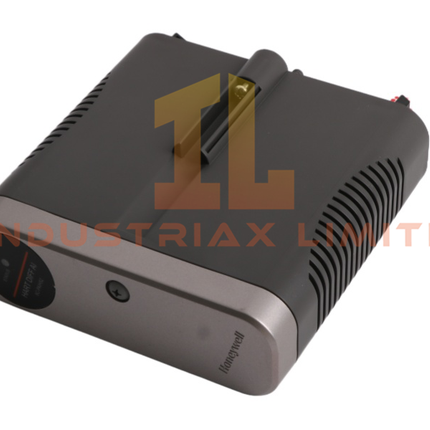

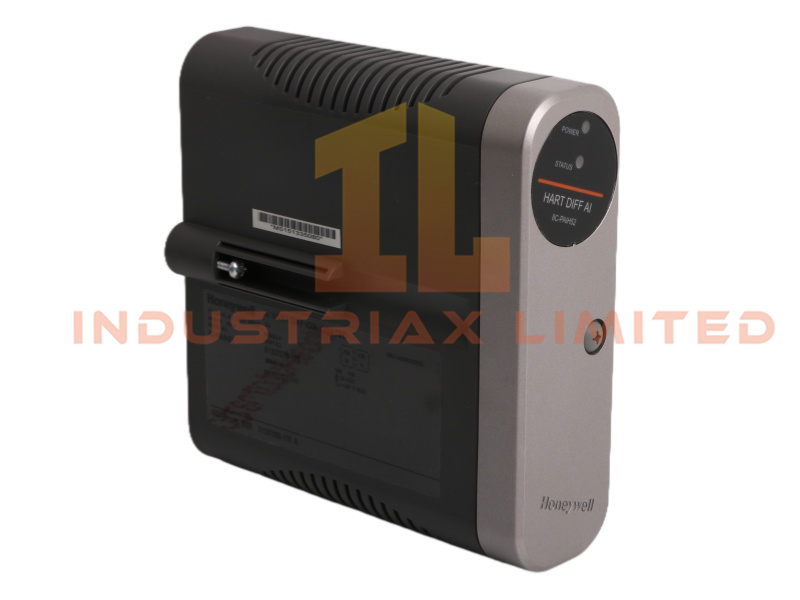

The Honeywell 8C-PAIH54 51307070-275 Analog Input Module provides precise measurement of temperature, pressure, flow, and voltage signals. Engineers rely on its ±0.25% accuracy, 12-bit resolution, and rugged design to ensure reliable performance in Experion PKS distributed control systems.
Technical Specifications
| Parameter |
Details |
| Model Number |
8C-PAIH54 51307070-275 |
| Manufacturer |
Honeywell |
| Module Type |
FOE Interface Cable / Analog Input |
| Dimensions |
7 × 14 × 14.5 cm |
| Weight |
0.4 kg |
| HS Code |
8537101190 |
| Input Types |
Voltage (0–10V), Current (4–20mA), Frequency (4–20kHz) |
| Accuracy |
±0.25% FS |
| Resolution |
12-bit |
| Isolation |
Up to 2500V |
| Operating Temperature |
-40°C to +85°C |
| Communication Protocols |
HART, Modbus, Ethernet |
| Protection |
Conformal coating |
| System Compatibility |
Experion PKS, DCS |
| Condition |
Brand New |
| Origin |
USA |
| MOQ |
1 |
| Communication Service |
Ethernet router |
| Discontinued On |
Active |
Functional Highlights
Honeywell designed the 8C-PAIH54 51307070-275 to support multiple input types, ensuring flexibility for diverse industrial applications. Its strong isolation up to 2500V protects equipment, while conformal coating enhances durability in harsh environments.
The 8C-PAIH54 51307070-275 maintains high repeatability and precise signal conversion, enabling accurate monitoring of critical parameters. Its compact 0.4 kg build and 7 × 14 × 14.5 cm dimensions simplify installation in space-constrained control cabinets.
Applications and Compatibility
The Honeywell 8C-PAIH54 51307070-275 suits industries requiring accurate analog input modules, including process control, machine monitoring, and building automation. Engineers deploy this module to monitor pumps, compressors, HVAC systems, and security infrastructure. Its support for HART, Modbus, and Ethernet ensures seamless integration with modern automation platforms.
