Description
Overview

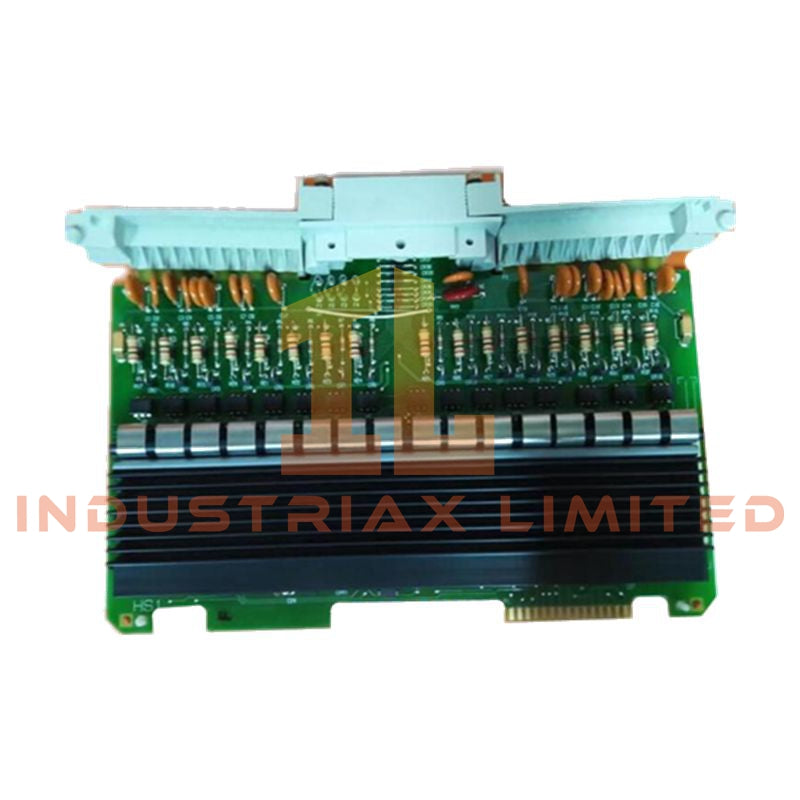

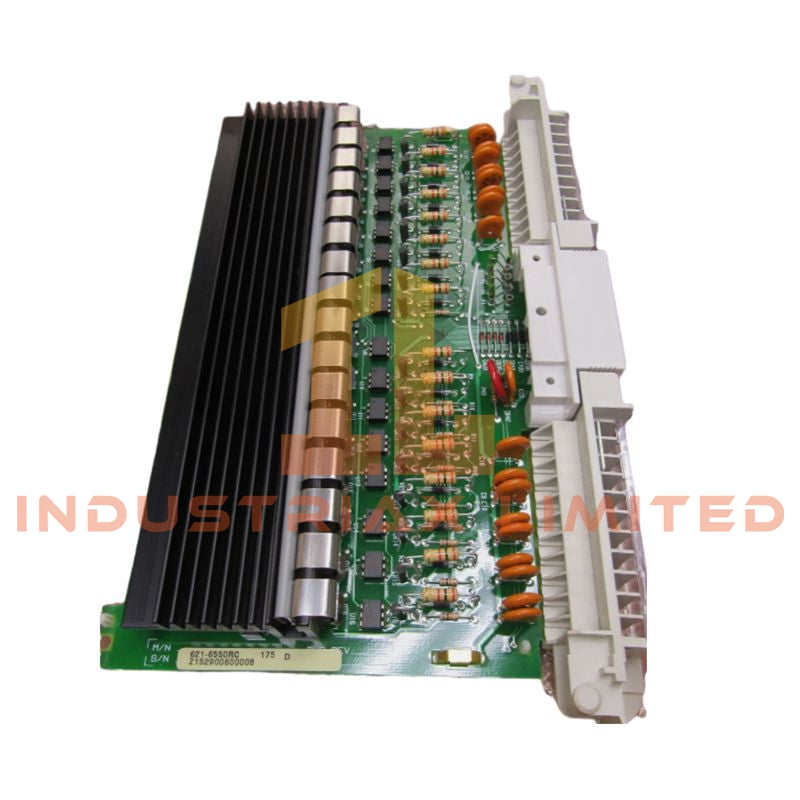

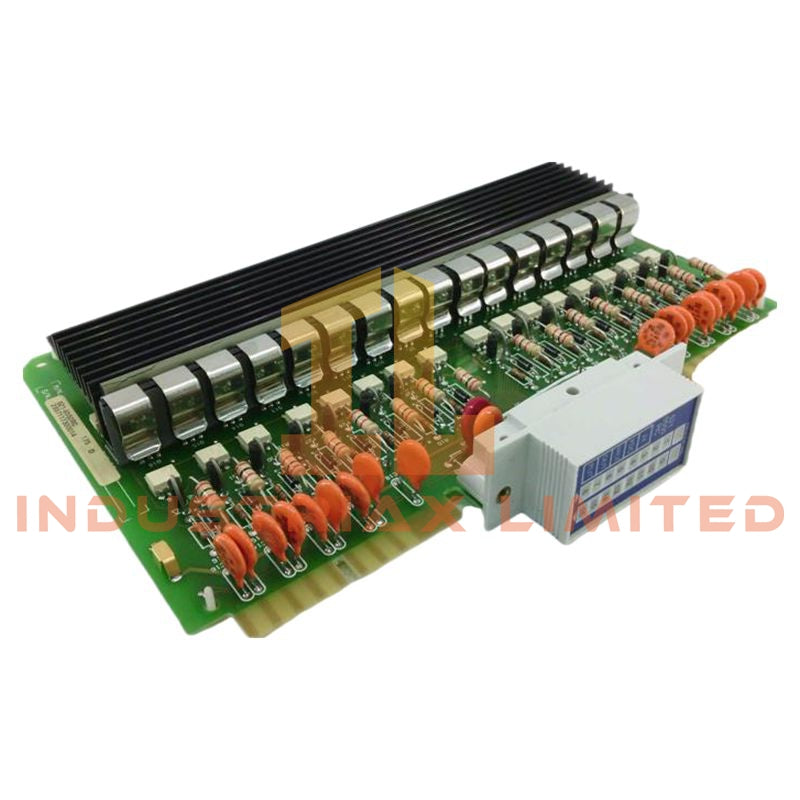

The Honeywell 621-6550RC is a 24 VDC source-type discrete output module designed for Honeywell IPC 620 and TDC 2000/3000 distributed control systems. Built for industrial-grade reliability, it delivers robust digital outputs to drive field devices such as actuators, relays, and indicator lights. The module features channel isolation, built-in diagnostics, and high-current capacity, making it suitable for demanding process control applications.
Functional Description
-
Provides 32 source-type output points with 16 points per common
-
Supports 24 VDC nominal operation with a voltage range of 18–28 VDC
-
High-current capability: 2 A per circuit, 5 A per group of four, 12 A per module
-
Opto-isolated channels minimize interference and electrical noise
-
Channel-level diagnostics detect faults to enhance system reliability
-
“RC” hot-swap design allows replacement without powering down the rack
Key Features
-
High Current Capacity: Handles heavy-duty devices with up to 12 A per module
-
Source-Type Outputs: Positive logic for direct control of actuators and relays
-
Channel Isolation: Protects against crosstalk and EMI interference
-
Diagnostics: Fault detection per channel improves maintenance efficiency
-
Industrial Durability: Designed for continuous operation under harsh conditions
-
Hot-Swap Ready: Removable/replaceable without disrupting system operation
Technical Specifications
| Specification |
Details |
| Model |
Honeywell 621-6550RC |
| Type |
Source Discrete Output Module |
| Compatible Systems |
IPC 620, TDC 2000, TDC 3000 |
| Output Channels |
32 points (16 points per common) |
| Nominal Voltage |
24 VDC |
| Voltage Range |
18–28 VDC |
| Max Current per Circuit |
2 A |
| Max Current per Group (4 points) |
5 A |
| Max Current per Module |
12 A |
| Surge Current |
8 A for 10 ms (non-repetitive) |
| Field Power Requirement |
25 mA per energized output |
| Off-State Leakage Current |
≤ 5 mA |
| On-State Voltage Drop |
≤ 1.5 V |
| Isolation |
Opto-isolated per channel |
| Diagnostics |
Channel-level fault detection |
| Dimensions |
158 × 98 × 30 mm |
| Weight |
1.49 lbs |
| Operating Temperature |
0°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
Applications
-
Driving actuators, solenoids, relays, and indicator lights in industrial systems
-
Distributed control in oil & gas, refining, power generation, and manufacturing
-
Reliable digital output for safety-critical process automation
-
Hot-swappable replacement in IPC 620/TDC racks for minimal downtime
FAQ
Q: What type of outputs does this module provide?
A: It delivers source-type (positive logic) digital outputs for direct control of field devices.
Q: Can it be replaced without shutting down the system?
A: Yes, the “RC” designation indicates it is hot-swappable.
Q: What is the maximum current per module?
A: Up to 12 A for the full module, with 2 A per circuit and 5 A per group of four outputs.
Q: Is it suitable for high-noise industrial environments?
A: Yes, channel-level opto-isolation provides excellent noise immunity.
