Description
Overview

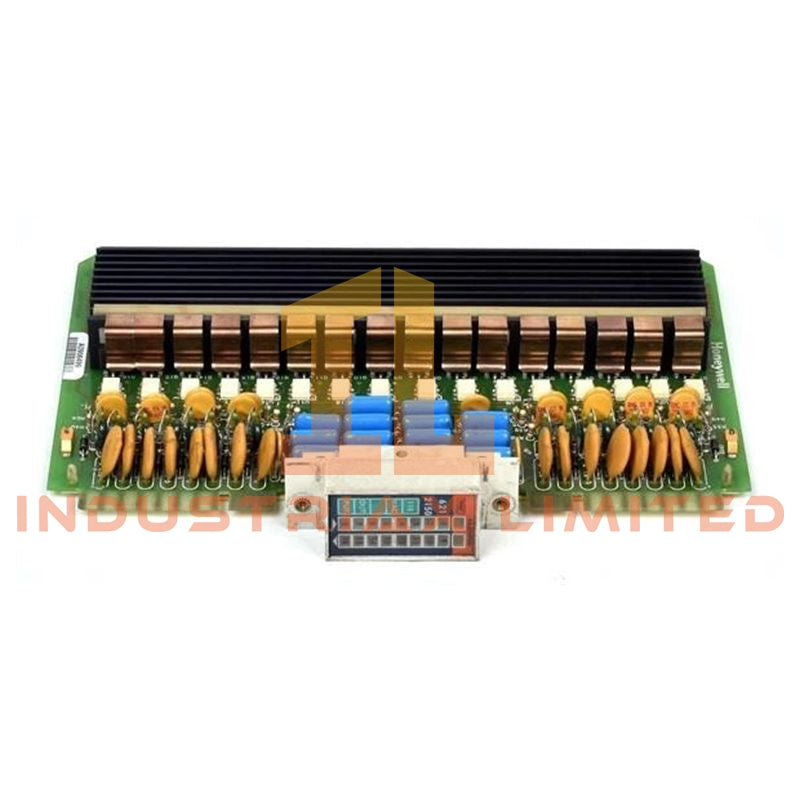

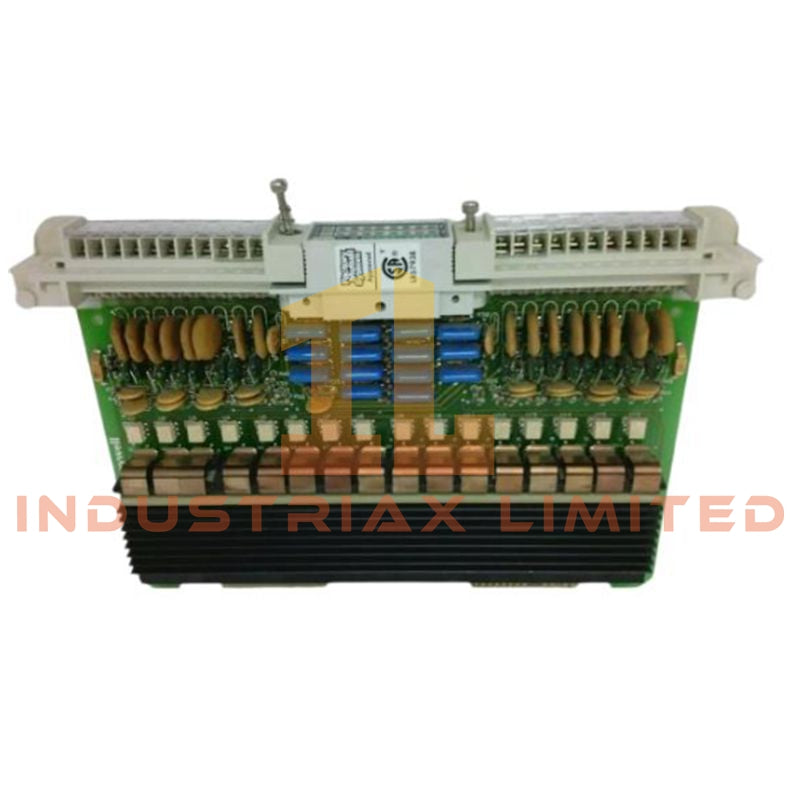

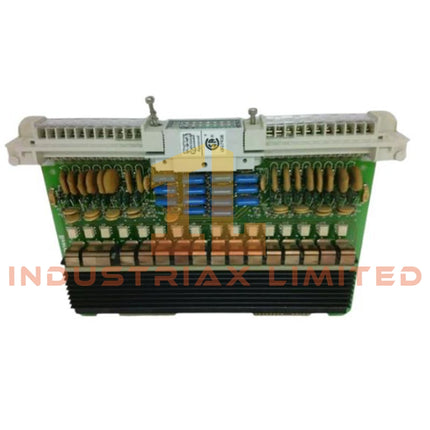

The Honeywell 621-2150 is a robust digital output module for IPC 620 and IPC 621 systems, engineered to control discrete field devices including relays, solenoids, and indicator lamps. Its solid-state transistor outputs, optical isolation, and diagnostic LEDs deliver safe, reliable, and responsive operation in complex industrial environments.
Key Features
-
16 discrete output channels for multi-point control
-
Optical isolation for protection against electrical noise and voltage surges
-
LED indicators for each channel to provide real-time status monitoring
-
Fast response times under 5 ms for immediate signal actuation
-
Rugged design optimized for continuous operation in harsh industrial conditions
-
Integrated protection against over-current, short circuits, and reverse polarity
Technical Specifications
| Specification |
Details |
| Model Number |
621-2150 |
| Product Type |
Digital Output Module |
| Output Channels |
16 channels |
| Output Voltage |
24 VDC typical |
| Maximum Output Current |
0.5 A per channel |
| Output Type |
Solid-state transistor outputs |
| Isolation |
Optical isolation between logic and field outputs |
| Indicators |
LED per channel for output status |
| Mounting |
Rack-mounted, modular slot |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
–20°C to +85°C |
| Dimensions |
145 × 100 × 30 mm |
| Weight |
0.7 kg |
| Protection Features |
Over-current, short-circuit, reverse polarity protection |
Functional Description
The 621-2150 converts controller logic signals into reliable field outputs for various devices, ensuring real-time actuation. Its optical isolation safeguards the control processor while diagnostic LEDs provide clear visibility of output status at a glance.
Applications
Ideal for process control, factory automation, and energy management, this module is widely deployed in chemical plants, oil & gas facilities, and power generation environments requiring dependable discrete output control.
FAQ
Q: What type of outputs does the 621-2150 provide?
A: The module uses solid-state transistor outputs with up to 0.5 A per channel.
Q: Is the module protected against wiring faults?
A: Yes, it features protection against over-current, short-circuits, and reverse polarity.
Q: Can it operate in electrically noisy industrial environments?
A: Yes, optical isolation ensures safe and reliable operation under harsh conditions.
