Overview

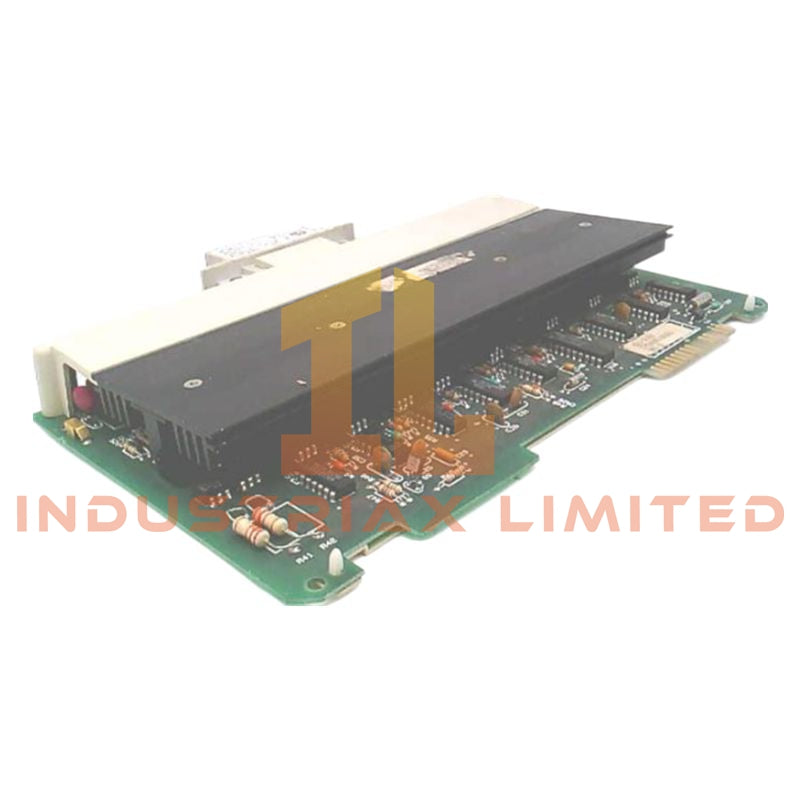

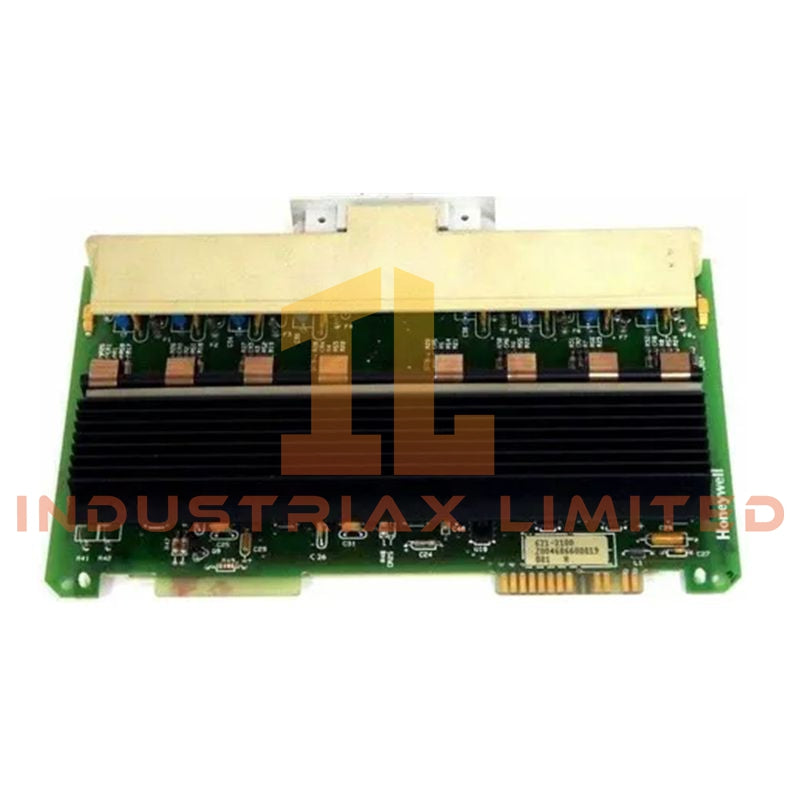

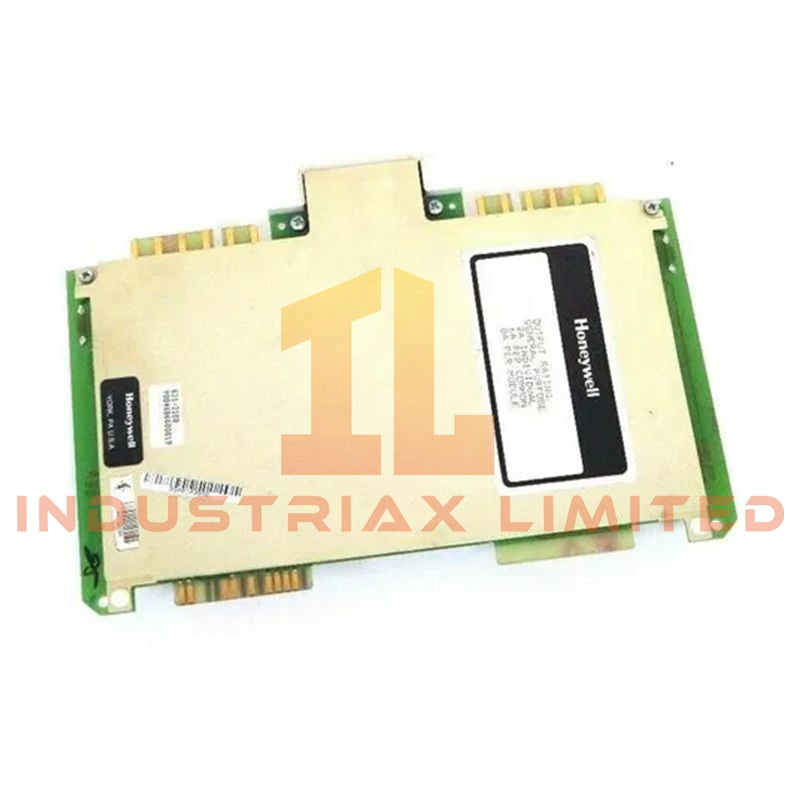

The Honeywell 621-2100 is a high-performance digital output module designed for IPC 620 and IPC 621 control systems. It converts controller logic into discrete output signals to reliably operate field devices such as relays, solenoids, and indicator lamps. Featuring optical isolation and built-in diagnostics, this module ensures safe, accurate, and responsive operation in industrial environments.
Key Features
-
16 solid-state output channels for multi-point control
-
Optical isolation to protect controller logic from electrical noise and surges
-
Channel-level LED indicators for clear status monitoring
-
Fast switching response under 5 ms for real-time process control
-
Rugged design for continuous operation in harsh industrial conditions
-
Over-current, short-circuit, and reverse polarity protection
Technical Specifications
| Specification |
Details |
| Model Number |
621-2100 |
| Product Type |
Digital Output Module |
| Output Channels |
16 channels |
| Output Voltage |
24 VDC typical |
| Output Current |
0.5 A per channel maximum |
| Output Type |
Transistor-driven (solid-state) |
| Isolation |
Optical isolation between logic and field circuits |
| Indicators |
LED per channel for output status |
| Mounting |
Rack-mounted modular slot |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
–20°C to +85°C |
| Dimensions |
145 × 100 × 30 mm |
| Weight |
1.5 lbs |
| Protection Features |
Over-current, short-circuit, reverse polarity |
Functional Description
The 621-2100 is engineered to drive discrete field devices directly from the control processor. Its transistor outputs provide fast and reliable switching with visual LED diagnostics for each channel. The module is designed for high availability, ensuring continuous operation in energy, chemical, and process control applications.
Applications
This digital output module is suitable for controlling relays, solenoids, indicator lamps, and other discrete devices in process automation, energy management, and manufacturing environments. It is widely used in oil & gas, chemical plants, and power generation systems where dependable digital output control is required.
FAQ
Q: What type of outputs does the 621-2100 provide?
A: Transistor-driven solid-state outputs, with each channel supporting up to 0.5 A.
Q: Is the module protected against wiring errors?
A: Yes, the module includes over-current, short-circuit, and reverse polarity protection.
Q: Can this module operate in harsh industrial environments?
A: Yes, it is designed with rugged construction and optical isolation to handle electrically noisy and industrial settings.
