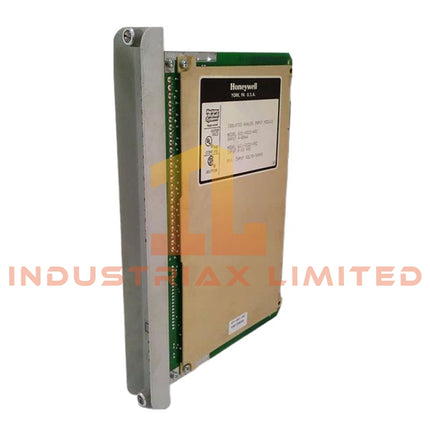

The Honeywell 621-0022-RC is an 8-channel isolated analog input module designed for Honeywell IPC 620 and TDC control platforms. It is used to interface field instrumentation with control systems by converting analog voltage and current signals into digital data for processing.
Each channel is electrically isolated to minimize interference, making the module suitable for high-noise industrial environments. The “RC” variant supports hot-swapping, allowing maintenance without interrupting system operation.
Key Features
-
Multi-Range Signal Input: Supports a wide selection of voltage and current ranges
-
Channel Isolation: Reduces electrical noise and improves signal integrity
-
Hot-Swap Capability: “RC” version allows insertion and removal under power
-
Per-Channel Calibration: Adjustable zero and span settings for precise measurements
-
Industrial Compliance: Designed to meet CE and EMC requirements
-
System Integration: Fully compatible with Honeywell IPC 620 and TDC architectures
Technical Specifications
| Specification |
Details |
| Model |
Honeywell 621-0022-RC |
| Type |
Isolated Analog Input Module |
| Channels |
8 differential isolated inputs |
| Input Ranges |
0–10 V, ±10 V, 0–5 V, ±5 V, 1–5 V, 0–20 mA, 4–20 mA |
| Input Type |
Voltage and current (configurable per channel) |
| Calibration |
Adjustable zero and span per channel |
| Isolation |
Channel-to-channel electrical isolation |
| Backplane Interface |
Compatible with IPC 620 / TDC rack systems |
| Dimensions |
33 × 274 × 171 mm |
| Weight |
1.46 lb |
Applications
-
Signal acquisition from transmitters (pressure, flow, temperature)
-
Analog data integration in Honeywell DCS environments
-
Industrial process monitoring in chemical, power, and manufacturing sectors
-
Retrofit or expansion of existing IPC 620 / TDC I/O systems
FAQ
Q: What is the advantage of the RC version?
A: The RC suffix indicates hot-swap capability, allowing module replacement without shutting down the system.
Q: Can different input types be used simultaneously?
A: Yes, each channel can be configured independently for voltage or current input ranges.
Q: How does isolation improve performance?
A: Electrical isolation prevents ground loops and reduces signal interference, ensuring stable and accurate readings.
Q: Which systems is this module compatible with?
A: It is designed for Honeywell IPC 620 and TDC 2000/3000 control systems.
