Description
Overview

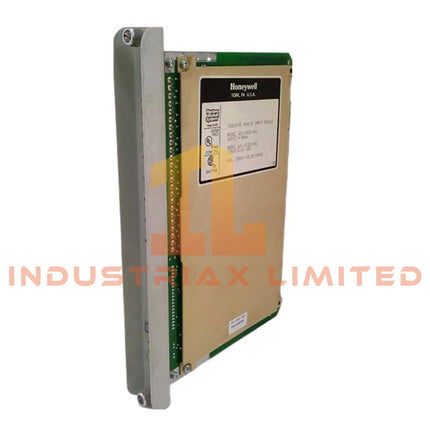

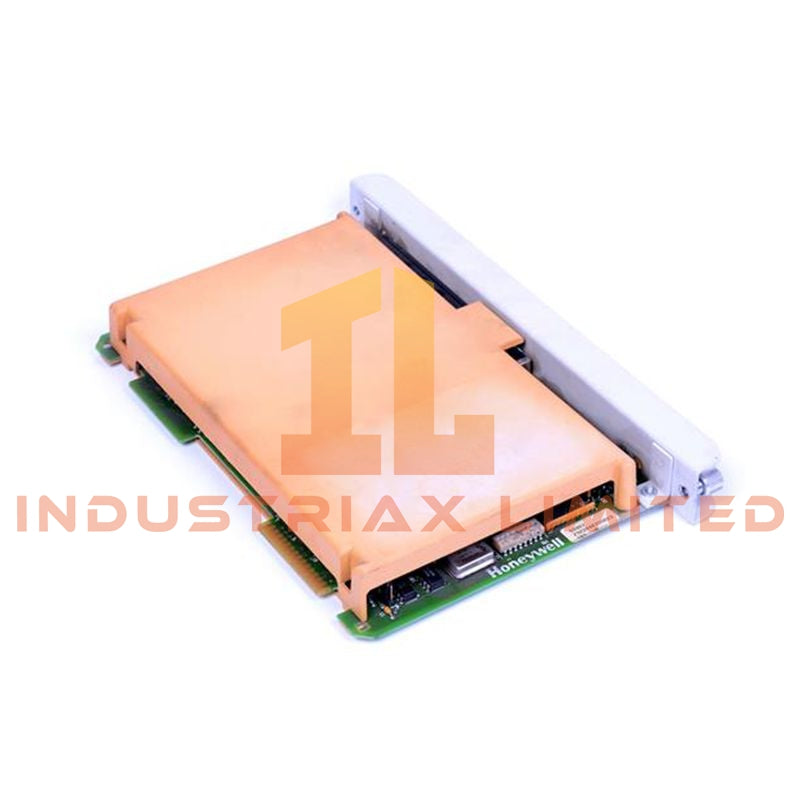

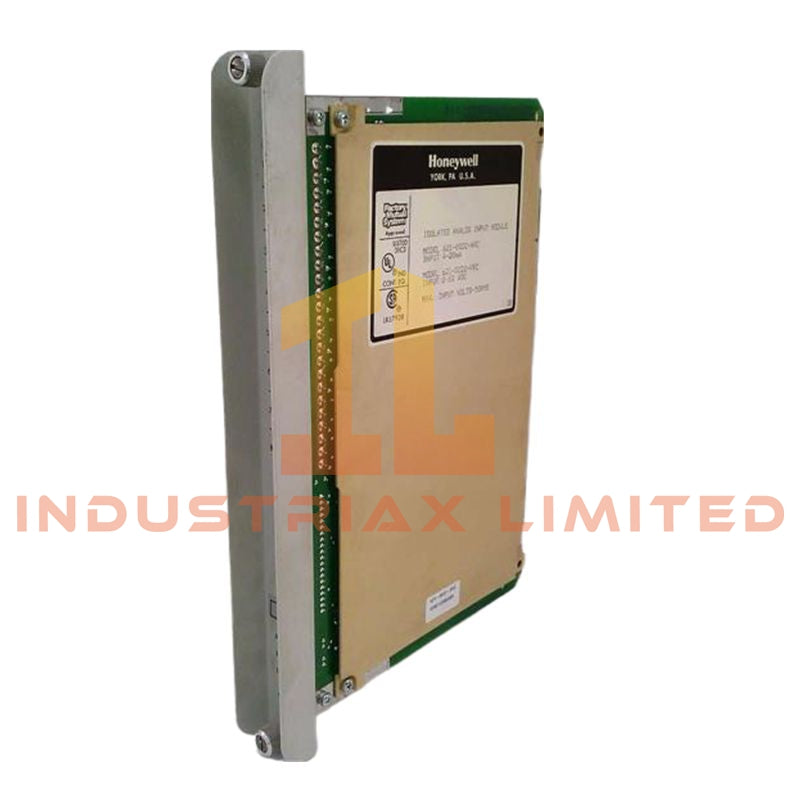

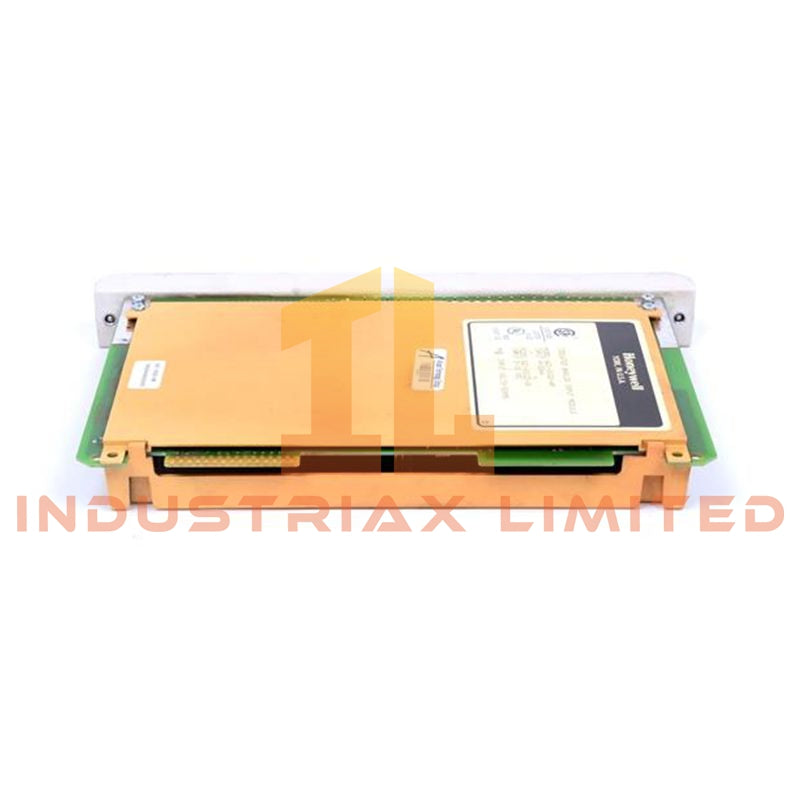

The Honeywell 621-0022 is an analog input module developed for IPC 620 and IPC 621 control platforms. It acquires continuous process signals from field instrumentation and converts them into digital data for the control processor. With support for both voltage and current inputs, the module is suited for precise measurement tasks in process control and monitoring systems.
Key Features
-
8-channel analog input configuration for multi-signal acquisition
-
Compatible with standard industrial signals including 0–10 VDC and 4–20 mA
-
12-bit conversion for stable and repeatable measurement results
-
Fast sampling performance for responsive control loops
-
Electrical isolation between field inputs and internal circuitry
-
LED indicators for module and channel activity diagnostics
-
Built-in protection against incorrect wiring and voltage transients
Technical Specifications
| Specification |
Details |
| Model Number |
621-0022 |
| Product Type |
Analog Input Module |
| Input Channels |
8 channels |
| Resolution |
12-bit |
| Accuracy |
±0.4% of full scale (at 25°C) |
| Conversion Time |
Approx. 75 µs per channel |
| Input Ranges |
0–10 VDC, ±10 VDC, 0–5 VDC, ±5 VDC |
| Current Input |
4–20 mA (via internal or external conversion, variant-dependent) |
| Signal Isolation |
Optical isolation between field and logic circuits |
| Indicators |
LED status indicators |
| System Compatibility |
IPC 620, IPC 621 |
| Mounting |
Rack-mounted modular slot |
| Protection |
Over-voltage and reverse polarity protection |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
–20°C to +85°C |
| Humidity |
5%–95% non-condensing |
| Dimensions |
145 × 100 × 30 mm |
| Weight |
1.50 lbs |
Performance Characteristics
The 621-0022 is designed to maintain measurement stability in environments with electrical noise and fluctuating signal conditions. Its isolation design helps prevent ground loops and signal interference, ensuring reliable data acquisition across multiple channels.
Applications
This module is typically installed in systems that require continuous monitoring of process variables such as pressure, temperature, flow, and level. It is widely used in energy systems, chemical plants, water treatment facilities, and manufacturing automation lines.
FAQ
Q: Does the 621-0022 support both voltage and current signals?
A: Yes, it supports common voltage ranges directly, while 4–20 mA signals are supported depending on configuration or external conversion.
Q: Is this module suitable for noisy industrial environments?
A: Yes, optical isolation and protection circuitry help maintain signal integrity in electrically harsh conditions.
Q: How many signals can be monitored simultaneously?
A: The module provides 8 independent input channels, allowing simultaneous multi-point measurement.
