Description

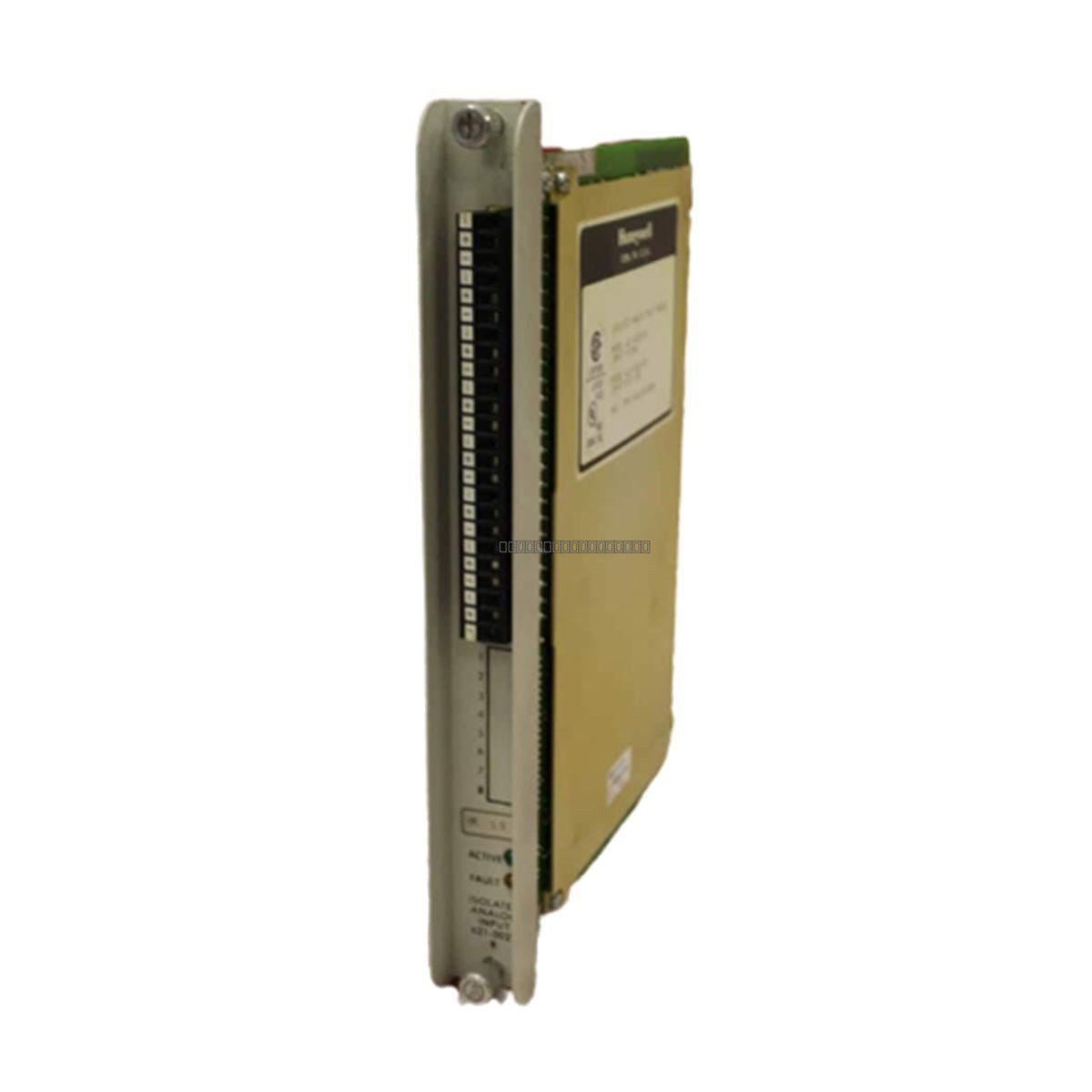

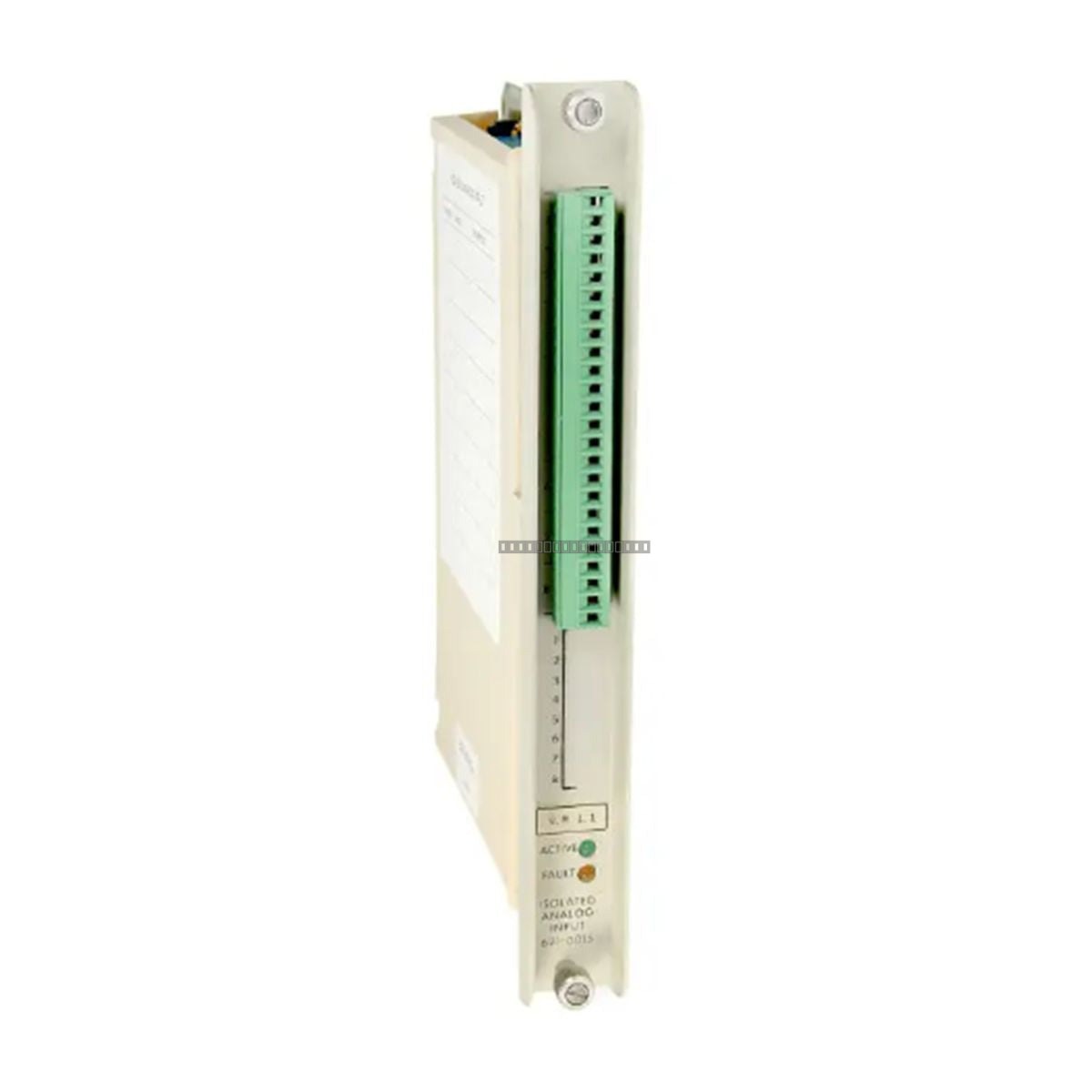

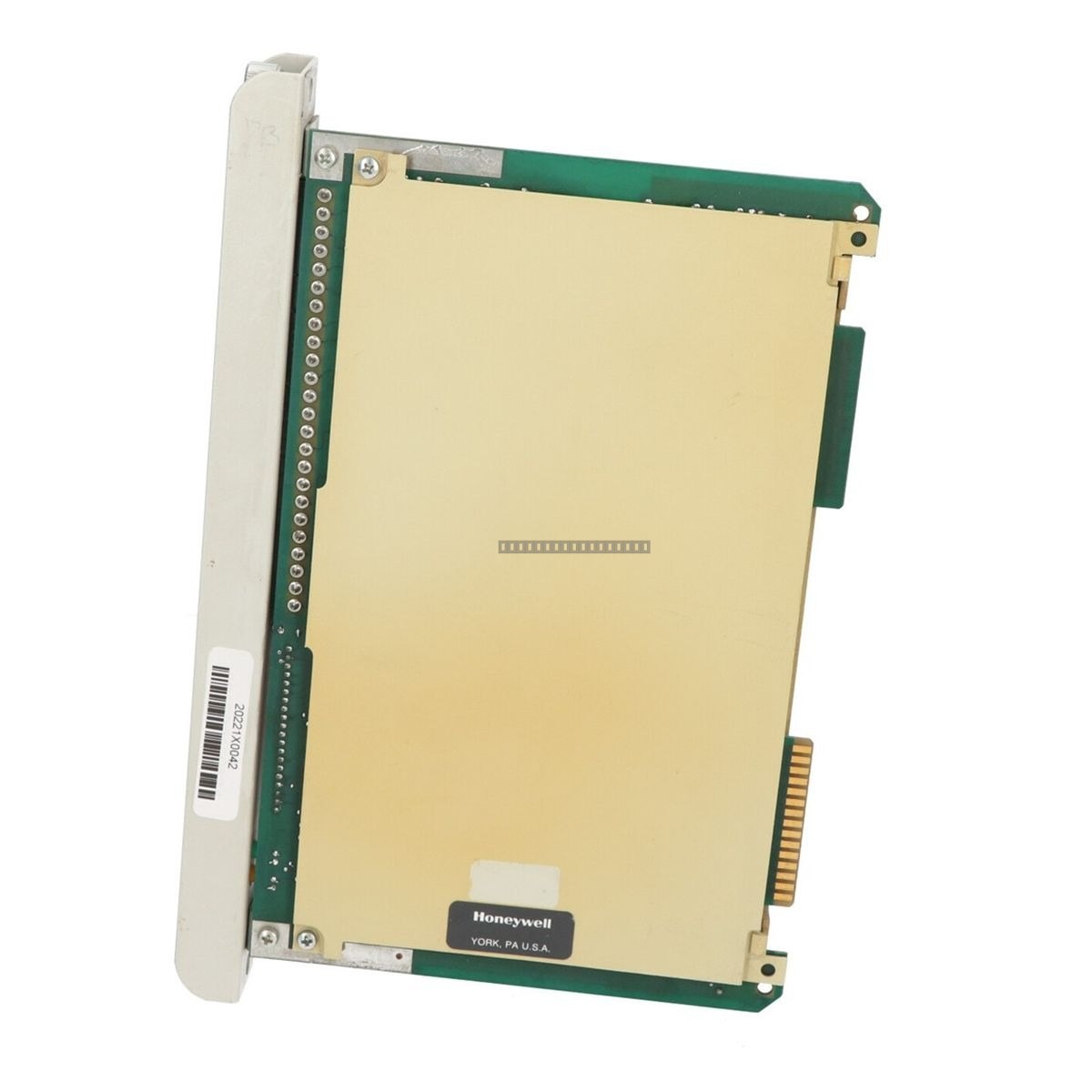

The Honeywell 621-0015 is an isolated analog input module designed for the 620 Series industrial control system. This module provides 8 independent channels for high-level analog signal acquisition, specifically engineered for demanding process control, manufacturing automation, and utility monitoring environments. By incorporating electrical isolation, the 621-0015 effectively mitigates cross-channel interference and protects the backplane from transient disturbances and ground loops, ensuring reliable and accurate real-time data processing.
Features
- 8 isolated analog input channels for high-level signal acquisition.
- Electrical isolation per channel to prevent ground loops and signal noise.
- Direct integration with the 620 Series backplane for deterministic communication.
- Compact modular design for efficient rack space utilization.
- Designed for stable performance in electrically noisy industrial environments.
Applications
This module is suitable for various industrial applications, including:
- Process control systems requiring precise analog monitoring.
- Manufacturing automation and production line instrumentation.
- Utility monitoring and data acquisition systems.
- Industrial environments where signal integrity is critical due to high EMI.
Technical Specifications
| Model |
621-0015 |
| Series |
620 Series |
| Channel Count |
8 Isolated Channels |
| Input Type |
High-Level Analog |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Power Source |
Backplane Powered |
| Mounting |
620 Series Backplane Clamp |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the backplane.
- Handle the module using ESD-safe practices to prevent damage to internal circuitry.
- Verify that the module is securely seated in the 620 Series backplane and the clamp is fully engaged.
- Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal accuracy.
- Ensure adequate ventilation in the cabinet to maintain operating temperatures within the 0 to 60 deg C range.
FAQ
Is the 621-0015 module compatible with other Honeywell series?
No, the 621-0015 is specifically designed for the Honeywell 620 Series and is intended for use with the corresponding 620 Series backplane architecture.
Does this module require external power?
The 621-0015 is powered directly via the 620 Series backplane, simplifying the wiring requirements for the installation.
