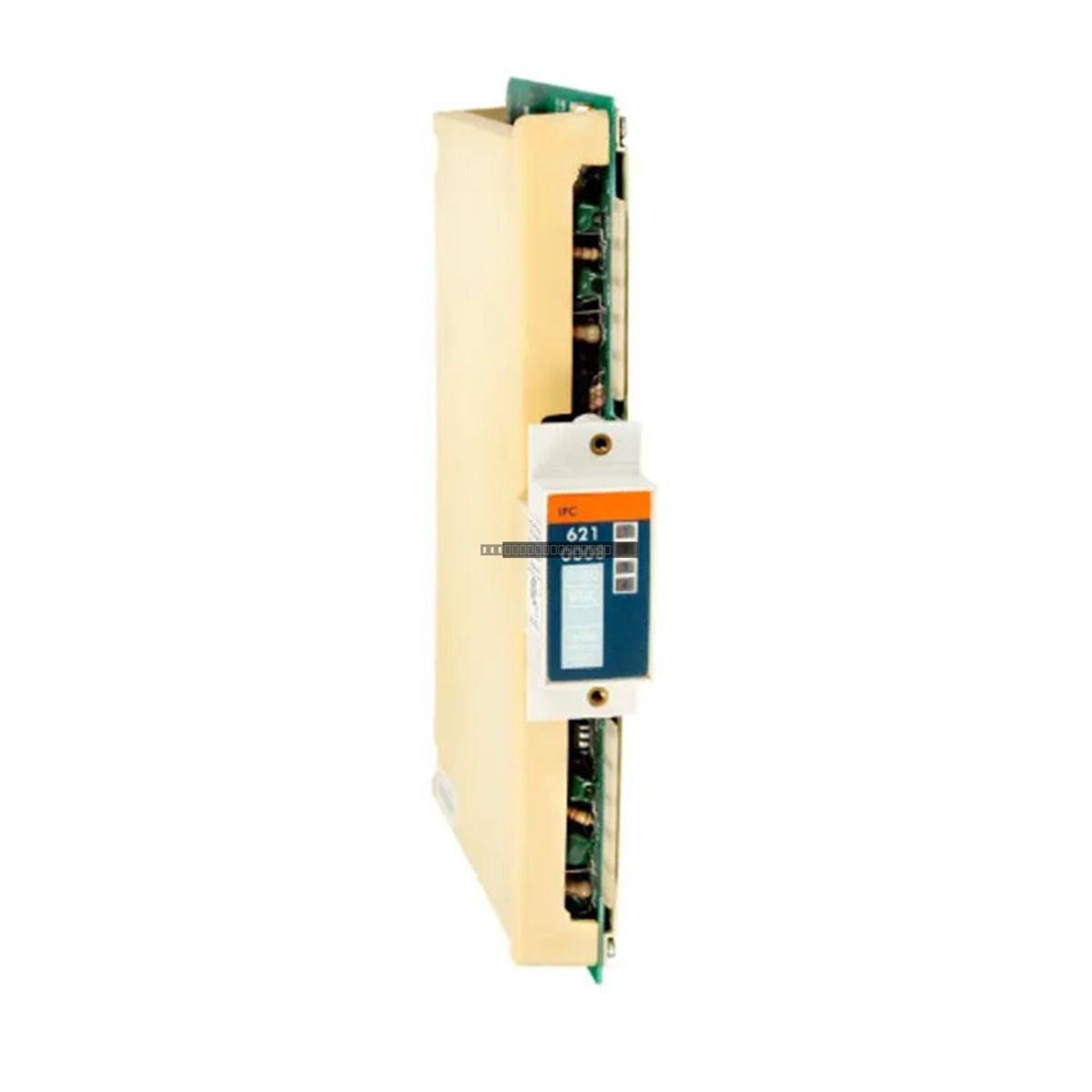

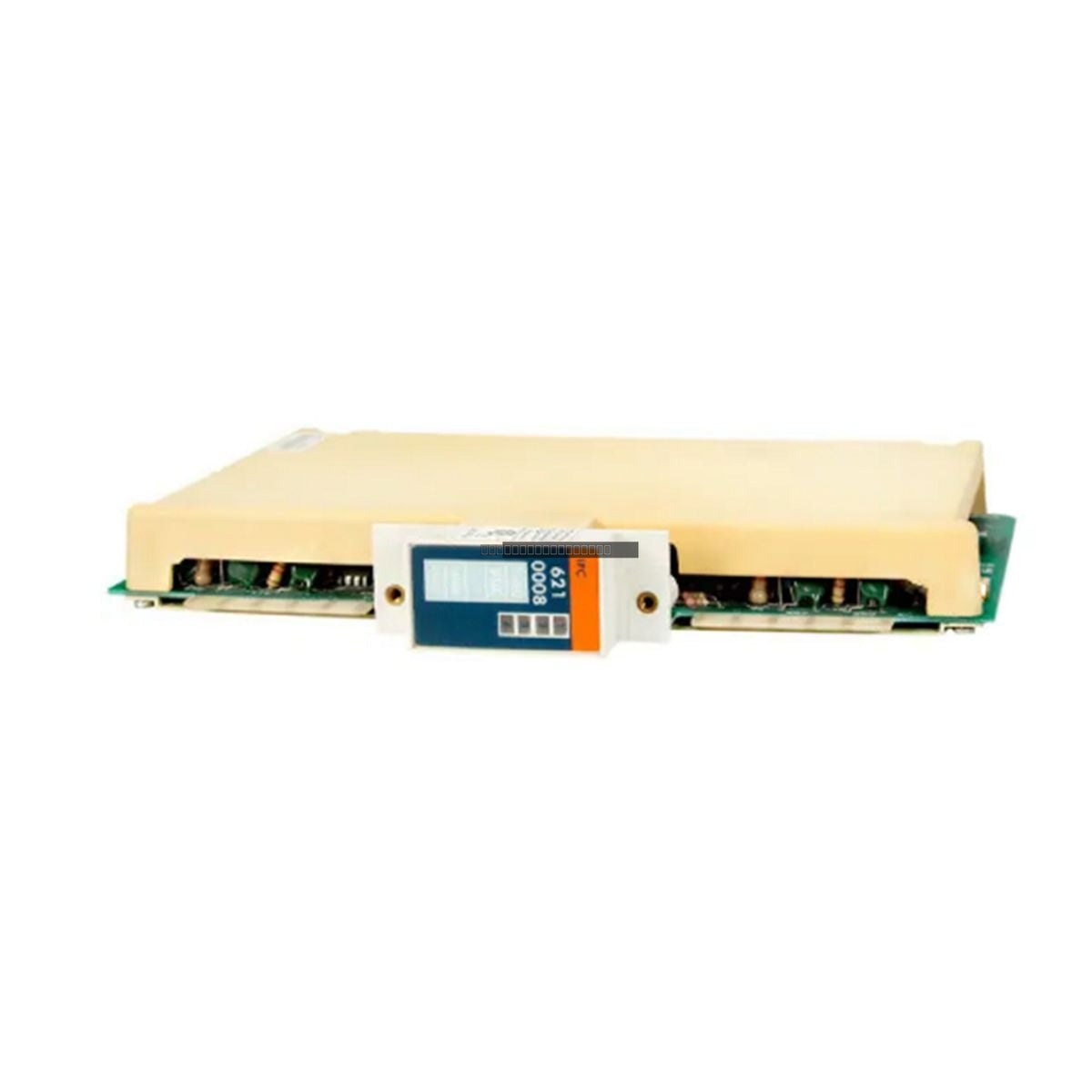

The Honeywell 621-0008 is a four-channel pulse input module engineered for industrial automation systems requiring precise acquisition and processing of pulse-based signals. This module interfaces directly with field instrumentation such as flowmeters, turbine meters, encoders, counters, and speed monitoring sensors. By converting incoming pulse signals into digital data, it enables the control system to perform accurate measurement, monitoring, and control functions across various industrial environments including power generation, water treatment, petrochemical processing, and utility infrastructure.
Features
- Four independent pulse input channels for high-speed signal acquisition.
- Robust electrical isolation and signal conditioning to maintain integrity in high-EMI industrial environments.
- Integrated diagnostic functions for continuous monitoring of module status and input signal health.
- Compact, modular design optimized for high-density control cabinet installations.
- Seamless integration with host controllers via internal system backplane communication.
Applications
The 621-0008 module is suitable for applications requiring high-reliability pulse counting and signal detection, such as:
- Flow measurement and totalizing systems.
- Rotational speed monitoring and tachometry.
- Utility metering and process automation.
- Industrial counting and batch control.
Technical Specifications
| Model |
621-0008 |
| Brand |
Honeywell |
| Series |
IPC Series |
| Input Channels |
4 |
| Function |
Pulse acquisition and counting |
| Operating Temperature |
0 to 60 deg C |
| Mounting |
Rack-mounted |
Installation Guidelines
- Ensure the control system power is disconnected before installing or removing the module from the rack.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
- Ensure the module is fully seated in the backplane connector to guarantee reliable communication.
- Route signal cables away from high-voltage power lines and sources of electromagnetic interference to maintain signal accuracy.
- Verify that field wiring is securely terminated according to the system documentation to prevent intermittent signal loss.
FAQ
What type of field devices can be connected to the 621-0008?
The module is compatible with various pulse-output devices including flowmeters, turbine meters, encoders, counters, and speed sensors.
Does this module provide diagnostics?
Yes, the module features internal diagnostics that monitor module health and input channel integrity, allowing for early detection of abnormal conditions.
What is the operating temperature range for this module?
The module is designed to operate within an ambient temperature range of 0 to 60 deg C.
