Description
Overview

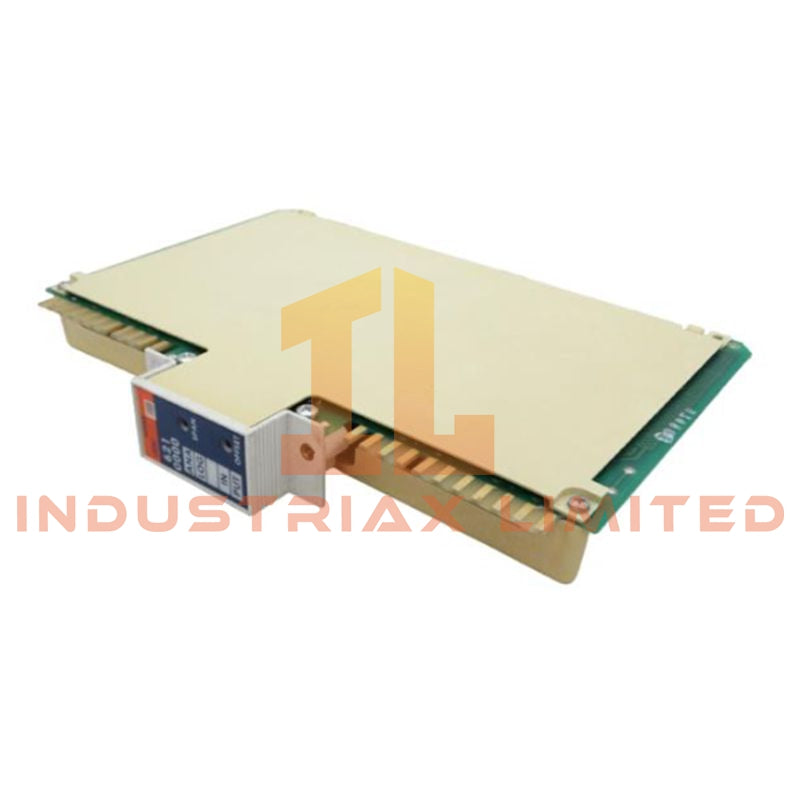

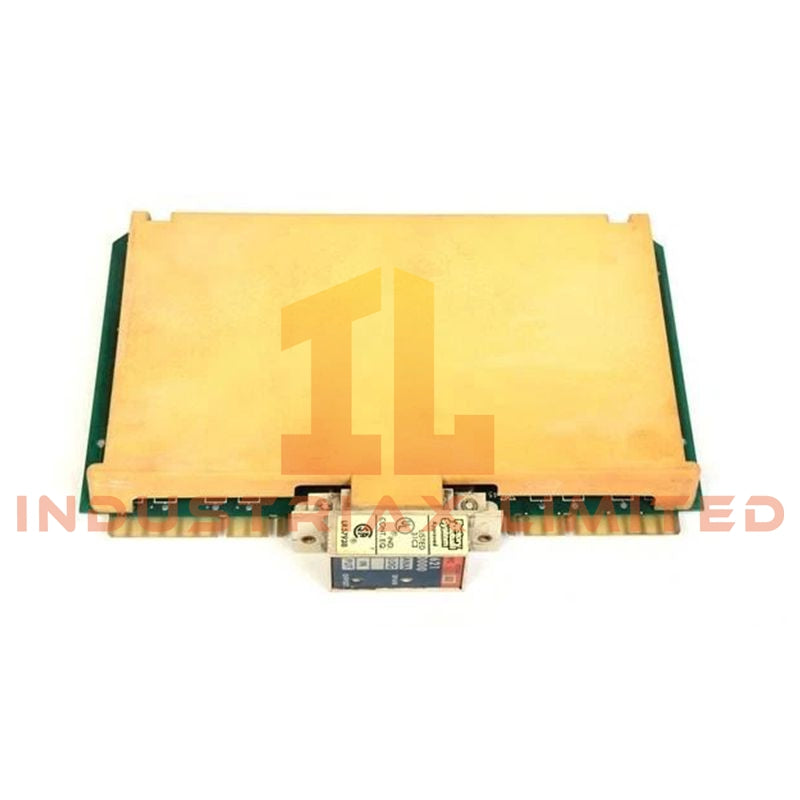

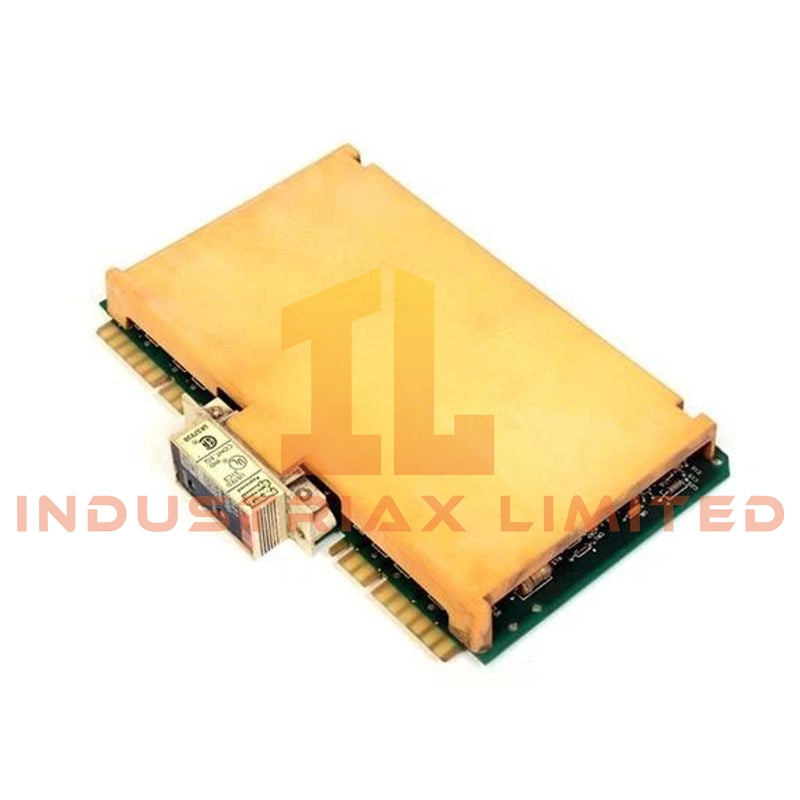

The Honeywell 621-0000 is an 8-channel analog input module engineered for IPC 620 and TDC series distributed control systems. It converts field-level voltage and current signals into digital data for precise process monitoring and control. Designed for stable long-term operation, this module combines fast signal conversion with flexible input range support, making it suitable for a wide range of industrial measurement tasks.
Key Features
-
8 independent analog input channels for multi-point signal acquisition
-
Supports multiple voltage ranges for flexible field integration
-
12-bit resolution ensures consistent measurement accuracy
-
Fast conversion rate for near real-time data processing
-
Compact module format for efficient rack installation
-
LED indicators for quick diagnostics and operational status
Technical Specifications
| Specification |
Details |
| Model Number |
621-0000 |
| Product Type |
Analog Input Module |
| Channels |
8 analog inputs |
| Resolution |
12-bit |
| Accuracy |
≤ ±0.4% of full scale |
| Conversion Time |
75 µs per channel |
| Input Signal Range |
0–10 VDC, ±10 VDC, 0–5 VDC, ±5 VDC |
| Signal Type |
Voltage (current input via external conversion) |
| System Compatibility |
IPC 620, TDC 2000, TDC 3000 |
| Mounting |
Rack-mounted (modular slot) |
| Operating Voltage |
Backplane powered |
| Power Consumption |
Low power design (typ. <5 W) |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
–20°C to +85°C |
| Humidity |
5%–95% non-condensing |
| Dimensions |
145 × 100 × 30 mm |
| Weight |
0.86 lbs |
| Indicators |
Front-panel LED status indicators |
Applications
The 621-0000 module is typically used in process industries requiring stable analog signal acquisition, including power generation, petrochemical plants, water treatment facilities, and general manufacturing. It is particularly suitable for monitoring sensors such as transmitters, pressure devices, and instrumentation outputs.
FAQ
Q: Does the 621-0000 support current input signals directly?
A: The module primarily supports voltage inputs. Current signals (e.g., 4–20 mA) are typically connected via external signal conversion resistors.
Q: Is this module compatible with legacy Honeywell systems?
A: Yes, it is designed for seamless integration with IPC 620 as well as TDC 2000 and TDC 3000 systems.
Q: How fast is the signal update rate?
A: With a conversion speed of 75 µs per channel, the module supports high-speed data acquisition suitable for real-time control applications.
