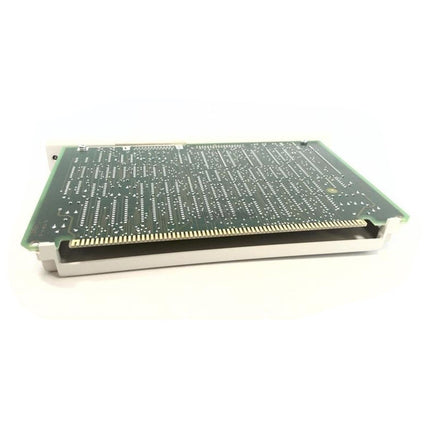

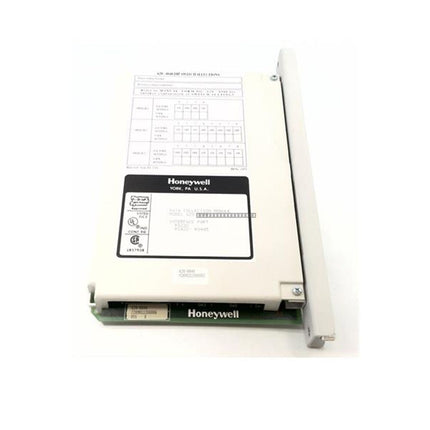

The Honeywell 620-0048 (6200048) is a dedicated data collection module for the 620 Series industrial control and process automation platforms. This PC board-based module serves as a critical interface for field data acquisition, ensuring reliable signal aggregation and transmission between field wiring and the control system backplane. It is engineered to maintain data integrity in demanding industrial environments, including refinery control cabinets and power plant auxiliary systems.
Features
-
Interface Connectivity: Equipped with a standard 25-pin Sub-D connector for secure field wiring termination.
-
Diagnostic Indicators: Integrated status LEDs provide real-time monitoring of power and communication activity, facilitating rapid troubleshooting.
-
System Integration: Designed for seamless installation within 620 Series modular control environments.
-
Operational Reliability: Optimized for deterministic signal transfer to minimize latency and system downtime.
Applications
This module is widely utilized in distributed control systems (DCS) and industrial automation architectures, specifically for:
- Refinery and petrochemical process control cabinets.
- Power plant auxiliary control and monitoring systems.
- Manufacturing automation lines requiring high-density signal aggregation.
- General-purpose field I/O interfacing for 620 Series controllers.
Technical Specifications
| Model |
620-0048 (6200048) |
| Series |
620 Series |
| Product Type |
Data Collection Module / PC Board |
| Interface |
25-pin Sub-D Connector |
| Diagnostics |
Status LEDs (Power/Communication) |
| Operating Temperature |
0 to 60 deg C |
| Power Consumption |
Less than 8 W |
Installation Guidelines
-
ESD Protection: Always handle the module using proper electrostatic discharge (ESD) precautions to prevent damage to sensitive internal circuitry.
-
Power Status: Ensure the control system backplane is powered down before inserting or removing the module to prevent electrical arcing or configuration errors.
-
Wiring: Use shielded cabling for the 25-pin Sub-D interface to minimize electromagnetic interference (EMI) in high-noise industrial environments.
-
Mounting: Ensure the module is fully seated in the rack slot to guarantee proper connection with the backplane bus.
-
Environment: Maintain the operating environment within the specified 0 to 60 deg C range and ensure adequate ventilation within the control cabinet.
FAQ
What is the primary function of the 620-0048 module?
The 620-0048 acts as a data collection and signal aggregation interface, allowing field signals to be reliably transmitted into the Honeywell 620 Series control backplane.
How do I troubleshoot communication issues with this module?
The module features onboard status LEDs that indicate power and communication activity. If the LEDs are not in the expected state, check the 25-pin Sub-D connection and verify that the field wiring is properly terminated.
Is this module compatible with other Honeywell series?
The 620-0048 is specifically designed for the Honeywell 620 Series. It is not intended for use in other product families unless explicitly specified by Honeywell documentation.
