Description
Overview

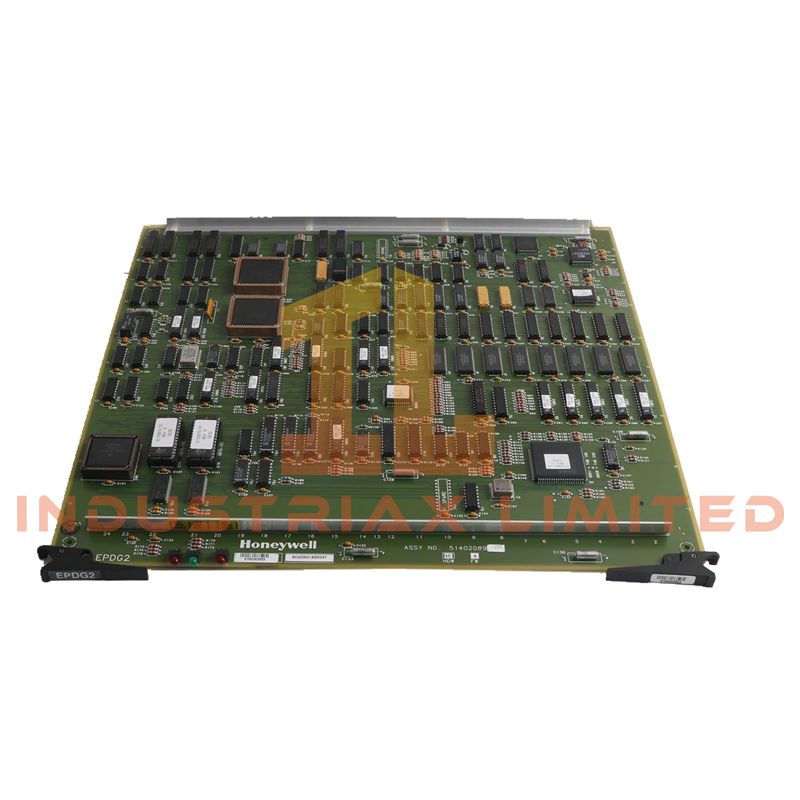

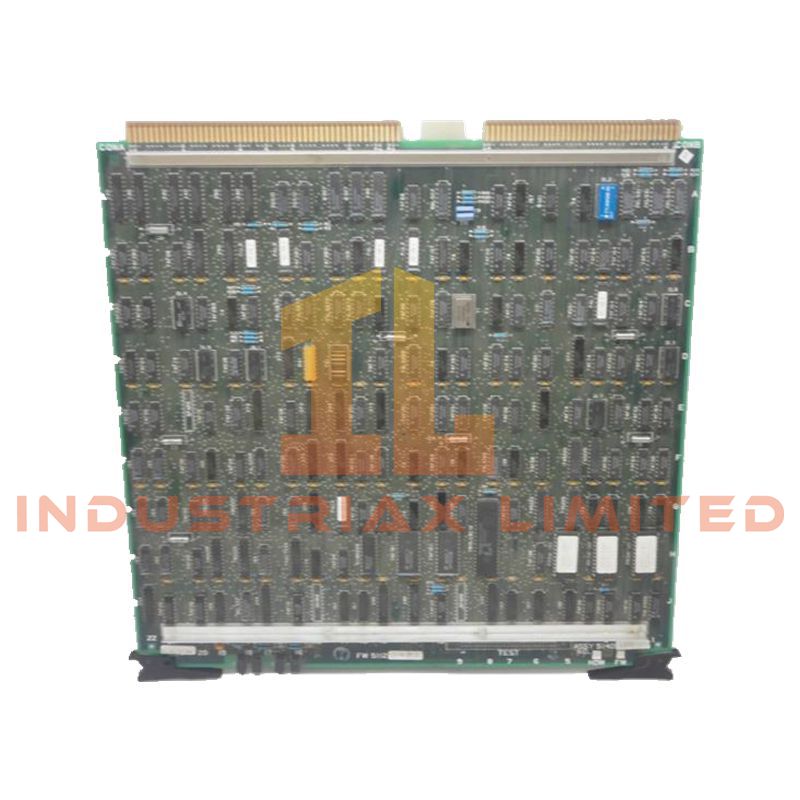

The Honeywell 51401291-100 is a high-performance digital input/output control board engineered for Honeywell Distributed Control Systems (DCS), including TDC 3000 and Experion PKS platforms. Designed for industrial environments, it provides precise acquisition of digital signals from field devices and reliable output control to relays, actuators, and other equipment. Its compact modular design ensures straightforward integration into standard DCS racks.
Technical Specifications
| Feature |
Specification |
| Input Channels |
16 digital inputs (dry contact, 24 VDC logic) |
| Output Channels |
16 digital outputs (relay drive, 24 VDC logic) |
| Input Voltage Range |
18–30 VDC |
| Output Current |
Up to 0.5 A per channel |
| Isolation |
Full channel-to-channel and channel-to-system isolation |
| Response Time |
<10 ms typical |
| Operating Temperature |
-20 °C to +60 °C |
| Storage Temperature |
-40 °C to +85 °C |
| Dimensions |
240 × 150 × 40 mm |
| Weight |
1.95 lbs |
Key Features
-
Dual-function design supporting both digital input and output
-
High electrical isolation for robust noise immunity
-
Fast response time suitable for real-time control applications
-
Compact, modular construction for easy installation and maintenance
-
Industrial-grade reliability for continuous operation in demanding environments
Applications
-
Oil & Gas: Monitoring valve positions and pump control
-
Chemical & Petrochemical: Supervising equipment and actuator control
-
Power Generation: Turbine and boiler monitoring and protection signals
-
Pharmaceutical & Food Processing: Accurate machine and process control
-
General Manufacturing: Automation and machine interface applications
FAQ
Q: Can this board be used with non-Honeywell systems?
A: The board is designed specifically for Honeywell TDC 3000 and Experion PKS. Integration with other systems requires interface validation.
Q: How should the board be stored before installation?
A: Store in a controlled environment between -40 °C and +85 °C to avoid moisture and dust exposure.
