Product Overview

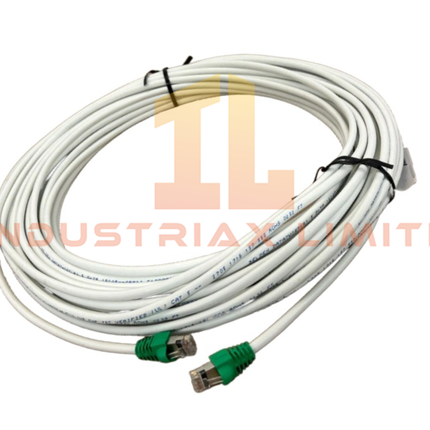

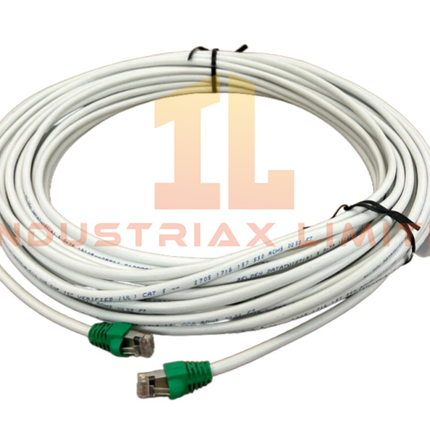

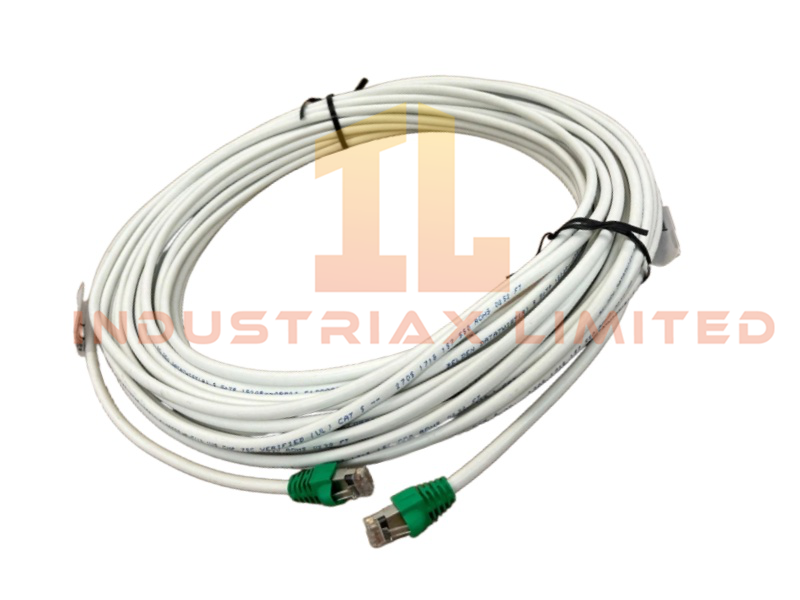

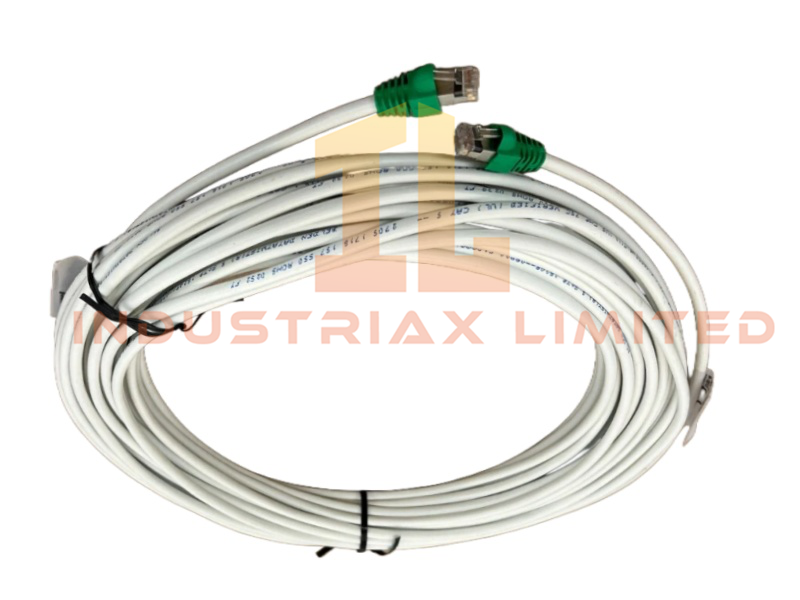

The 51305482-220 100‑Base‑T Cable from Honeywell’s Experion PKS series delivers stable Ethernet connectivity for demanding industrial networks. Honeywell designs this 20‑meter CAT5e cable with precise electrical characteristics that support 100 MHz bandwidth and 100 Mbps data transmission. Its compact 23×20×2cm packaging and 0.38kg weight ensure easy handling during installation in space‑limited control environments.
Technical Specifications
| Parameter |
Specification |
| Model |
51305482-220 |
| Series |
Experion PKS |
| Type |
100‑Base‑T CAT5e Cable |
| Length |
20 meters |
| Bandwidth |
100 MHz |
| Data Rate |
100 Mbps |
| Impedance |
100Ω ±15% |
| DC Resistance |
≤9.38Ω/100m |
| Capacitance |
≤5.6nF/100m |
| Voltage Rating |
30V AC |
| Tensile Strength |
Up to 25N |
| Operating Temperature |
–20°C to +60°C |
| Storage Temperature |
–40°C to +75°C |
| Humidity Range |
5–95% non‑condensing |
| Dimensions |
23 × 20 × 2 cm |
| Weight |
0.38 kg |
| Origin |
USA |
| System |
DCS |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Lead Time |
In Stock |
| MOQ |
1 |
Functional Capabilities
The 51305482-220 supports reliable Ethernet communication by maintaining strict impedance control and low DC resistance across its 20‑meter length. Honeywell engineers this cable to deliver stable 100 Mbps data transfer, ensuring consistent performance in high‑noise industrial environments. Its CAT5e construction enhances signal integrity and reduces attenuation over long distances.
Design & Performance
Honeywell builds the 51305482-220 with strong mechanical durability, allowing the cable to withstand 25N tensile force during installation. Its 30V AC rating supports safe operation in industrial cabinets. The cable performs reliably across –20°C to +60°C and resists humidity up to 95%, making it suitable for diverse climate conditions. Its compact dimensions simplify routing through dense wiring channels.
Applications & Compatibility
The 51305482-220 integrates seamlessly with Honeywell Experion PKS systems and supports industrial Ethernet networks in process control, building automation, and manufacturing. Engineers use this cable for EUCN communication, DCS networking, and panel‑level wiring where stable data transmission directly influences system reliability.
Key Advantages
-
Stable 100 Mbps data transmission across 20 meters
-
Strong 100Ω impedance control for signal integrity
-
Durable construction supporting 25N tensile force
-
Wide operating temperature range for harsh environments
-
Full compatibility with Honeywell Experion PKS systems
