Product Description

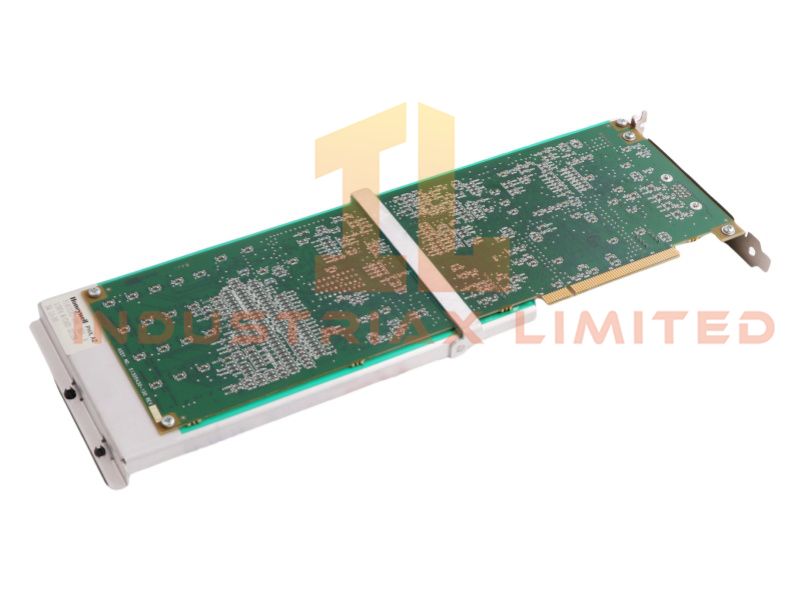

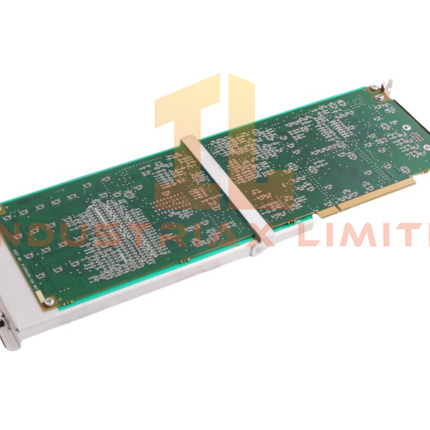

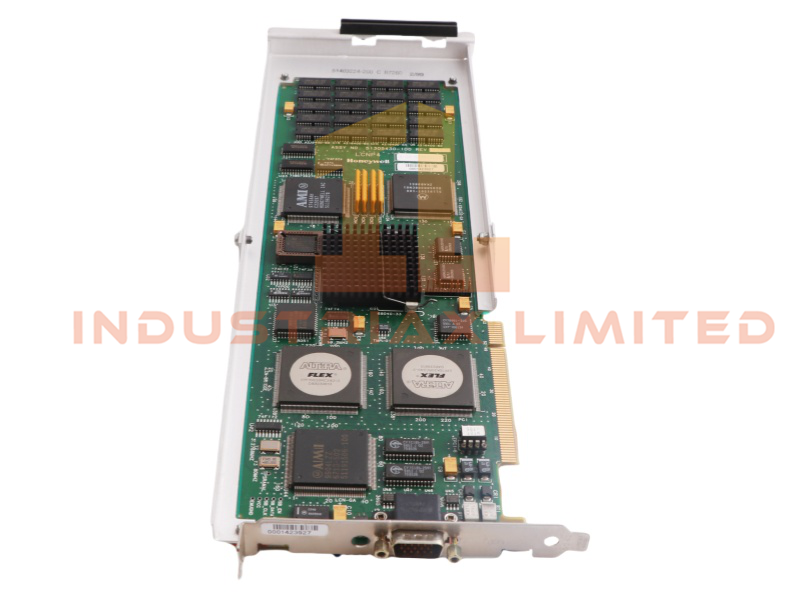

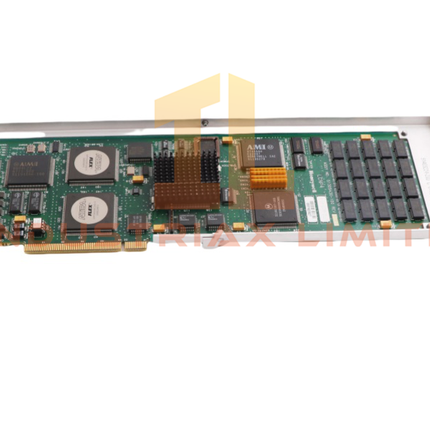

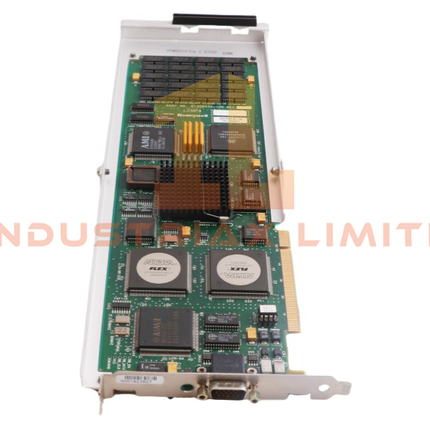

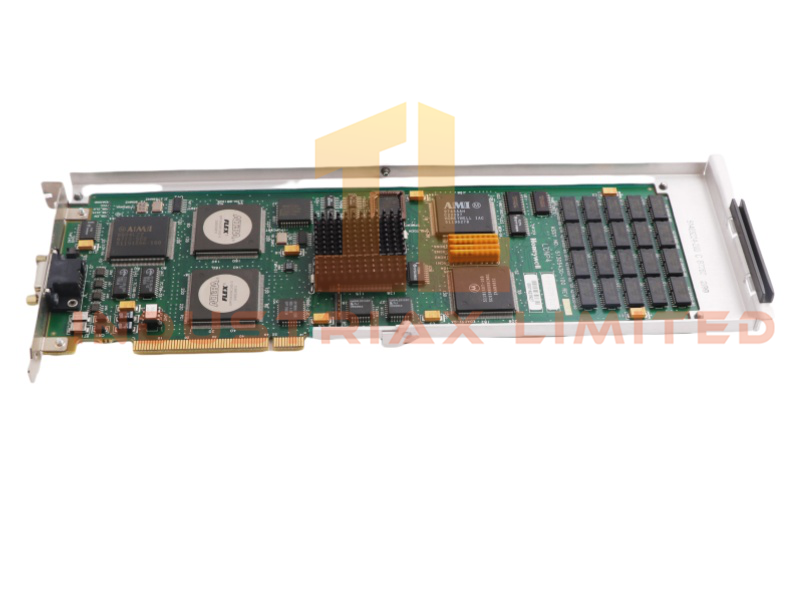

The Honeywell 51305430-100 Control/Interface Board is a precision-engineered module designed for Experion PKS Distributed Control Systems (DCS). Built for machinery protection and monitoring, this board ensures accurate vibration measurement and reliable communication in demanding industrial environments such as power generation and heavy process industries.
Technical Specifications
-
Model Number: 51305430-100
-
Manufacturer: Honeywell
-
Product Type: Control/Interface Board
-
Series: Experion PKS
-
Condition: Brand New
-
System Compatibility: DCS
-
Origin: USA
-
Weight: 0.32 kg
-
Dimensions: 2.2 × 35.2 × 13.2 cm
-
HS Code: 8537101190
-
MOQ: 1
-
Lead Time: In Stock
-
Communication Interface: Ethernet Router
-
Status: Active (not discontinued)
Functional Overview
The 51305430-100 board is designed for continuous monitoring of shaft vibration and axial displacement in turbines and compressors. Its rugged construction and advanced sensor technology make it suitable for long-term installation in critical machinery.
Key features include:
-
Stainless steel housing with IP68 protection for harsh environments.
-
Operating temperature range: -50°C to +125°C.
-
High-sensitivity eddy current sensor with ±1% linearity across 0.5–2.5 mm range.
-
Integral 5-meter cable with abrasion-resistant shielding for reliable signal transmission.
-
4–20 mA analog output for compatibility with most control systems.
-
Compliance with API 670 standards and ATEX/IECEx certifications.
-
Plug-and-play design for simplified installation and commissioning.
Application Scenarios
-
Steam and gas turbine vibration monitoring.
-
Large compressor shaft position measurement.
-
Condition-based maintenance in power plants.
-
Machinery protection in hazardous industrial environments.
FAQ
Q: Does the 51305430-100 meet international safety standards? A: Yes, it complies with API 670 and carries ATEX/IECEx certifications for hazardous locations.
Q: What type of output signal does the board provide? A: It delivers a 4–20 mA analog output, ensuring compatibility with most DCS and monitoring systems.
Q: Is the installation process complex? A: No, the plug-and-play design reduces commissioning time for both new and retrofit applications.
