Description
Product Overview

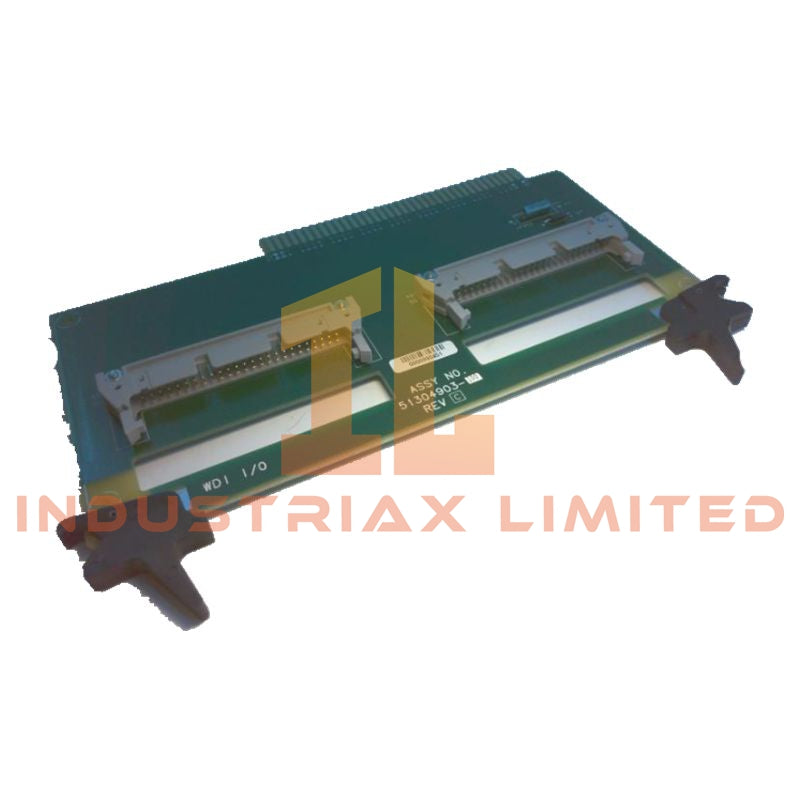

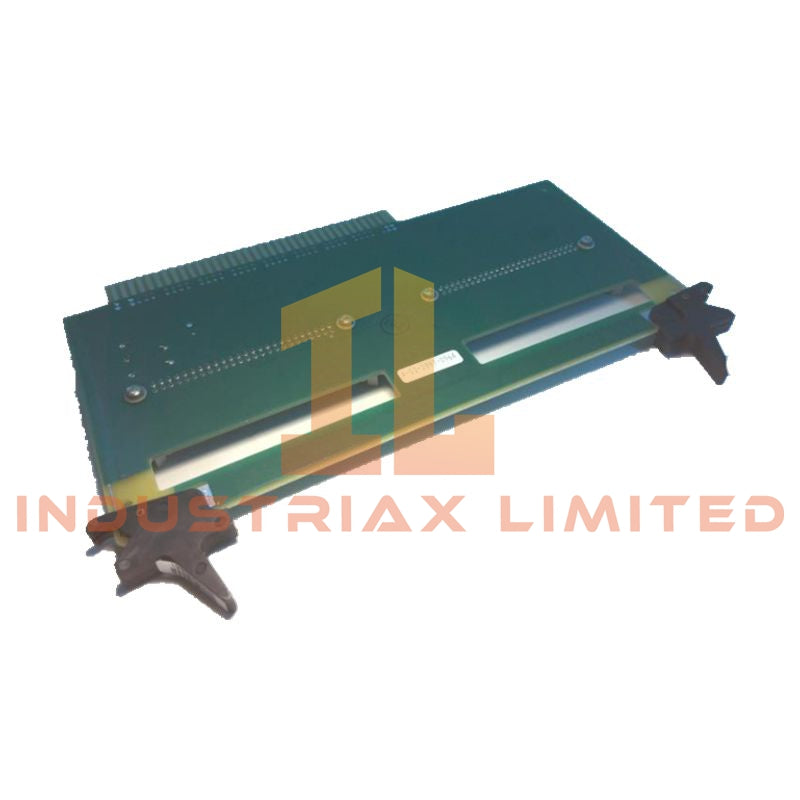

Honeywell 51304903‑100 (REV C) is a compact and reliable Input/Output (I/O) module engineered for the Honeywell TDC 3000 distributed control system. It provides seamless integration between field devices and system controllers, supporting both analog and digital signals. The REV C revision offers enhanced stability, compatibility, and durability for continuous industrial operations, ensuring high reliability in electrically noisy environments.
Technical Specifications
| Feature |
Specification |
| Function |
Interfaces field devices with control system logic |
| Signal Support |
Analog and digital inputs/outputs |
| Dimensions |
215 × 159 × 125 mm |
| Weight |
0.24 lbs |
| Certifications |
CE, TUV, UL508, CSA |
| Design Version |
REV C – improved stability and compatibility |
| Operating Environment |
Industrial automation, electrically noisy conditions |
Key Features
Stable Data Communication
Ensures reliable and consistent data exchange between sensors, actuators, and TDC 3000 controllers.
Dual Signal Handling
Supports both analog and digital I/O, enabling flexible system integration for a wide range of field devices.
Enhanced Durability
Engineered for long service life in demanding industrial environments.
Improved Compatibility
REV C revision provides enhanced integration and reliability with Honeywell TDC 3000 systems.
Compact Installation
Small form factor allows easy mounting within control cabinets and racks.
Applications
-
Linking field I/O devices to Honeywell TDC 3000 distributed control systems
-
Handling both analog sensors and digital actuators in a single module
-
Replacing older or worn I/O modules for system upgrades
-
Integration in electrically noisy industrial environments requiring high reliability
FAQ
Is the 51304903‑100 compatible with other PLCs or DCS systems?
No, this module is specifically designed for Honeywell TDC 3000 systems and is not compatible with third-party platforms.
What does REV C indicate?
REV C represents an improved version of the module, with enhanced stability and compatibility for TDC 3000 installations.
What types of signals can this module handle?
It supports both analog and digital signals, providing flexible integration for various field devices.
How large is the module?
It measures 215 × 159 × 125 mm and weighs approximately 0.24 lbs, allowing compact installation in control cabinets.
