Product Description

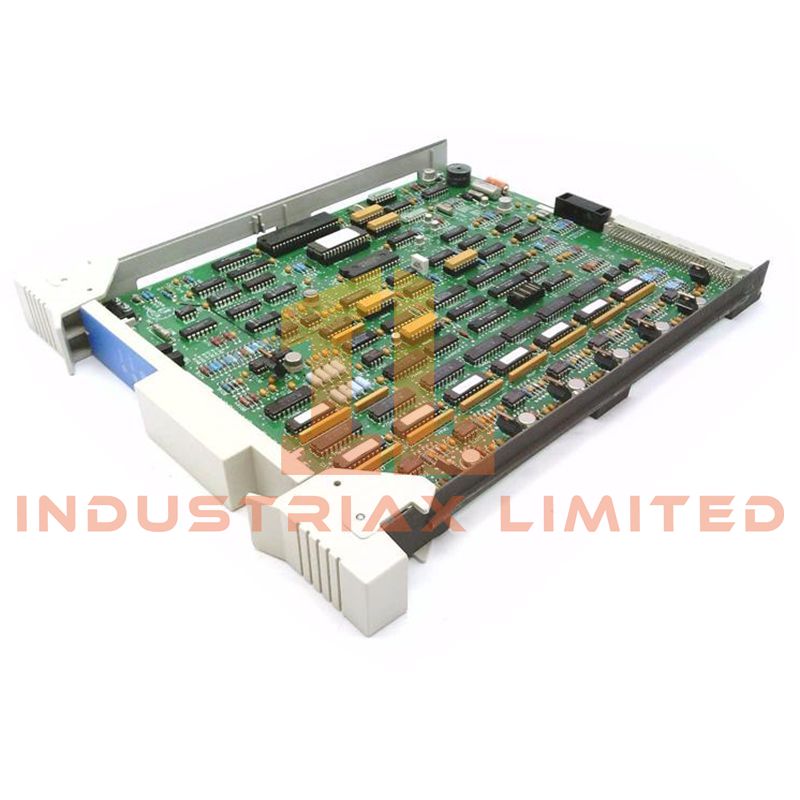

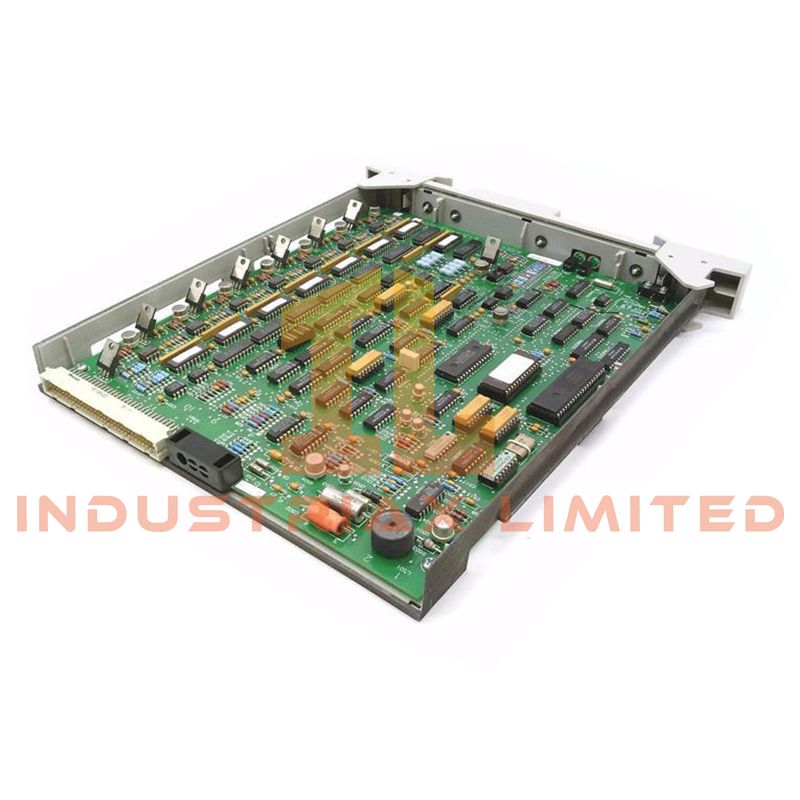

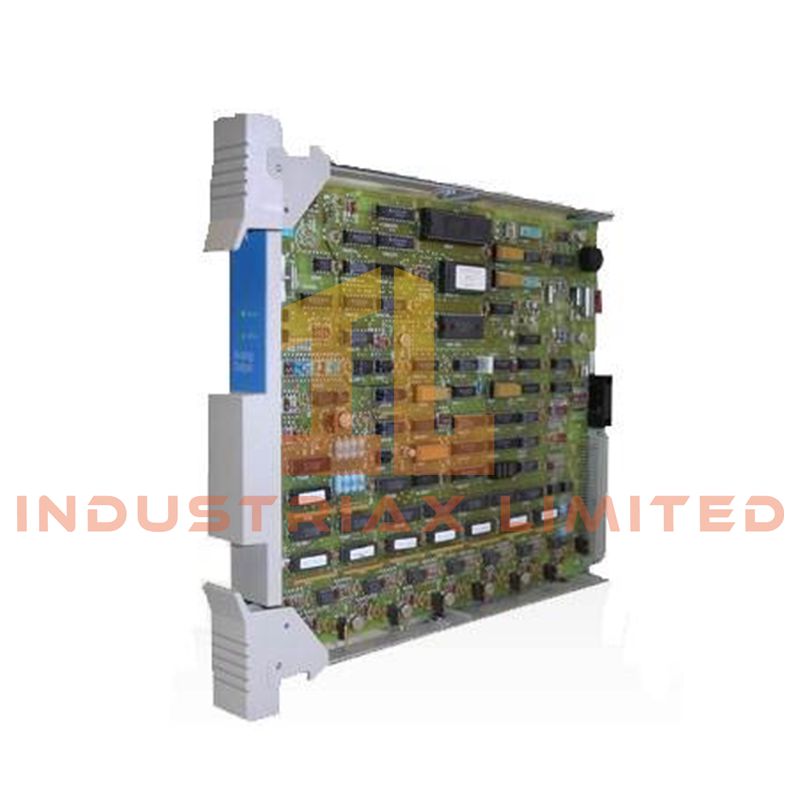

The Honeywell 51304483-100 is a high-density analog input termination module engineered for seamless integration with Honeywell TDC 3000 and Experion PKS distributed control systems. Designed for industrial environments, it provides precise signal conditioning and reliable data acquisition from a variety of field sensors.
Technical Specifications
-
Model / Part Number: 51304483-100
-
Module Type: Analog Input Termination Module
-
Channels Supported: Up to 16 analog input channels
-
Signal Compatibility: 4–20 mA current, 0–10 V voltage, thermocouples, RTDs
-
Operating Voltage: 24 VDC (logic level)
-
Operating Temperature: -20°C to +70°C
-
Storage Temperature: -40°C to +85°C
-
Dimensions: 135 × 25 × 200 mm
-
Weight: 1.5 kg
-
System Integration: Compatible with Honeywell TDC 3000 and Experion PKS platforms
-
Diagnostics: Supports signal integrity monitoring and fault detection
Key Features
-
Consolidates multiple analog signals for efficient input handling
-
Supports current, voltage, and temperature sensors in one module
-
Industrial-grade reliability for extreme temperature conditions
-
Direct integration with Honeywell DCS for smooth system operation
-
Provides monitoring and diagnostics for field signal accuracy
Applications
-
Process control in oil & gas, chemical, and power industries
-
Monitoring and managing temperature, pressure, and flow measurements
-
High-density analog input environments requiring compact signal termination
FAQ / Additional Information
Q: Can it handle thermocouple inputs?
A: Yes, the module supports standard thermocouples along with RTDs, 4–20 mA, and 0–10 V signals.
Q: Is it compatible with Experion PKS?
A: Yes, the module is fully supported on both Honeywell TDC 3000 and Experion PKS systems.
Q: What is the maximum number of analog inputs?
A: Up to 16 channels per module.
