Description
Overview

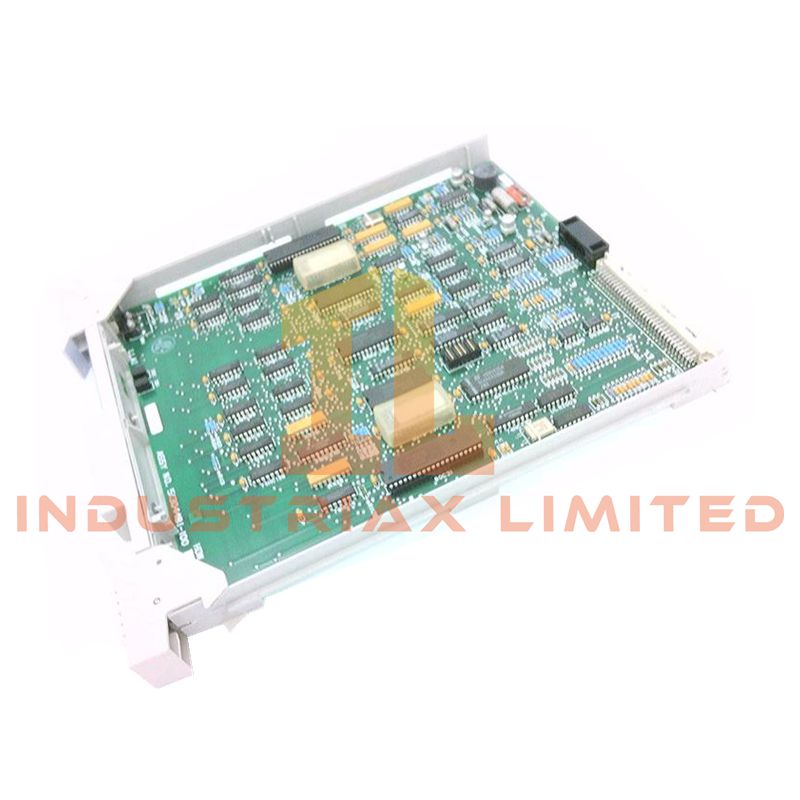

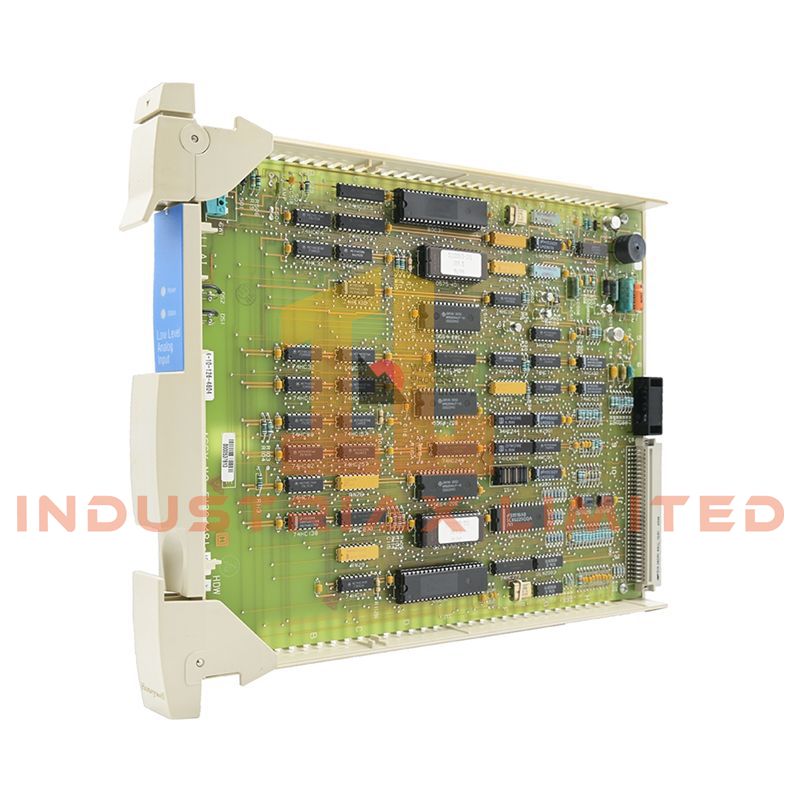

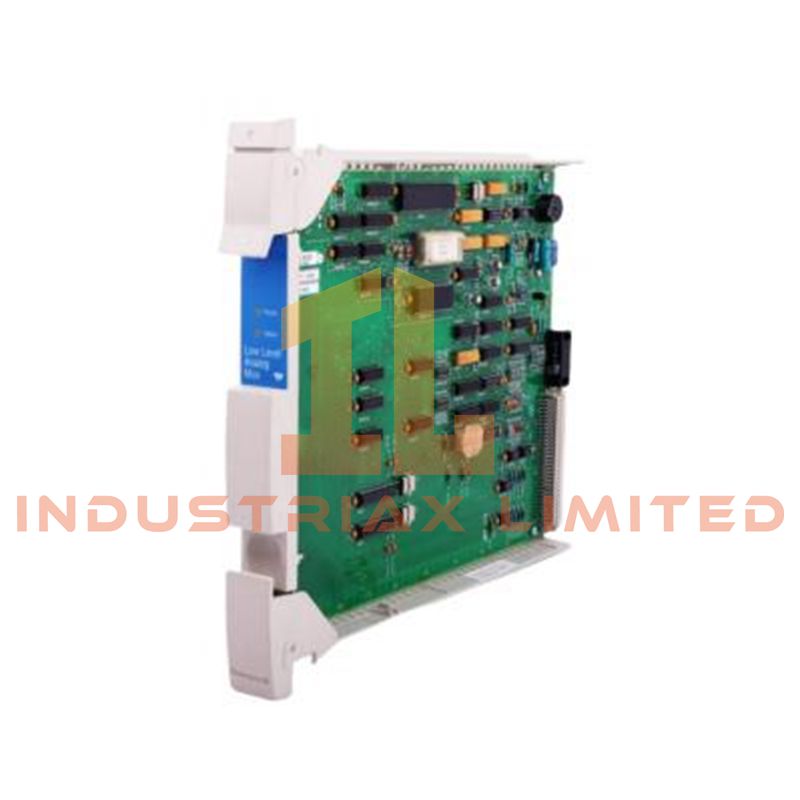

The Honeywell 51304481-100 (MC-TAMR03) is a high-reliability termination module engineered for TDC 3000 and Experion PKS distributed control systems. It terminates and routes multiple analog and digital input/output signals, ensuring stable communication between field devices and the control processor. The compact design is rugged and suited for continuous operation in demanding industrial environments.
Technical Specifications
| Specification |
Details |
| Model / Part Number |
51304481-100 (MC-TAMR03) |
| Signal Types |
Analog and digital I/O, configurable per system requirements |
| Channels |
Multi-channel support, typically 16 or more |
| Operating Voltage |
24 VDC |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
| Dimensions |
135 × 25 × 200 mm |
| Weight |
1 lbs |
| System Compatibility |
Honeywell TDC 3000, Experion PKS |
Key Features
-
High-density multi-channel design saves rack space
-
Reliable signal termination and routing minimizes data loss
-
Industrial-grade temperature tolerance for harsh environments
-
Seamless integration with Honeywell DCS platforms
-
Built-in diagnostics for easier maintenance and monitoring
Applications
-
Distributed Control Systems (DCS) in oil & gas, chemical, and power industries
-
Signal termination and routing for analog/digital sensors and actuators
-
High-reliability automation environments requiring continuous operation
FAQ / Common Questions
Q: What types of signals does this module support?
A: Supports both analog and digital I/O, configurable depending on system needs.
Q: How does this module differ from other Honeywell TAM series modules?
A: The MC-TAMR03 51304481-100 offers higher channel density and wider industrial temperature range, ideal for critical control environments.
