Description
Product Overview

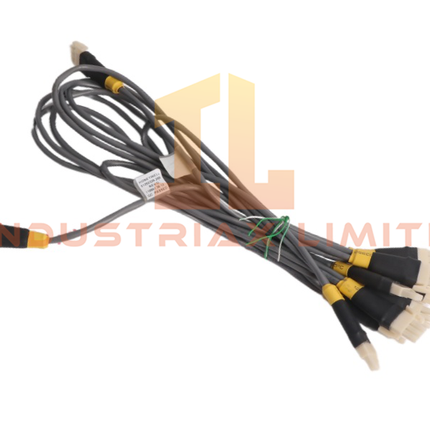

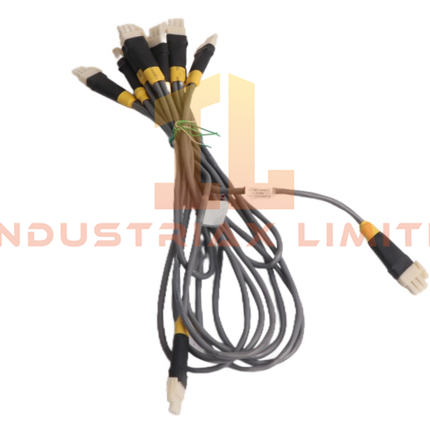

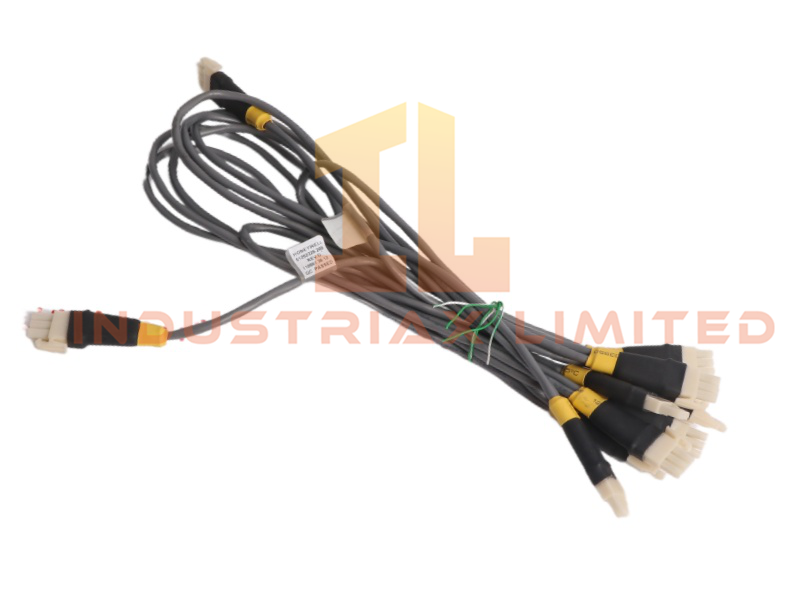

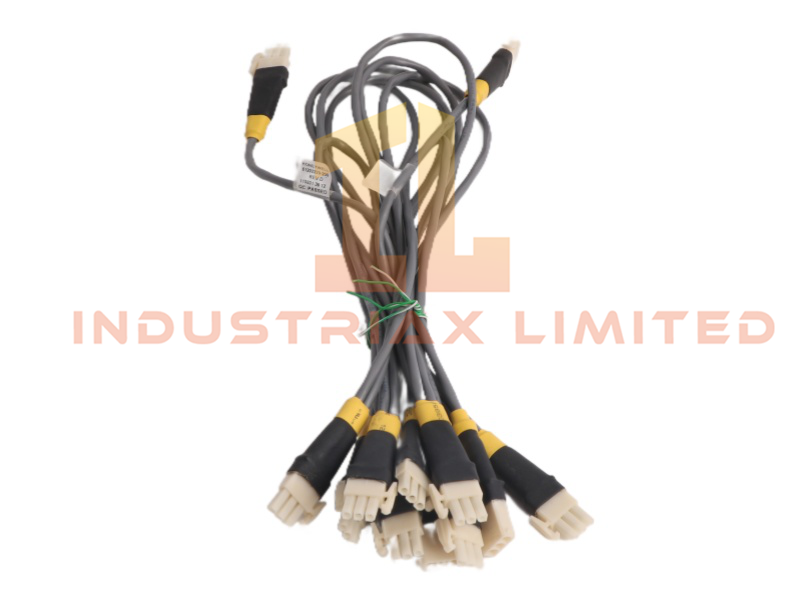

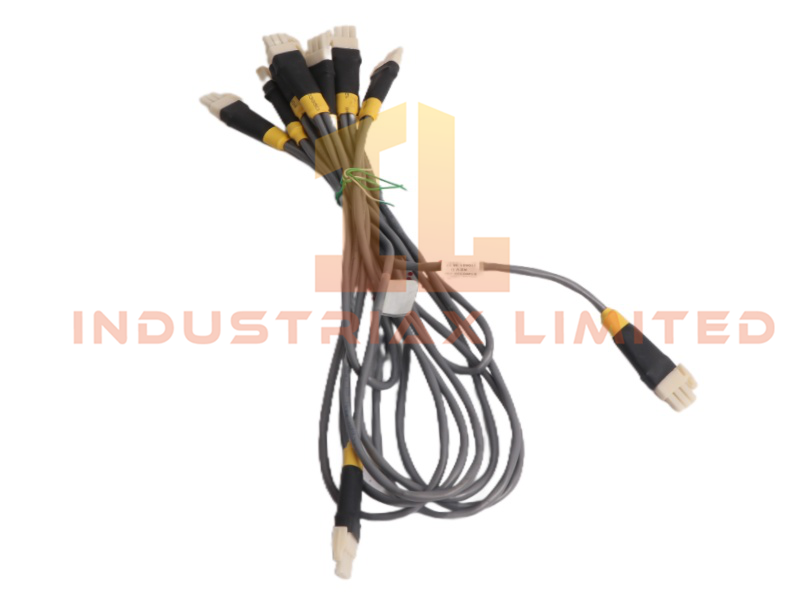

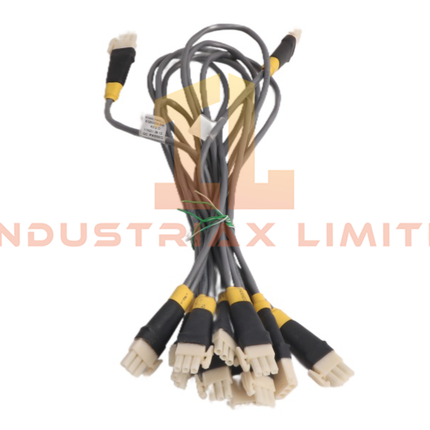

The Honeywell 51202329-802 I/O Link Cable delivers precise signal acquisition for Experion PKS systems. The module handles voltage inputs from −10V to +10V and current inputs from 4mA to 20mA with 16‑bit resolution. Each channel maintains ±0.1% full‑scale accuracy, ensuring consistent measurement quality in demanding industrial environments. The compact 7×14×14.5 cm design and 0.4 kg weight support efficient installation inside DCS cabinets.
Technical Specifications
| Parameter |
Specification |
| Model Number |
51202329-802 |
| Category |
I/O Link Cable |
| Manufacturer |
Honeywell |
| System |
DCS / Experion PKS |
| Channels |
16 Analog Inputs |
| Input Range |
−10V to +10V, 4mA to 20mA |
| Resolution |
16‑bit |
| Accuracy |
±0.1% Full Scale |
| Sampling Rate |
Up to 100 kHz |
| Communication |
Modbus RTU / TCP |
| Power Supply |
24 VDC |
| Power Consumption |
10W |
| Weight |
0.4 kg |
| Dimensions |
7 × 14 × 14.5 cm |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
Brand New |
| MOQ |
1 |
Design & Performance
The Honeywell 51202329-802 integrates high‑precision analog acquisition with efficient digital communication. The module supports fast sampling up to 100 kHz, enabling responsive monitoring in dynamic processes. The rugged enclosure withstands vibration levels of 5g and shock forces of 50g, ensuring stable operation in harsh industrial zones. The 24 VDC power design keeps energy consumption low while maintaining reliable performance across all 16 channels.
Environmental & Mechanical Characteristics
The Honeywell 51202329-802 operates confidently within a −20°C to 60°C temperature range. The module tolerates humidity levels up to 95% non‑condensing, supporting long‑term use in challenging field conditions. The compact footprint simplifies panel layout, while the 0.4 kg weight improves handling during installation and maintenance tasks.
Installation & Integration
Technicians integrate the Honeywell 51202329-802 quickly due to its clear channel layout and standardized communication protocols. The module supports Modbus RTU and TCP, enabling flexible connectivity across diverse automation architectures. The design aligns with Experion PKS standards, ensuring smooth compatibility with existing Honeywell DCS infrastructure.
Applications & Compatibility
The Honeywell 51202329-802 supports a wide range of industrial and commercial applications, including:
-
Process monitoring and control loops
-
Laboratory automation and measurement systems
-
Machine automation and equipment diagnostics
-
Building and infrastructure automation
-
High‑speed data acquisition platforms
Its combination of 16‑bit resolution, multi‑range input support, and robust construction ensures dependable performance across complex automation environments.
