Description

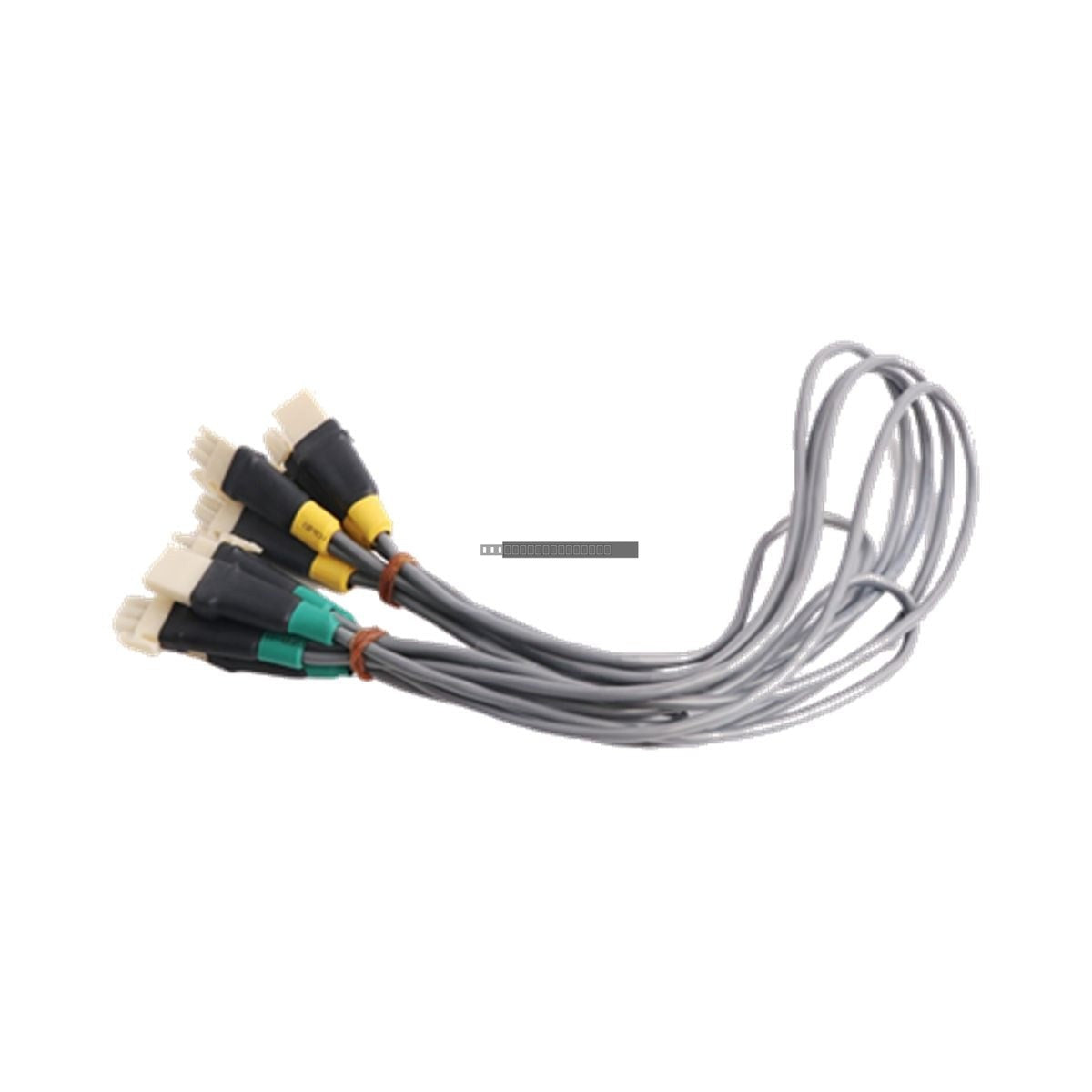

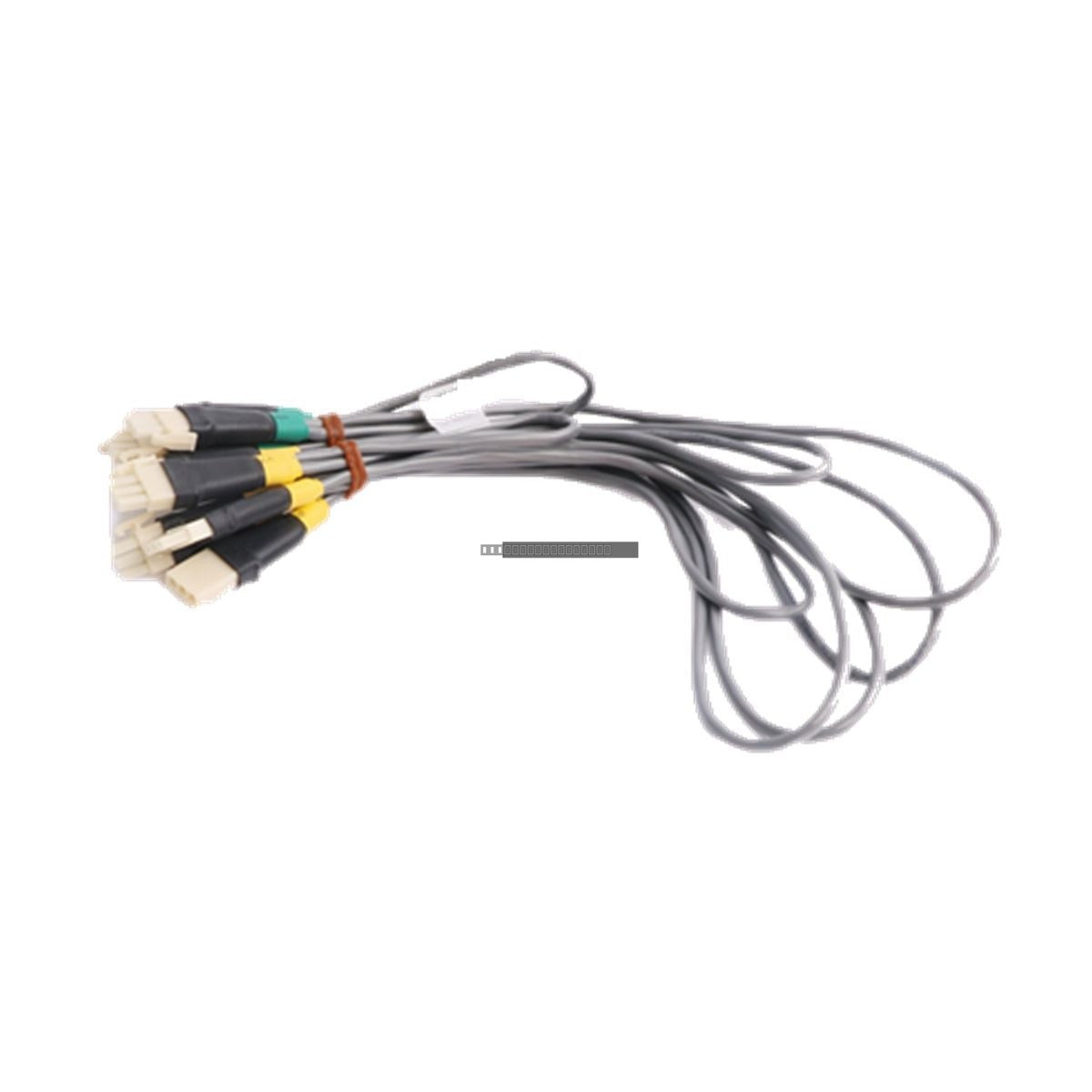

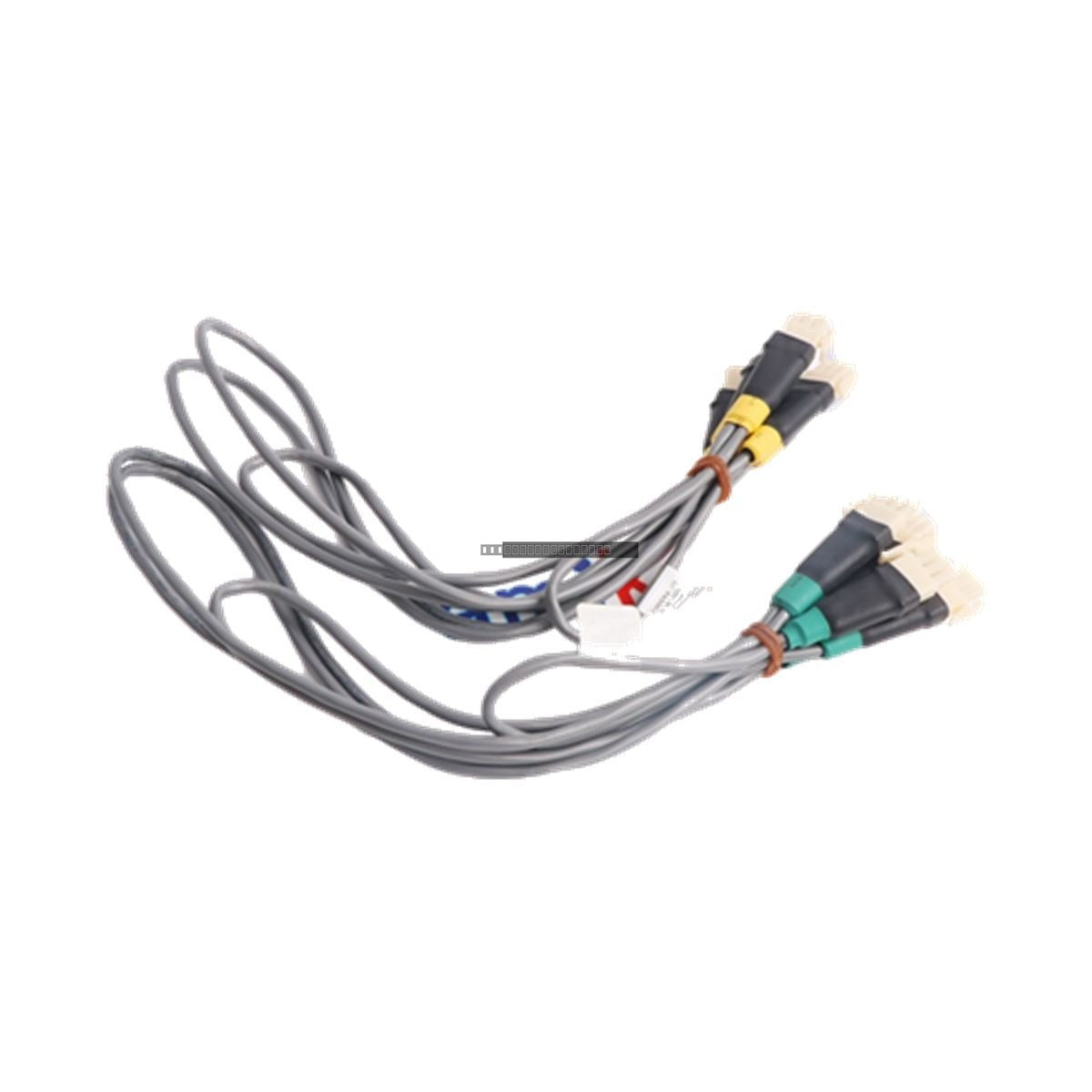

The Honeywell 51202329-102 is a specialized I/O link cable designed for high-reliability industrial communication and power distribution within Honeywell automation systems. This cable is engineered to maintain signal integrity while supporting power delivery for field-level I/O devices.
Features
- Optimized for high-speed data transmission up to 230.4 kbps.
- Robust 4-core conductor configuration including dedicated power, ground, and dual signal lines (C/Q and L+).
- Insulation rated for a broad voltage range of 15–60 V DC.
- High current capacity supporting up to 4 A per channel.
- Flexible design with a bending radius of at least 7.5 times the cable diameter for easier installation in tight enclosures.
Technical Specifications
| Product Model |
51202329-102 |
| Cable Type |
I/O Link Cable |
| Max Data Rate |
230.4 kbps |
| Conductors |
4-core |
| Current Rating |
Max 4 A per channel |
| Voltage Insulation |
15–60 V DC |
| Operating Temperature |
-25 degC to +70 degC |
| Manufacturer |
Honeywell |
Installation Guidelines
- Ensure the cable is routed away from high-voltage power lines or heavy electromagnetic interference (EMI) sources to prevent signal degradation.
- Maintain the minimum bending radius of 7.5 times the cable diameter during installation to avoid internal conductor stress or insulation damage.
- Verify that all connections are secure and that the polarity for the +24V DC power and GND lines is strictly followed before energizing the system.
- Inspect the cable jacket for any signs of wear or environmental damage during routine maintenance checks.
FAQ
What is the primary application for this cable? This cable is designed for I/O link communication, facilitating both data exchange and power supply between field devices and the control system.
Can this cable be used in extreme temperatures? The cable is rated for operation between -25 degC and +70 degC, making it suitable for most standard industrial environments.
