Description
Overview

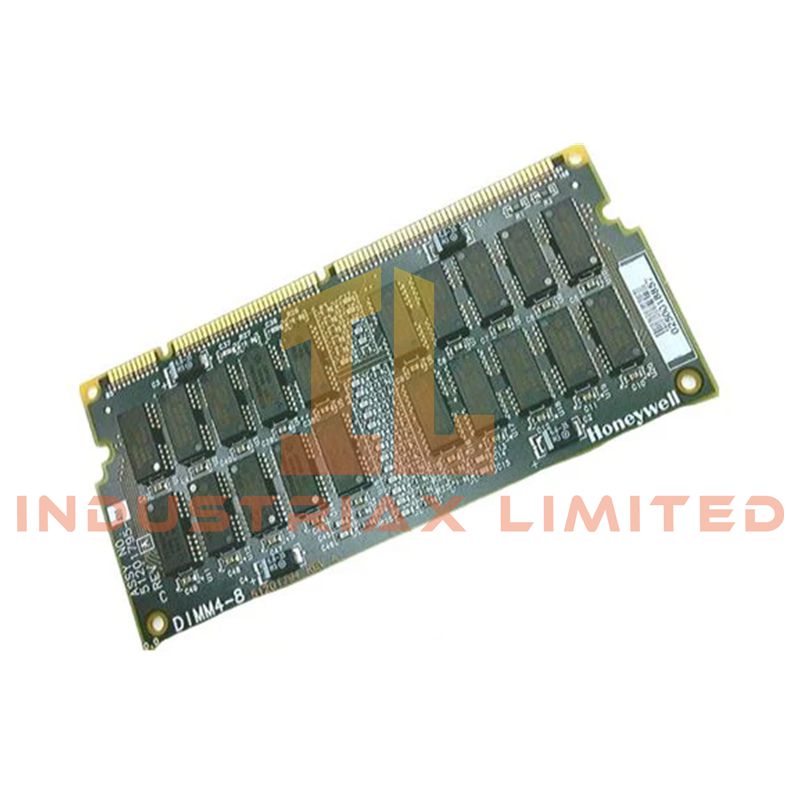

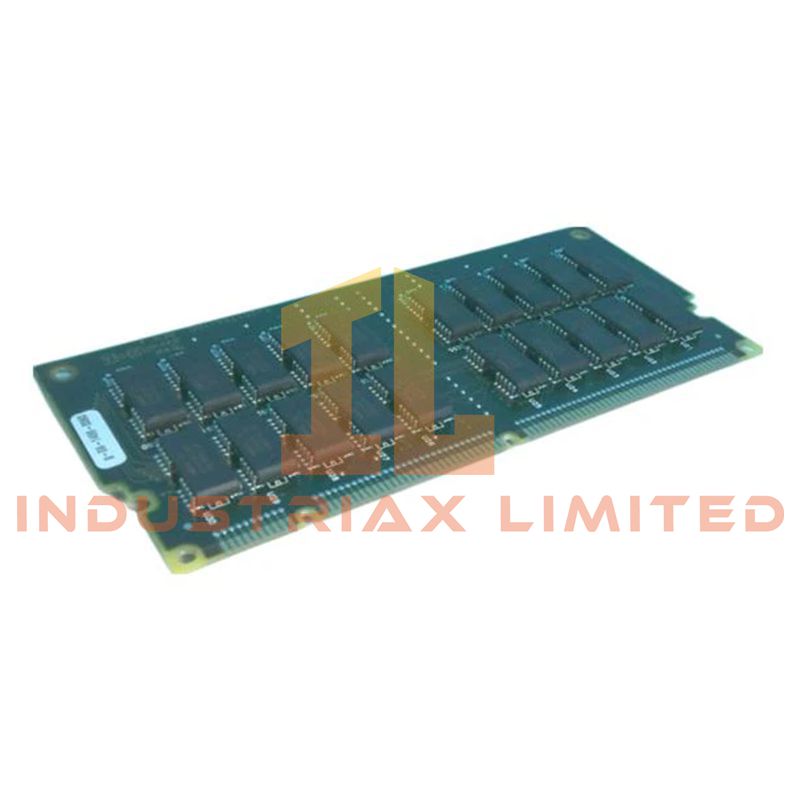

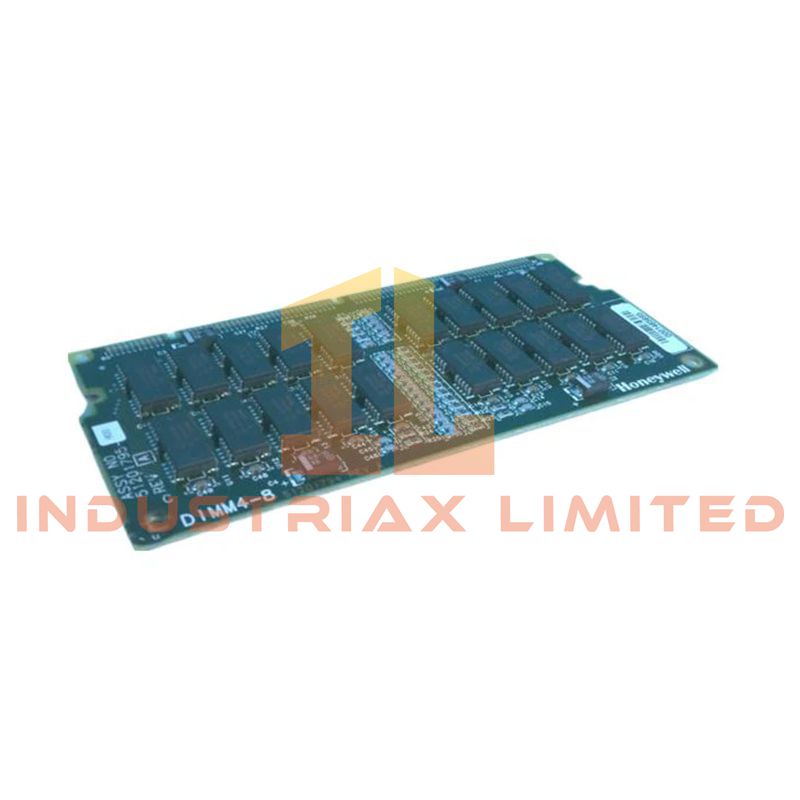

The Honeywell 51201795‑800 is a high-performance processor circuit board designed for Honeywell TDC 2000 and TDC 3000 Distributed Control Systems (DCS). It combines robust CPU processing with integrated memory to execute control logic and manage process data reliably. Engineered for demanding industrial environments, this module delivers stable, continuous operation in chemical plants, power generation facilities, and manufacturing automation systems.
Technical Specifications
| Specification |
Details |
| Manufacturer |
Honeywell |
| Part Number |
51201795‑800 |
| Module Type |
Processor Circuit Board |
| Processor |
Motorola 68020 CPU |
| Memory |
8 MB DIMM4‑8 |
| Dimensions |
216 × 160 × 30 mm |
| Weight |
0.33 lbs |
| Power Supply |
24 VDC typical |
| Operating Temperature |
0 – 55 °C |
| Output Signals |
Digital/analog compatible with Honeywell DCS |
| System Compatibility |
Honeywell TDC 2000 / TDC 3000 |
Key Features
-
Reliable Processing: Motorola 68020 CPU ensures smooth operation for complex control tasks.
-
Integrated Memory: 8 MB DIMM provides ample storage for process data and applications.
-
Compact Form Factor: Designed to fit directly into Honeywell DCS racks.
-
Industrial Durability: Built to withstand continuous operation in harsh environments.
-
Seamless System Integration: Fully compatible with Honeywell TDC 2000/3000 DCS architectures.
Applications
-
Process Automation: Control and monitoring of chemical, oil & gas, and manufacturing operations.
-
Power Generation: Managing turbine systems and plant-wide control tasks.
-
Industrial Safety: Supporting interlocks, critical monitoring, and fail-safe operations.
-
Automation Backbone: Provides computing and memory support for Honeywell DCS systems.
FAQ
Q: What CPU does the 51201795‑800 use?
A: The module is powered by a Motorola 68020 CPU for reliable industrial performance.
Q: How much memory is integrated?
A: It includes 8 MB DIMM4‑8 memory suitable for process data storage.
Q: Is this board compatible with Honeywell TDC 3000 systems?
A: Yes, it is fully compatible with both TDC 2000 and TDC 3000 DCS systems.
Q: Can it operate continuously in industrial conditions?
A: Yes, it is designed for continuous operation within 0–55 °C industrial temperature ranges.
