Product Description

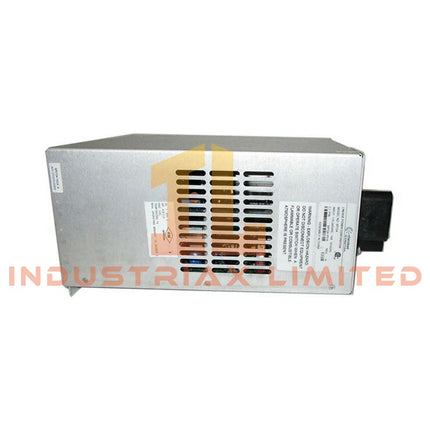

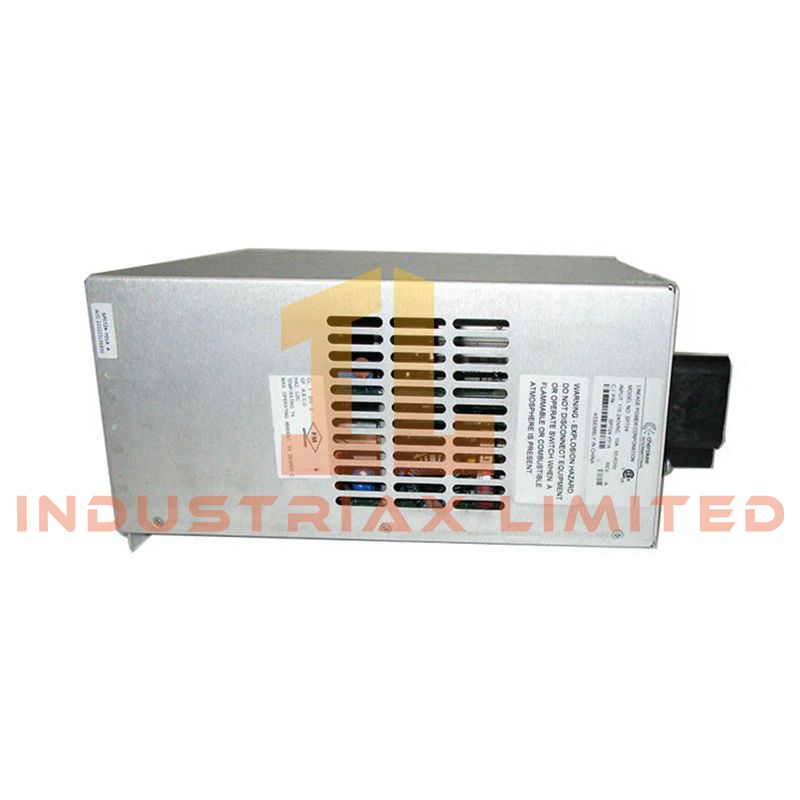

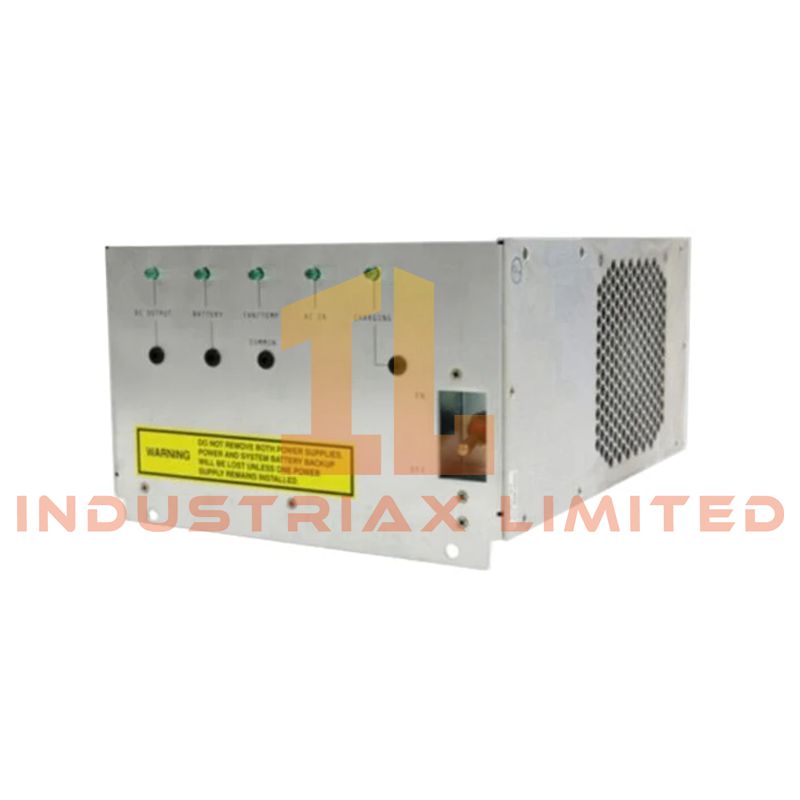

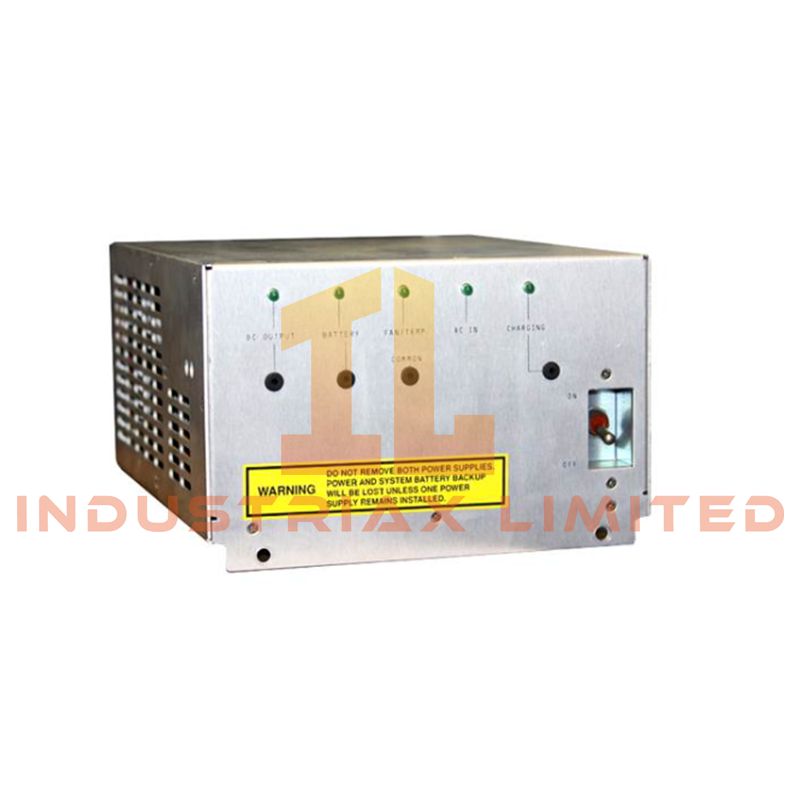

The Honeywell 51198947-100F is a robust power supply module engineered for Honeywell Distributed Control Systems (DCS), including TDC 3000 and Experion platforms. Designed for high-demand industrial environments, it provides stable, continuous 24 VDC power to controllers, I/O devices, and essential system components.
Engineered for redundancy, this module ensures uninterrupted operation even under fault conditions. Integrated EMI/RFI filters protect connected equipment from electrical noise, maintaining reliable performance in electrically harsh settings. Its compact, rugged design allows installation in constrained spaces while withstanding vibration, temperature extremes, and mechanical stress.
Technical Specifications
| Attribute |
Specification |
| Manufacturer |
Honeywell |
| Model / Part Number |
51198947-100F |
| Product Type |
DCS Power Supply Module |
| Input Voltage |
100–240 VAC |
| Frequency Range |
47–63 Hz |
| Output Voltage |
24 VDC |
| Output Current |
Up to 100 A |
| Output Power |
0.565 kW |
| Auxiliary Outputs |
25.5 VDC, 54.6 VDC (depending on configuration) |
| Output Current Ratings |
20 A, 1 A, 0.035 A (multi-output) |
| Operating Temperature |
-40°C to 75°C |
| Storage Temperature |
-40°C to 85°C |
| Weight |
2 kg |
| Certifications |
UL / CSA |
Key Features
-
Continuous 24 VDC supply with high reliability
-
Supports redundant configurations for mission-critical operation
-
Wide input voltage and frequency tolerance for global deployment
-
EMI/RFI protection for sensitive industrial electronics
-
Compact, durable design suitable for harsh environments
-
Multiple DC outputs for versatile system integration
Applications
Suitable for oil & gas facilities, chemical plants, power generation, and other industrial environments requiring reliable DCS power. Ideal for use in controller racks, I/O cabinets, and redundant power systems.
FAQ
Q: Can this module operate in redundant configurations?
A: Yes, it is designed for seamless integration into redundant power setups, ensuring uninterrupted operation.
Q: What environments is this module rated for?
A: It operates reliably in temperatures from -40°C to 75°C and is resistant to electrical noise, vibration, and mechanical stress.
Q: Are there other Honeywell models with similar outputs?
A: Comparable models include Honeywell 51198947-200 and 51198947-150, which offer different current ratings or voltage configurations for specific system needs.
