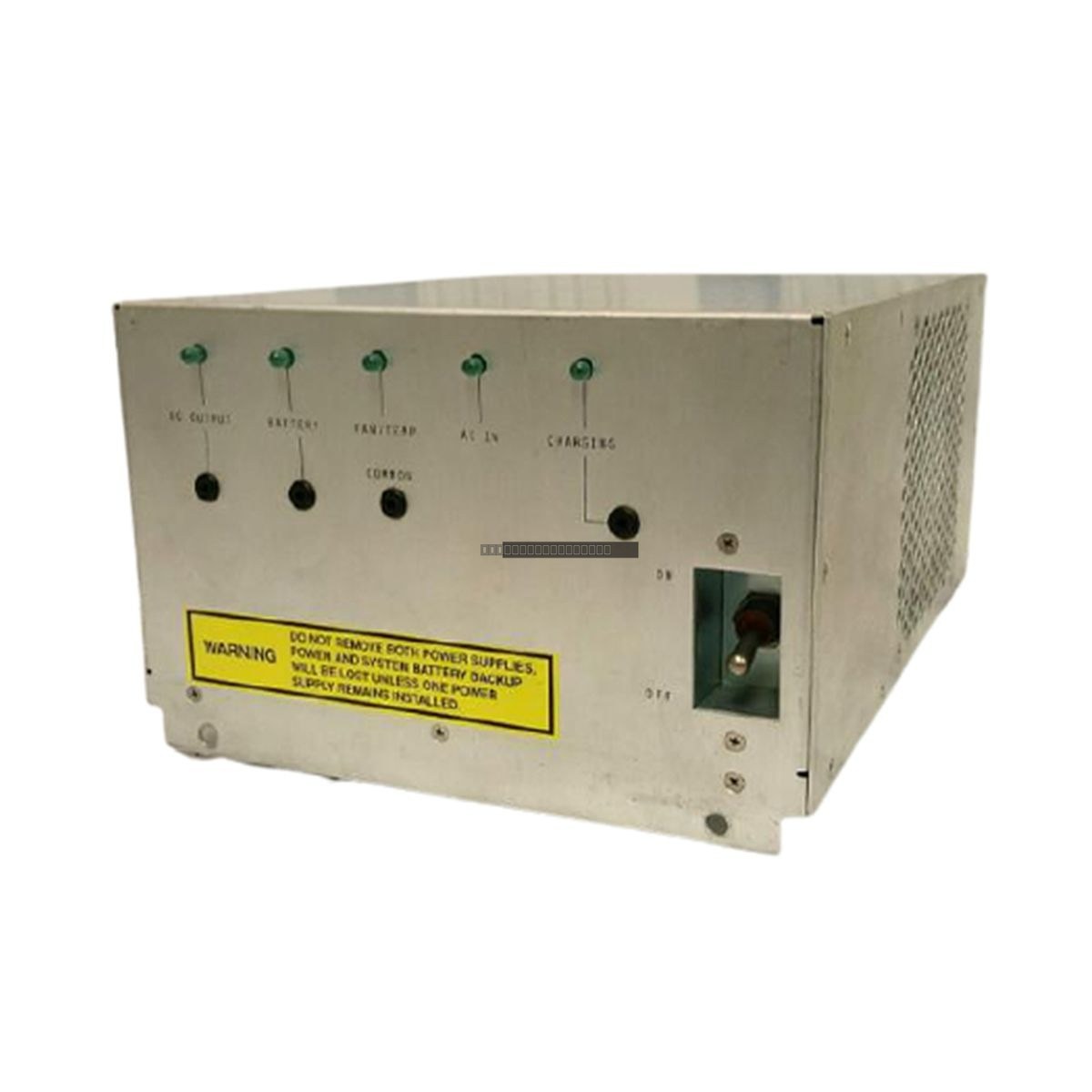

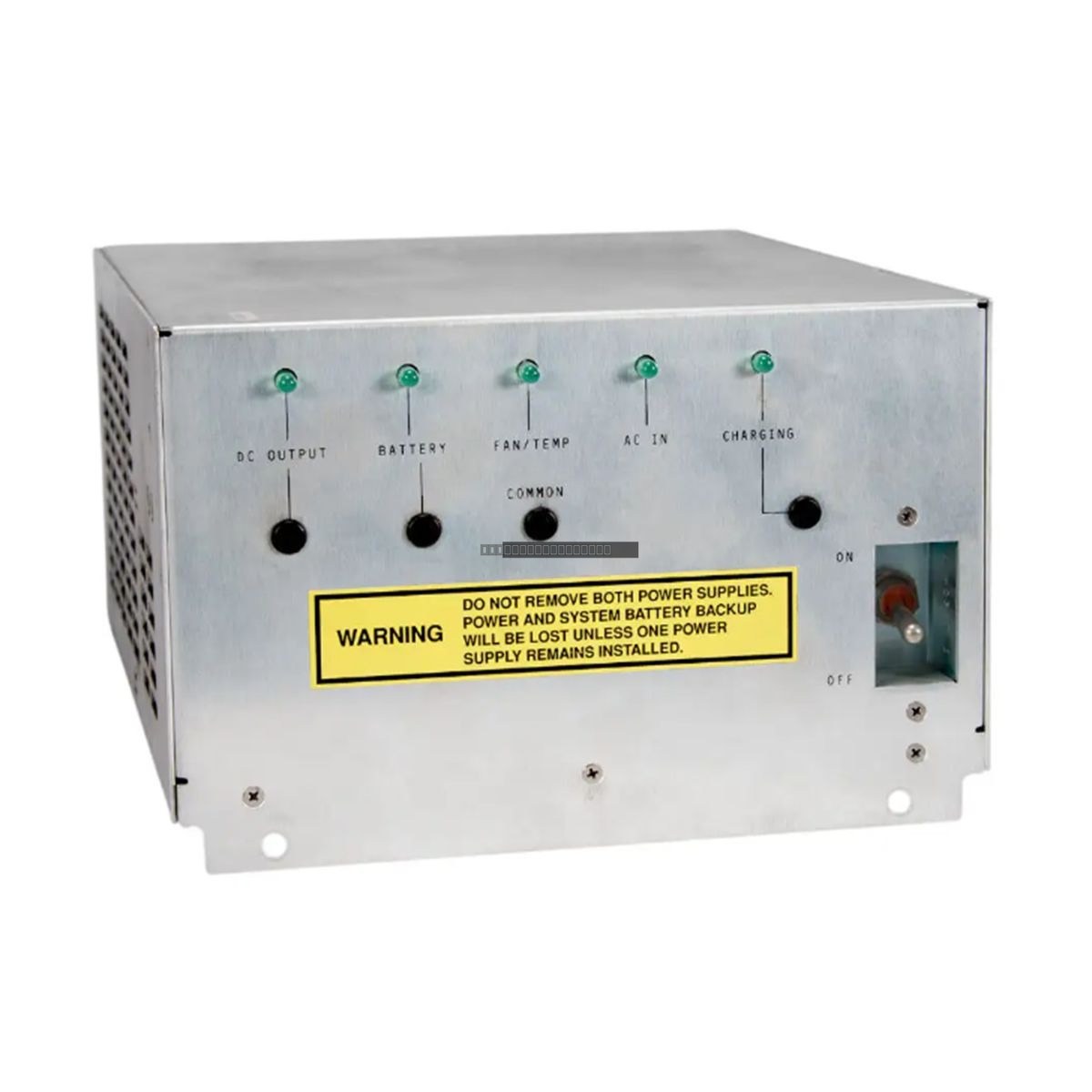

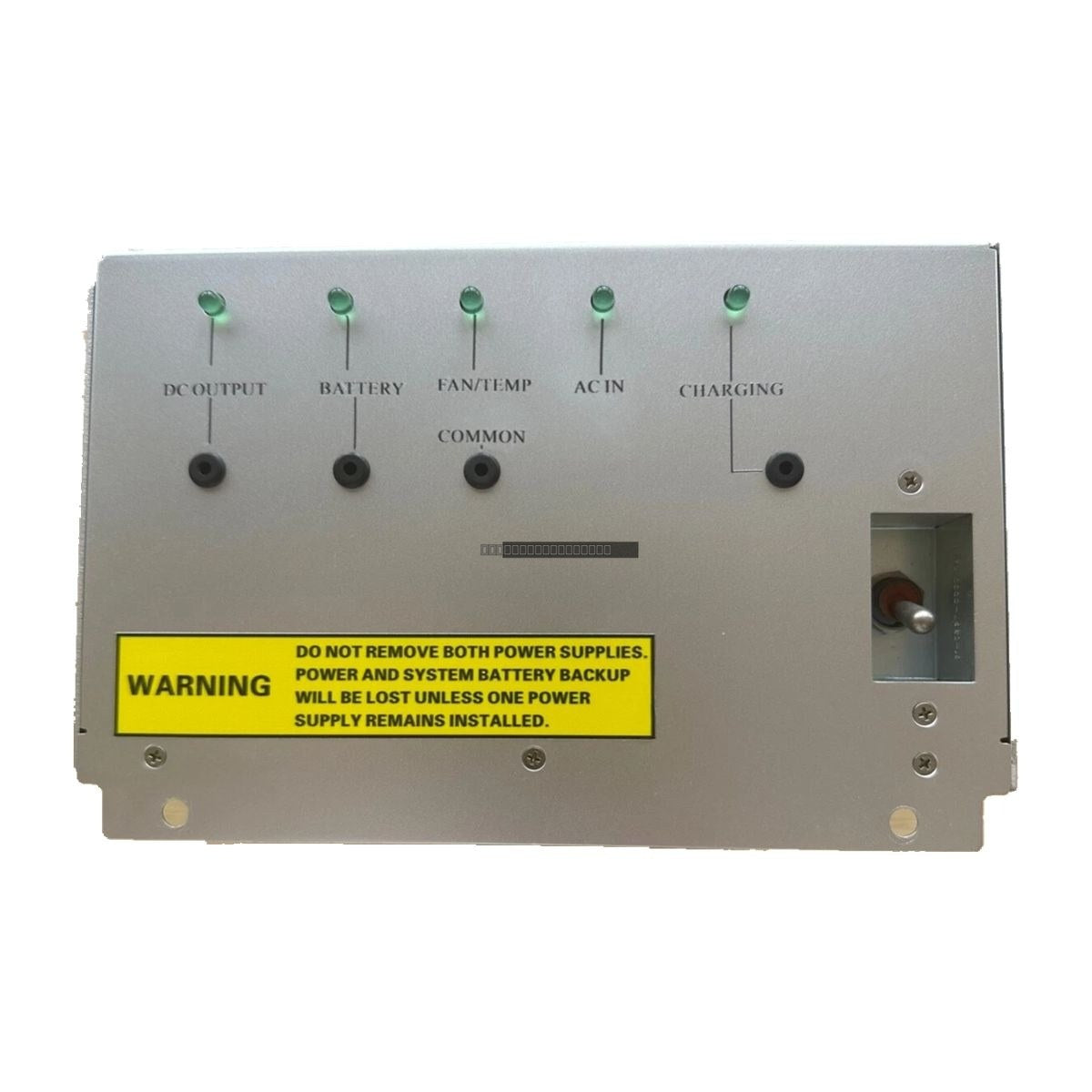

The Honeywell 51109684-100 is a high-performance HPM power supply module designed for reliable power distribution within Honeywell distributed control systems (DCS) and process automation environments. Providing a 550 W output capacity, this unit ensures stable, regulated DC power for HPM controllers and associated I/O assemblies, which is essential for maintaining uptime in mission-critical industrial applications.
Features
-
Universal Input Support: Operates on 115 / 240 VAC with automatic adaptation to 50 Hz and 60 Hz frequencies.
-
High Power Capacity: Delivers 550 W of regulated output to support complex control loads.
-
Industrial-Grade Protection: Includes integrated overload handling, thermal protection, and input surge resistance.
-
Reliable Architecture: Built with Level 6 power architecture for continuous duty in demanding control cabinet environments.
Applications
This power supply is specifically engineered for use in Honeywell HPM rack-mounted environments, including:
- Petrochemical and refinery control systems
- Power generation facilities
- Large-scale manufacturing automation
- Mining process control infrastructure
Technical Specifications
| Model |
51109684-100 |
| Brand |
Honeywell |
| Series |
HPM |
| Input Voltage |
115 / 240 VAC |
| Input Frequency |
50 / 60 Hz |
| Input Current |
10 A AC maximum |
| Output Power |
550 W |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Mounting |
Rack mounted |
Installation Guidelines
-
Power Safety: Ensure the main input power is disconnected before installing or removing the module from the rack.
-
Environment: Install in a clean, dry, and climate-controlled cabinet. Ensure adequate clearance for passive airflow to prevent thermal throttling.
-
Grounding: Verify that the rack assembly is properly grounded to the cabinet chassis to maintain EMI/RFI shielding integrity.
-
Handling: Use standard ESD precautions when handling the module to prevent damage to internal electronic components.
FAQ
Is this module compatible with all HPM series racks?
The 51109684-100 is designed for standard Honeywell HPM rack-mounted assemblies. Please verify your specific cabinet configuration and backplane compatibility before installation.
What should I do if the thermal protection triggers?
If the unit shuts down due to thermal protection, verify that the surrounding ambient temperature is within the 0 to 60 deg C range and ensure that the ventilation paths are not obstructed by dust or cabling.
