Product Description

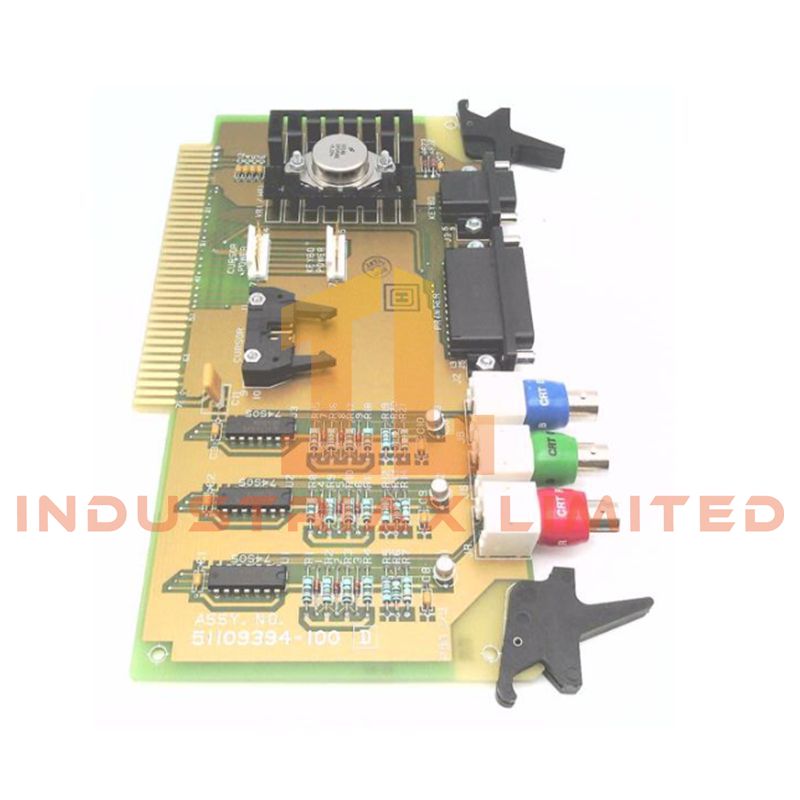

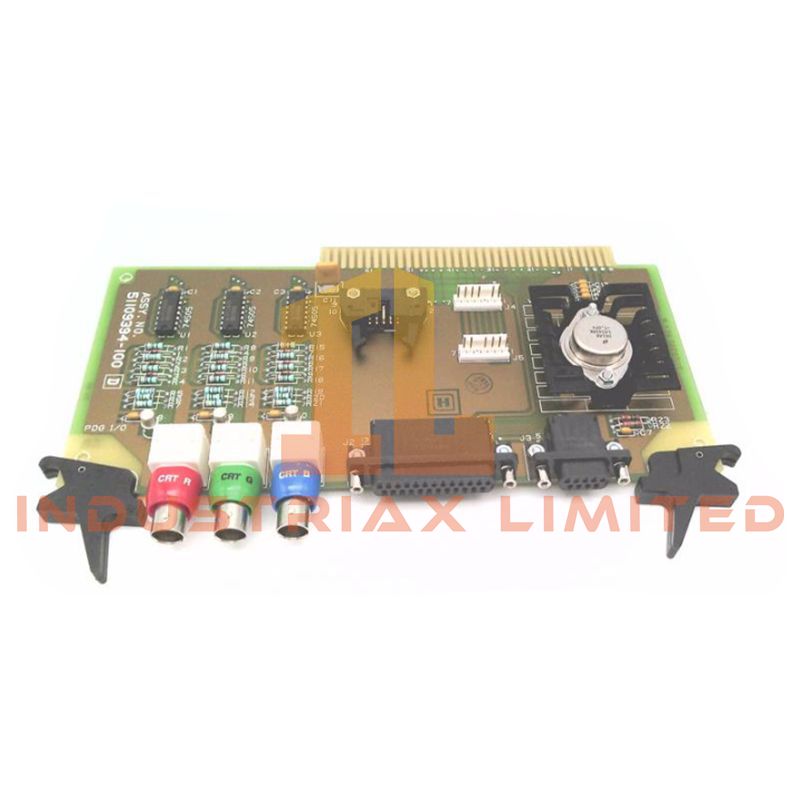

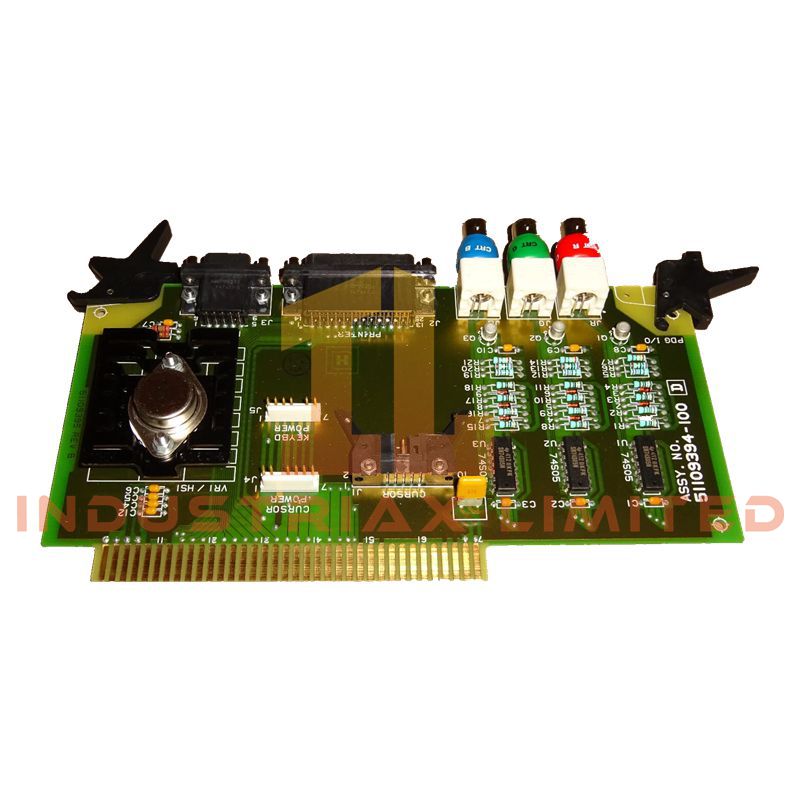

The 51109394-100 Universal I/O Board is a rack-mountable signal interface module developed by Honeywell for large-scale distributed control architectures. Designed for seamless integration with Honeywell TDC 3000 and Experion PKS platforms, this board provides flexible handling of mixed analog and digital field signals within a single hardware footprint.
Engineered as a multi-input/output PWA (Printed Wiring Assembly), the module performs signal acquisition, conditioning, and isolation between field instrumentation and control processors. Its architecture supports configurable channel assignments, allowing engineers to adapt the board to changing process requirements without hardware replacement. The design emphasizes electrical robustness, long-term stability, and maintainability in continuous-duty industrial environments.
Key Technical Characteristics
-
Model Identification: 51109394-100
-
Module Category: Universal Analog/Digital Input and Output Board
-
Board Type: Multi I/O PWA / PDG Interface Board
-
Mounting Method: Panel or standard control rack installation
-
Supported Systems: Honeywell TDC 3000, Experion PKS
-
Signal Types: Mixed analog and digital I/O (configurable by channel)
-
Channel Architecture: Multi-channel, software-defined assignment
-
Nominal Supply Voltage: 24 VDC
-
Electrical Protection: Integrated noise suppression and transient protection
-
Isolation: Channel-level and logic isolation for field and system protection
-
Diagnostic Capability: On-board status monitoring and fault reporting
-
Operating Temperature Range: −10 °C to +60 °C
-
Allowable Humidity: Up to 95% non-condensing
-
Construction: Industrial-grade PCB with copper traces and dual-layer coating
-
Dimensions: 25.9 × 18.5 × 3 cm
-
Weight: 0.40 lbs
Functional Advantages
-
Supports simultaneous analog and digital signal processing within one module
-
Enables hot-swap replacement to minimize system downtime during maintenance
-
Provides stable signal integrity in electrically noisy plant environments
-
Simplifies system expansion through flexible I/O configuration
-
Designed for long service life in 24/7 process control operations
Typical Deployment Scenarios
This universal I/O board is commonly installed in continuous and batch process systems where signal diversity and reliability are critical. Typical installations include power generation facilities, petrochemical processing units, advanced manufacturing lines, pharmaceutical production systems, and municipal or industrial water treatment plants.
FAQ
Q: Can this board handle both input and output signals at the same time?
A: Yes. The 51109394-100 is designed as a universal module, allowing channels to be configured for either input or output functions depending on system requirements.
Q: Is the module suitable for live replacement?
A: The board supports hot-swap functionality when used within compatible Honeywell racks and system configurations, reducing maintenance downtime.
Q: Does it require external signal conditioning hardware?
A: No. Signal conditioning and electrical isolation are integrated directly on the board.
