Description
Product Description

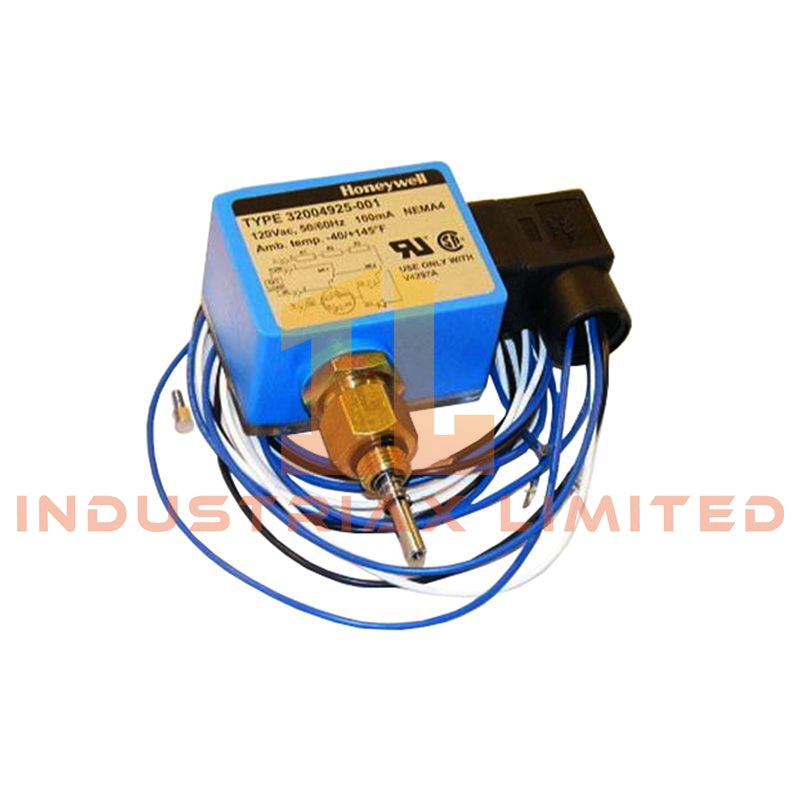

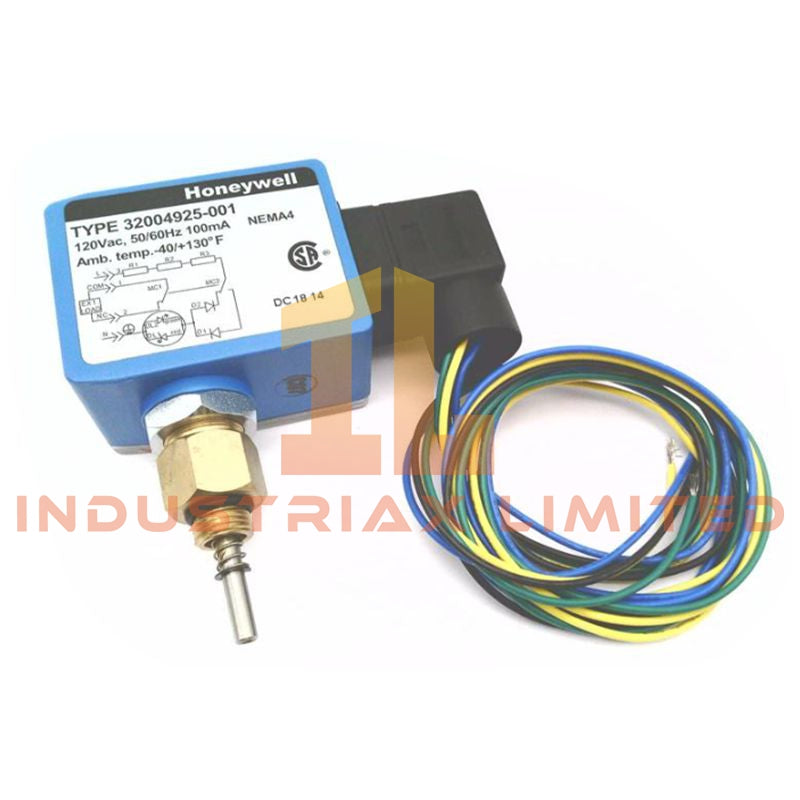

The 32004925-001 from Honeywell is a valve position feedback device engineered to confirm the fully closed status of safety shutoff valves in combustion systems. It is designed as a dedicated accessory for Honeywell V4295A and V4297A series gas valves, providing both electrical signaling and visual indication for control and safety circuits.
This CPI (Closed Position Indicator) module plays a critical role in burner management systems by supplying reliable end-position feedback, helping ensure safe shutdown sequences and compliance with applicable combustion safety codes.
Technical Specifications
-
Model: 32004925-001
-
Device Type: Closed Position Indicator (CPI) switch/module
-
Compatible Valves: Honeywell V4295A and V4297A safety shutoff valves
-
Ambient Temperature Range: –40°F to +130°F (–40°C to +50°C)
-
Enclosure Rating:
-
Electrical Contact Rating: 100 mA at 120 VAC, 50/60 Hz
-
Output Type: Dry contact signal for valve closed indication
-
Certifications: CSA, CE, TÜV, UL508
-
Compliance: Meets NFPA requirements for valve position indication
-
Weight: 3.0 lb
-
Mounting: Direct attachment to compatible valve actuator housing
Design and Functional Features
-
Provides discrete electrical confirmation when the valve reaches the fully closed position
-
Includes visible indication for local status verification during maintenance or inspection
-
Engineered specifically for Honeywell safety shutoff valve assemblies to ensure proper alignment and actuation
-
Rugged enclosure suitable for combustion system environments
-
Supports integration into burner management systems and interlock circuits
Application Areas
-
Industrial burner management systems (BMS)
-
Gas-fired boilers and process heaters
-
Furnace safety shutoff systems
-
Power generation and turbine fuel control systems
Important Considerations
-
This CPI device indicates valve position but is not classified as a proof-of-closure (POC) device under FM standards
-
Proper installation alignment with valve actuator is required for accurate switching
-
Routine inspection is recommended to maintain reliable switching performance
FAQ
Q: Does this device provide proof of closure (POC)?
A: No, it provides position indication only and does not meet FM-certified proof-of-closure requirements.
Q: Can it be used with other valve models?
A: It is specifically designed for Honeywell V4295A and V4297A valves; compatibility with other models is not guaranteed.
Q: What type of signal does it output?
A: It provides a low-current dry contact signal suitable for PLC or burner control system inputs.
