Product Description

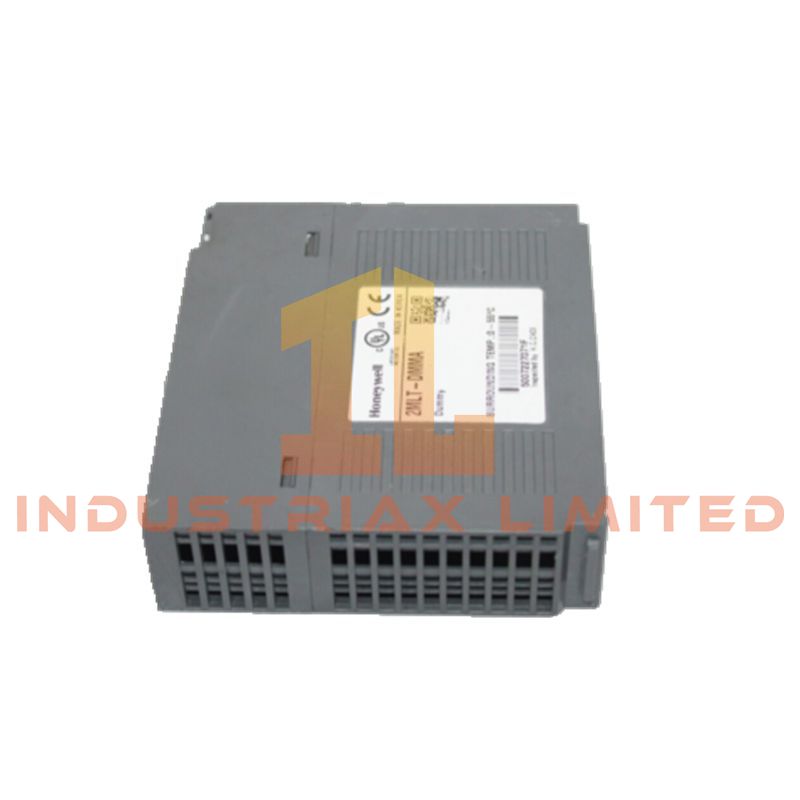

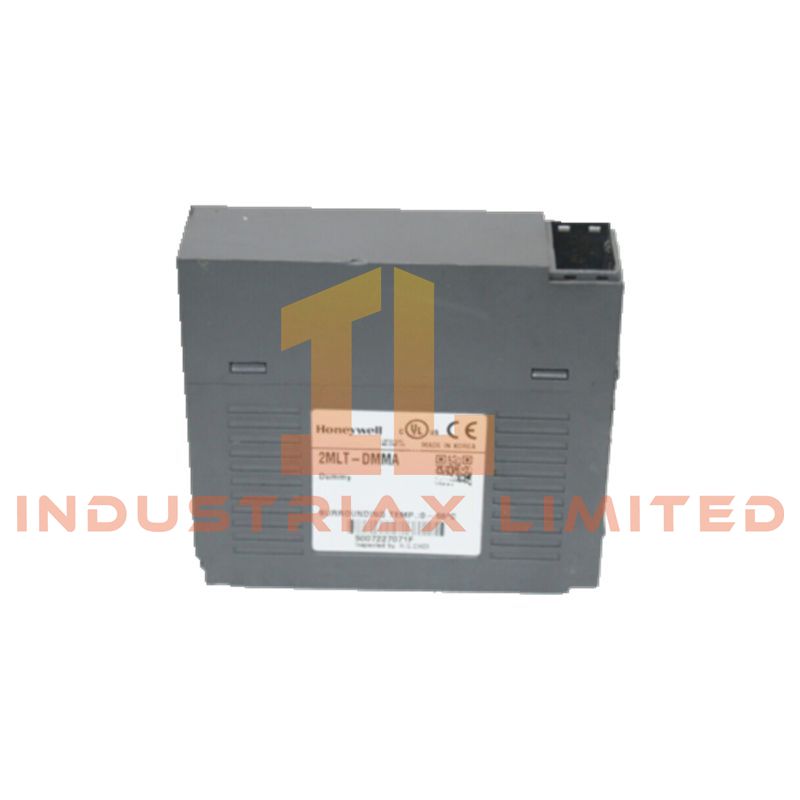

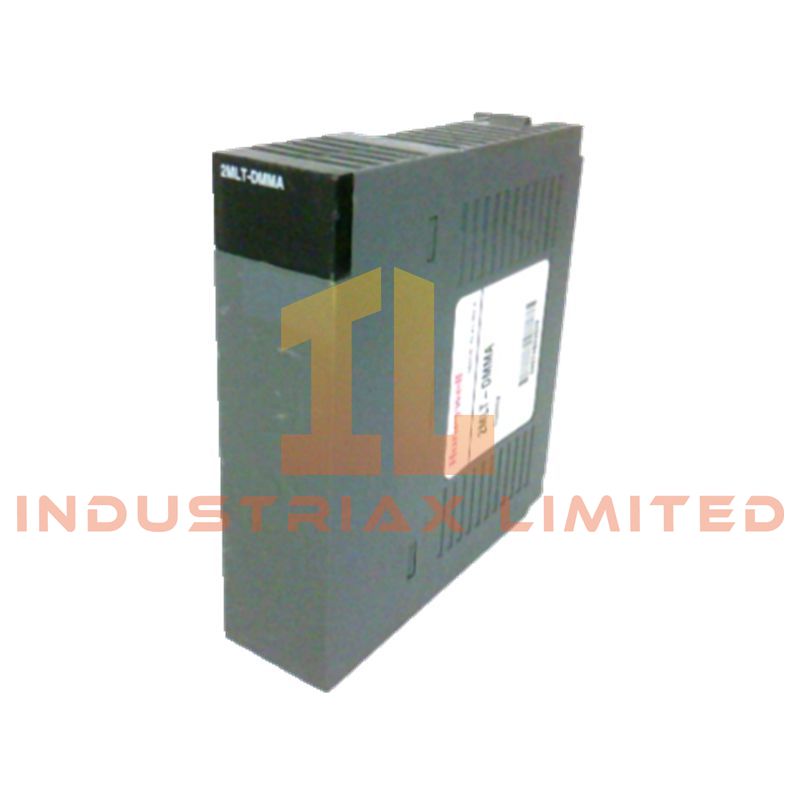

The Honeywell 2MLT‑DMMA is a versatile mixed digital input/output module engineered for the MasterLogic‑200 PLC family. This compact unit integrates both digital inputs and outputs in a single module, providing flexible I/O expansion for machinery and process control systems. Designed for reliability and industrial-grade performance, it is suitable for continuous operation in demanding environments.
Key Features:
-
Combines digital inputs and outputs in one compact module
-
Configurable transistor outputs (sink or source)
-
Compact design for efficient PLC rack integration
-
Industry-standard certifications including CE, UL508, CSA, and TUV
-
Reliable operation across a wide temperature range (-20°C to +60°C)
Technical Specifications:
| Specification |
Details |
| Channels |
16 Digital Inputs + 16 Digital Outputs |
| Input Voltage |
24 VDC |
| Output Type |
Transistor (Sink/Source Configurable) |
| Maximum Output Current |
0.5 A per channel |
| Dimensions (L × W × H) |
172 × 120 × 114 mm |
| Weight |
0.48 kg |
| Operating Temperature |
-20°C to +60°C |
Applications:
Ideal for machine control panels, automated process lines, and modular PLC systems where space efficiency and I/O flexibility are required.
FAQ:
Q: Can the output channels be configured for sourcing or sinking?
A: Yes, each output can be individually configured for sink or source operation.
Q: Is this module compatible with other MasterLogic series PLCs?
A: It is designed specifically for the MasterLogic‑200 series. Compatibility with other MasterLogic series should be verified before installation.
