Product Description

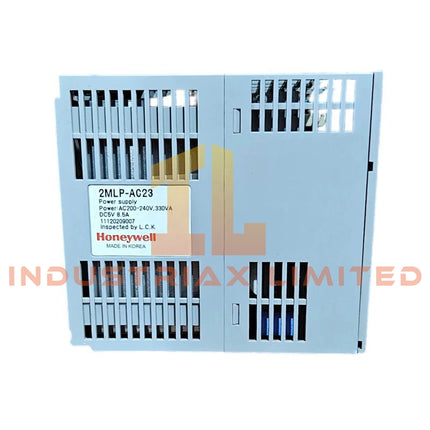

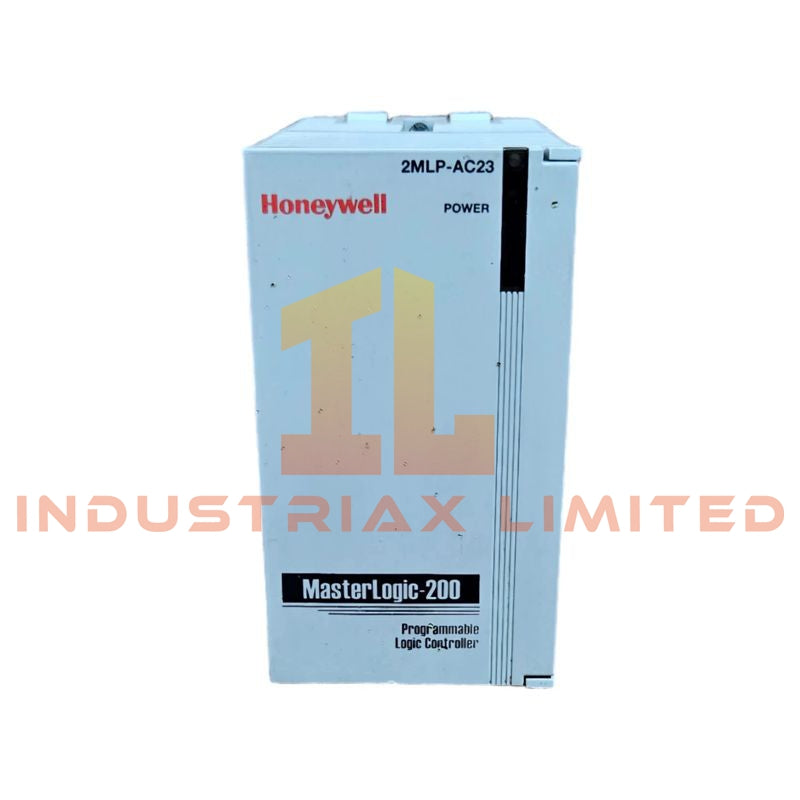

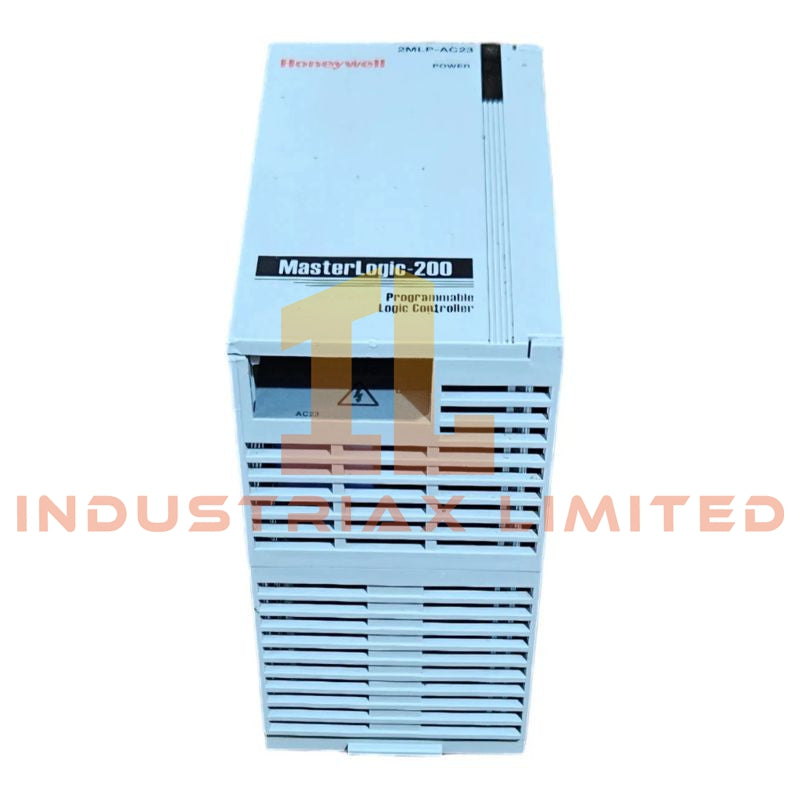

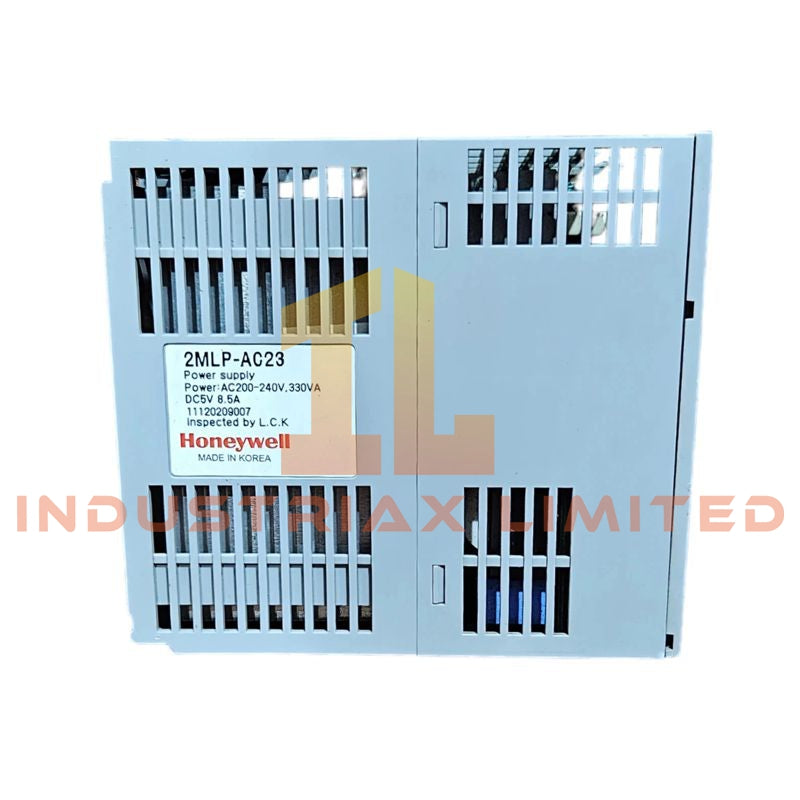

The Honeywell 2MLP-AC23 is a high-performance power supply module engineered for the MasterLogic-200 control system. It delivers a stable 24 VDC output to controllers, I/O modules, and communication devices, with built-in protection features to guard against overload, short circuit, and overheating. Designed for continuous operation in industrial environments, this module combines efficiency, reliability, and compact design, making it ideal for cabinets in petrochemical plants, water treatment facilities, pharmaceuticals, and power generation systems.
Technical Specifications
| Specification |
Details |
| Model |
2MLP-AC23 |
| Input Voltage Range |
85–264 VAC, 47–63 Hz |
| Input Current |
2.5 A at 115 VAC, 1.2 A at 230 VAC |
| Inrush Current |
≤20 A peak |
| Output Voltage |
24 VDC regulated |
| Output Current |
10 A nominal, 12 A peak |
| Output Power |
240 W (high-performance) / 72 W (compact version) |
| Efficiency |
≥85–88% |
| Ripple & Noise |
<1% typical |
| Protection Features |
Overvoltage, overload, short-circuit, over-temperature |
| Cooling Method |
Natural convection (fanless) |
| Operating Temperature |
-25 °C to +70 °C |
| Storage Temperature |
-40 °C to +85 °C |
| Relative Humidity |
5–95% non-condensing |
| Dimensions |
125 × 50 × 130 mm |
| Weight |
0.6 kg |
| Mounting Options |
DIN-rail or panel-mounted |
| Certifications |
CE, UL, RoHS |
| Voltage Indicator |
LED shows output voltage status |
| Cable Specification |
0.75–2 mm² |
| Compressed Terminal |
RAV 1.25–3.5, RAV 2–3.5 |
Key Features & Advantages
-
High reliability for continuous, mission-critical operation
-
Wide input range compatible with global AC mains (85–264 VAC)
-
Built-in protections against electrical faults and thermal overload
-
Compact form factor for convenient cabinet installation
-
Energy-efficient design reduces heat generation and operational cost
-
Easy maintenance with modular construction for quick replacement
Applications
The Honeywell 2MLP-AC23 is suitable for:
-
MasterLogic-200 controllers and I/O modules
-
Industrial automation systems in petrochemical, pharmaceutical, and water treatment plants
-
Power generation and distribution systems requiring 24 VDC stable output
-
Cabinets with limited space needing high-performance power supply
FAQ
Q: What is the output voltage and current?
A: Provides 24 VDC at 10 A nominal, up to 12 A peak.
Q: How is the module cooled?
A: Fanless design using natural convection.
Q: What protections are included?
A: Overvoltage, overload, short-circuit, and over-temperature protection.
Q: Can it handle global AC mains voltages?
A: Yes, input range is 85–264 VAC, 47–63 Hz.
