Description
Overview

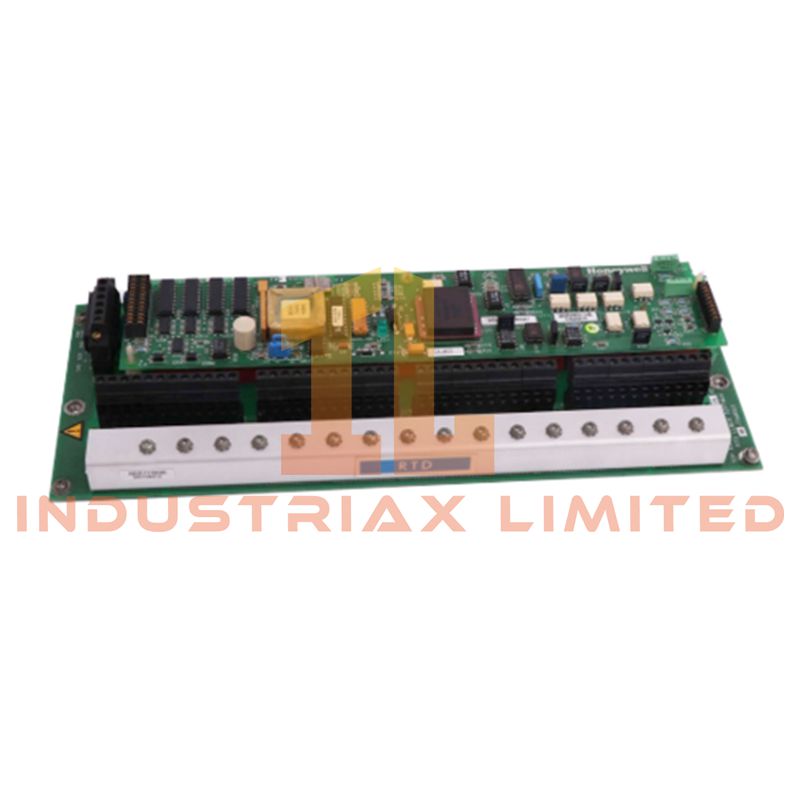

The Honeywell 05704-A-0144 is a high-precision four-channel control input card engineered for catalytic combustion gas monitoring. It converts low-level analog signals from catalytic gas sensors into reliable outputs suitable for DCS and PLC systems. Built for demanding industrial environments, this module ensures fast, accurate gas detection and robust operational reliability.
Technical Specifications
| Specification |
Details |
| Manufacturer |
Honeywell |
| Model / Part Number |
05704-A-0144 |
| Input Channels |
4 |
| Sensor Compatibility |
Catalytic combustion gas sensors, thermocouples, pressure sensors, flame detectors |
| Input Type |
Low-level analog signals |
| Output Type |
Processed analog/digital signals for DCS/PLC |
| Power Supply |
24 VDC ±10% |
| Power Consumption |
8.5 W typical, 12.8 W maximum (200 mA sensor current) |
| Response Time |
<100 ms |
| Maximum Drive Voltage |
10 V |
| Drive Mode |
Constant current, electronically adjustable 90–315 mA in 1 mA increments |
| Initial Accuracy |
±1% |
| Signal Adjustment |
Electronic bridge balance and signal gain adjustment |
| Fault Detection |
Open circuit, short circuit, single bead failure |
| Maximum Line Resistance |
40 Ω (including sensor) |
| Bridge Imbalance Limit |
±100 mV from center at 2 V bridge voltage |
| Isolation |
Channel-to-channel and channel-to-ground isolation |
| Operating Temperature |
-40°C to +80°C |
| Protection Rating |
IP65 (dustproof and water-resistant) |
| Dimensions |
122 × 52 × 132 mm |
| Weight |
0.14 kg |
Key Features
-
High reliability in harsh industrial conditions
-
Fast, real-time signal processing (<100 ms)
-
Strong EMI/RFI interference resistance
-
Versatile input compatibility for multiple sensor types
-
Safety-focused design with accurate alarm triggering
Application Scenarios
Ideal for industrial safety monitoring in petrochemical plants, chemical processing, natural gas facilities, and energy production environments. Provides precise, real-time monitoring for hazardous gas detection and automated control.
FAQ
Q: Can this module handle multiple types of gas sensors?
A: Yes, it supports catalytic combustion gas sensors, thermocouples, pressure sensors, and flame detectors.
Q: What safety protections are included?
A: The card includes open-circuit, short-circuit, and single-bead failure detection, ensuring fail-safe operation.
Q: How fast is the response time?
A: The module operates with a response time under 100 milliseconds, suitable for real-time monitoring systems.
Q: Is it compatible with PLC and DCS systems?
A: Yes, outputs are designed for direct integration with distributed control systems and programmable logic controllers.
