Description
Overview

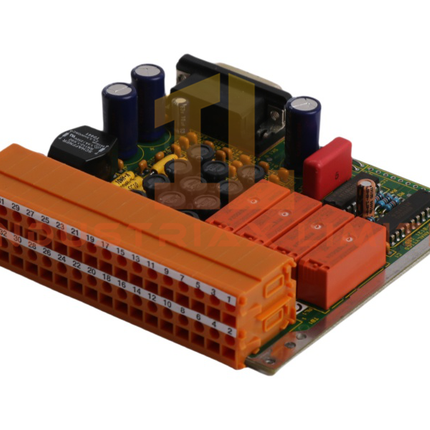

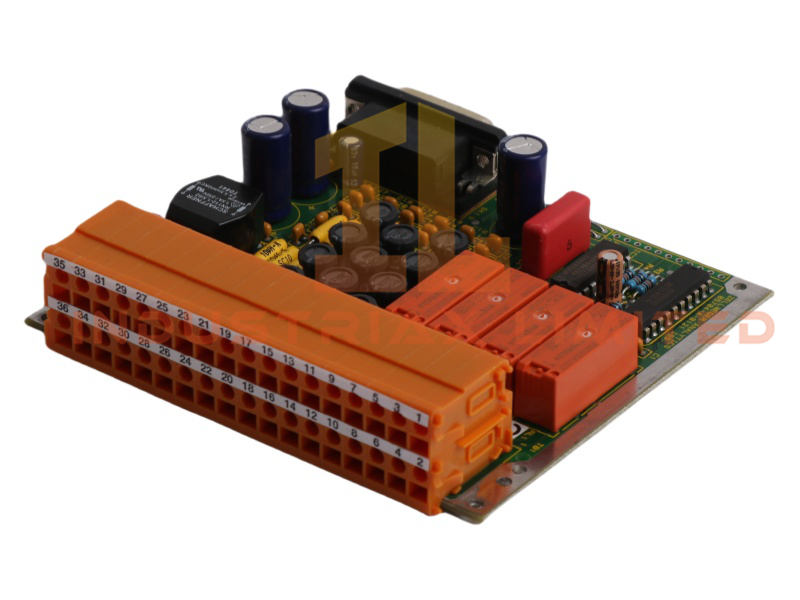

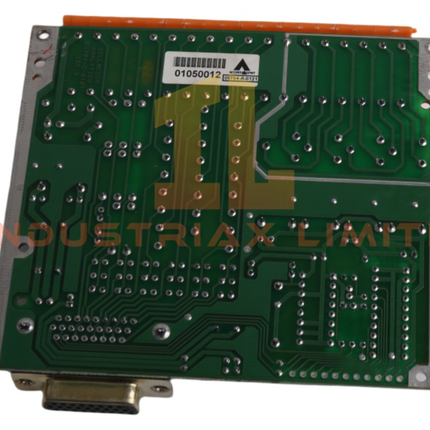

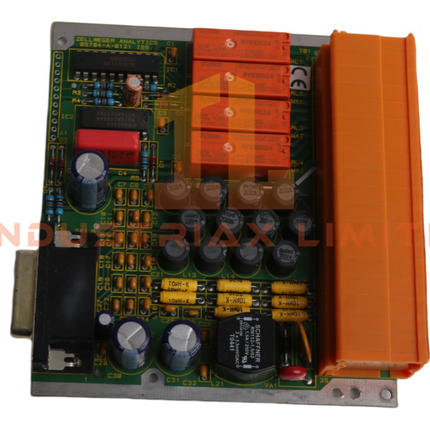

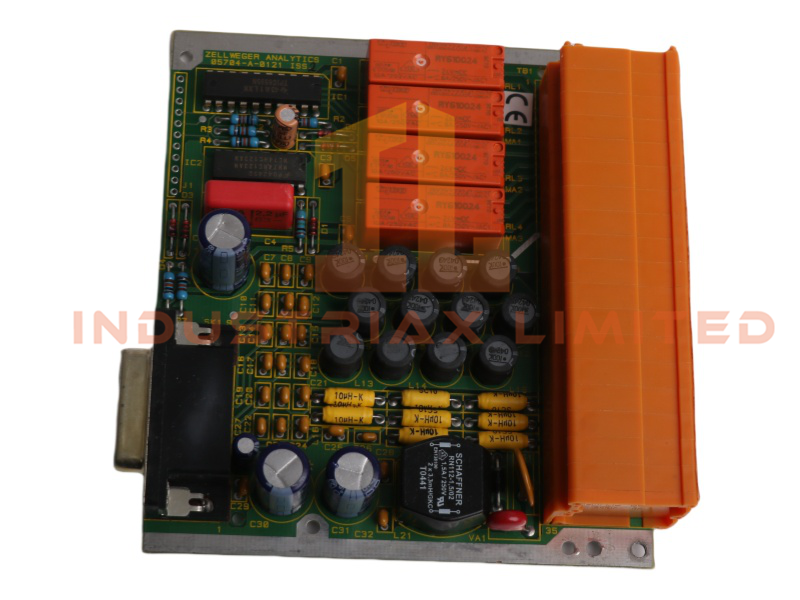

The Honeywell 05704-A-0121 Analytics Quad Relay Interface Card is a precision-engineered module designed for Experion PKS distributed control systems (DCS). Built to deliver reliable relay interfacing and signal integrity, it ensures dependable communication between analytical subsystems and process controllers.
Technical Specifications
-
Model Number: 05704-A-0121
-
Manufacturer: Honeywell
-
Module Type: Analytics Quad Relay Interface Card
-
Product Range: Experion PKS
-
System Compatibility: DCS (Distributed Control System)
-
Condition: Brand New
-
Origin: USA
-
Weight: 0.22 kg
-
Dimensions: 11.8 × 13.1 × 2.4 cm
-
HS Code: 8537101190
-
Minimum Order Quantity (MOQ): 1
-
Lead Time: In Stock
-
Status: Active (not discontinued)
-
Communication Service: Ethernet router interface
Functional Description
The 05704-A-0121 module provides a robust relay interface for analytical systems within Honeywell’s Experion PKS architecture. It is designed to handle multiple relay outputs with high accuracy, ensuring stable signal transmission and reducing the risk of communication errors.
Its compact form factor allows easy installation, while the rugged construction ensures resistance to vibration, electrical noise, and temperature fluctuations. Diagnostic indicators simplify troubleshooting, and the module’s efficient design minimizes heat generation, extending service life and reducing maintenance costs.
Application Scenarios
-
Integration of analytical subsystems into Experion PKS DCS environments
-
Manufacturing plants requiring reliable relay interfacing for process monitoring
-
Energy and utility systems where precise relay control is critical
-
Continuous process industries needing durable interface modules
FAQ
Q: What is the primary function of the 05704-A-0121? A: It serves as a relay interface card, enabling reliable communication between analytical subsystems and controllers.
Q: Is this module backward compatible? A: Yes, it can be integrated into legacy Honeywell systems while supporting modern Experion PKS platforms.
Q: How does it improve system reliability? A: Through stable relay signal processing, rugged construction, and diagnostic features that reduce downtime.
