Description
Overview

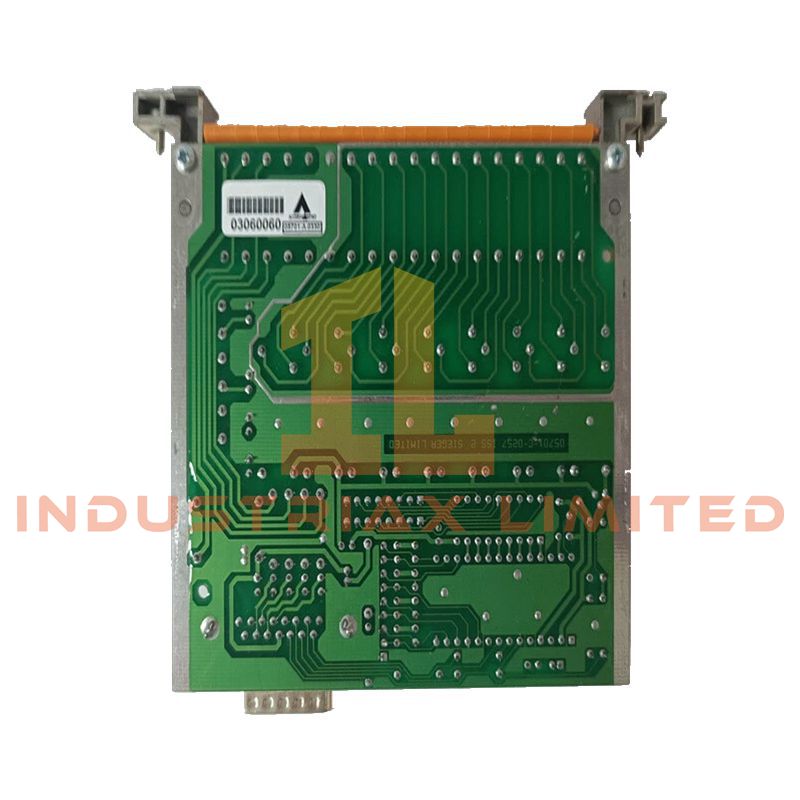

The Honeywell 05701-A-0330 is a high-performance single-channel control card engineered for precise signal monitoring and control in industrial automation and gas detection systems. Designed for reliability and robust operation, this module integrates seamlessly with Honeywell System 57 and Experion PKS platforms, delivering accurate sensor readings, alarm activation, and relay outputs in demanding environments.
Technical Specifications
| Feature |
Specification |
| Operating Voltage |
220 V AC/DC |
| Output Frequency |
50 kHz |
| Current Rating |
10 A |
| Number of Control Channels |
1 |
| Communication Interface |
RS-485 |
| Relay Contact Type |
SPCO (Single-Pole, Double-Throw, Center Off) |
| Rated Relay Voltage |
250 V AC, 10 A |
| Operating Temperature |
-40°C to +70°C |
| Humidity Range |
5%–95% RH, non-condensing |
| Shock Resistance |
15 g |
| Vibration Resistance |
5 g up to 2 kHz |
| Enclosure Protection |
IP65 |
| Dimensions |
134 × 85 × 15 mm |
| Weight |
0.5 kg |
Key Features
-
Single-channel monitoring for gas sensors or automation devices
-
High-reliability SPCO relay design with fault protection
-
RS-485 communication for integration with industrial networks
-
Rugged IP65 enclosure with shock and vibration resistance
-
Certified to CE, UL, CSA, and TUV standards
Applications
-
Gas Detection: Monitors toxic or combustible gases in Honeywell System 57
-
Industrial Automation: Relay-based control for alarms, solenoids, and motor starters
-
Safety Systems: Provides interlock or alarm activation in hazardous environments
-
Process Control: Single-channel monitoring in chemical, power, or refinery plants
FAQ
Q: Can this card operate standalone?
A: It is primarily designed for Honeywell System 57 or Experion PKS; standalone use is limited.
Q: What are the environmental limits?
A: The module operates between -40°C and +70°C and tolerates 5–95% non-condensing humidity.
Q: How does it communicate with control systems?
A: Communication is via RS-485, supporting integration with Honeywell networks.
Q: Are there variants of this model?
A: Some distributors list it as a relay card for general automation. Verify configuration before purchase.
