Description
Description

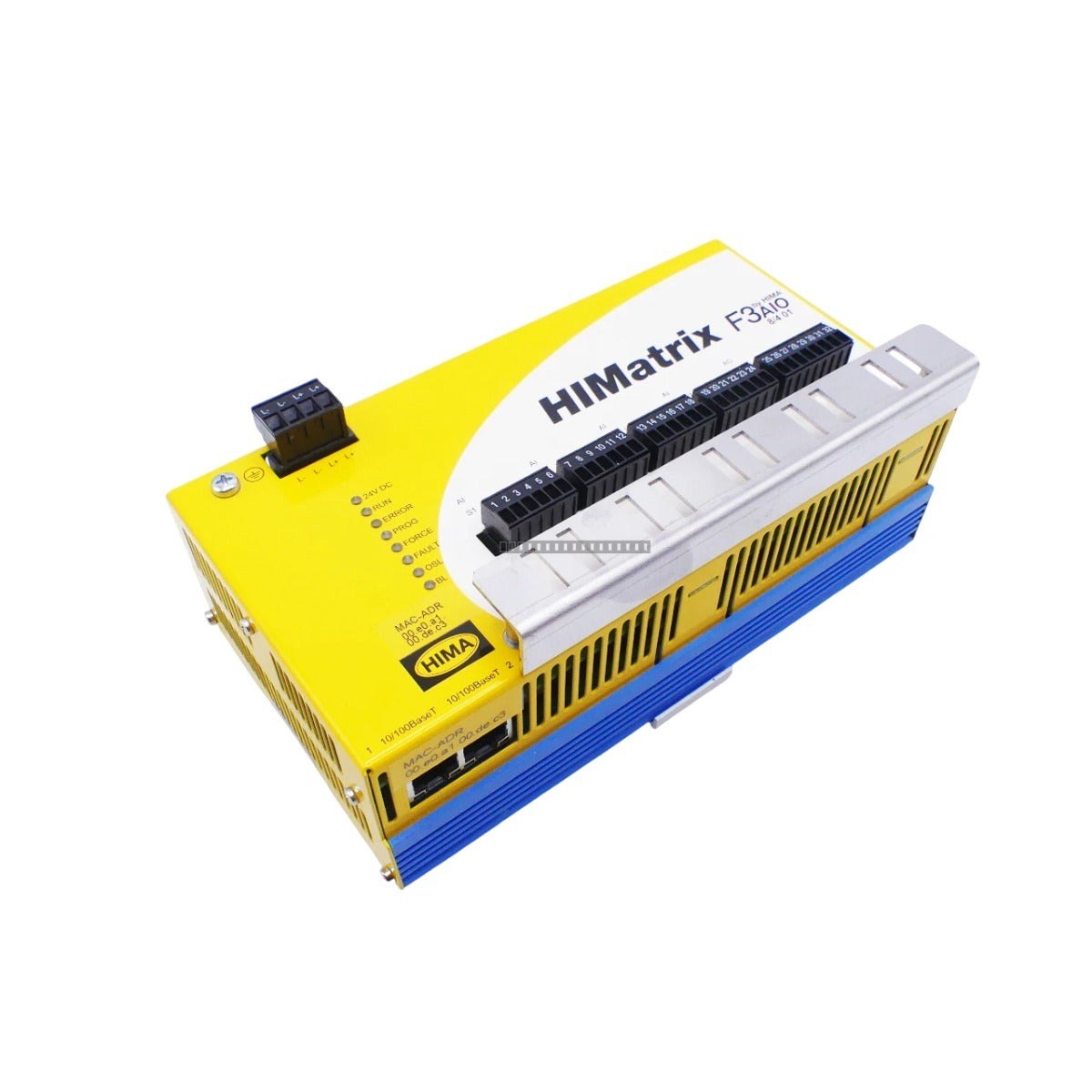

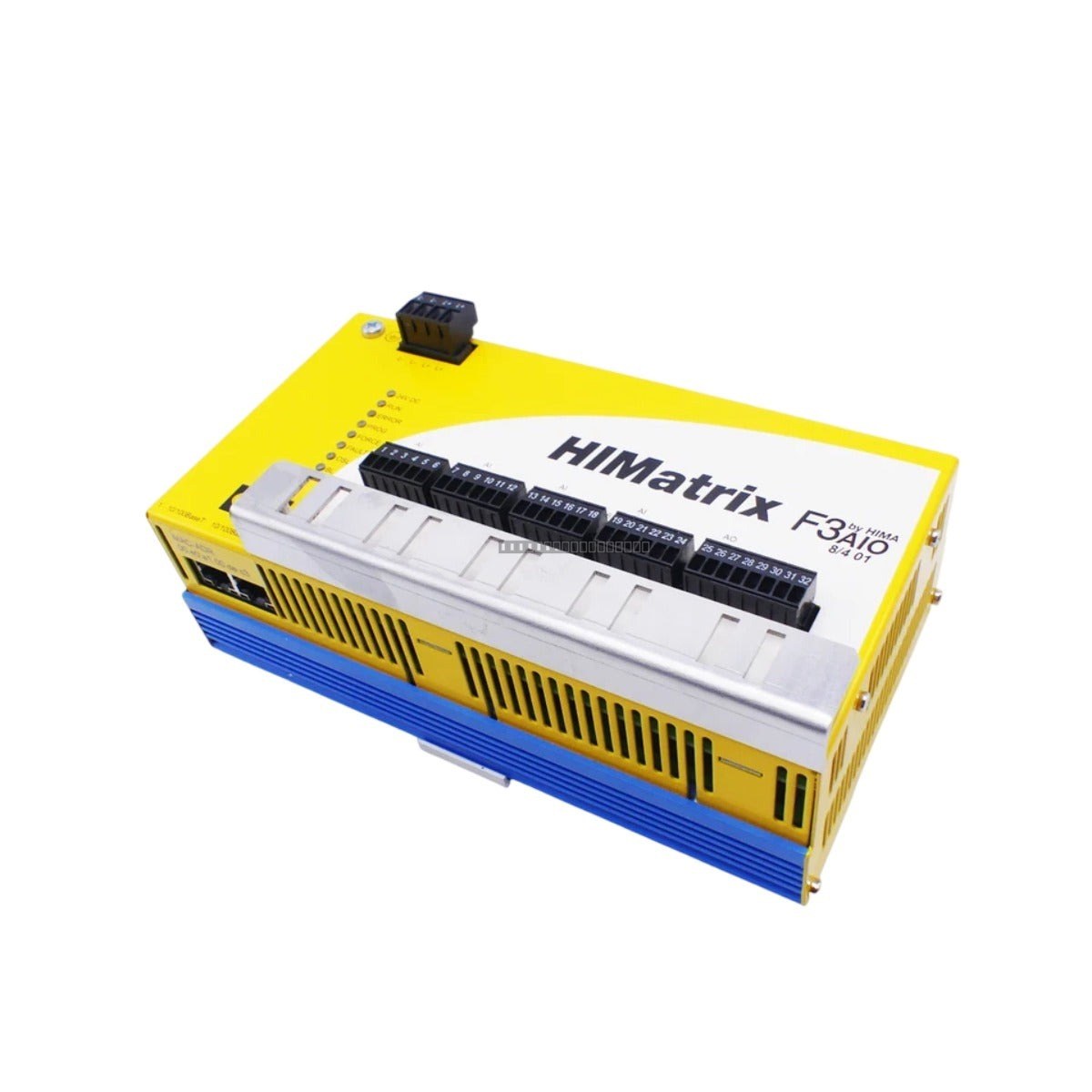

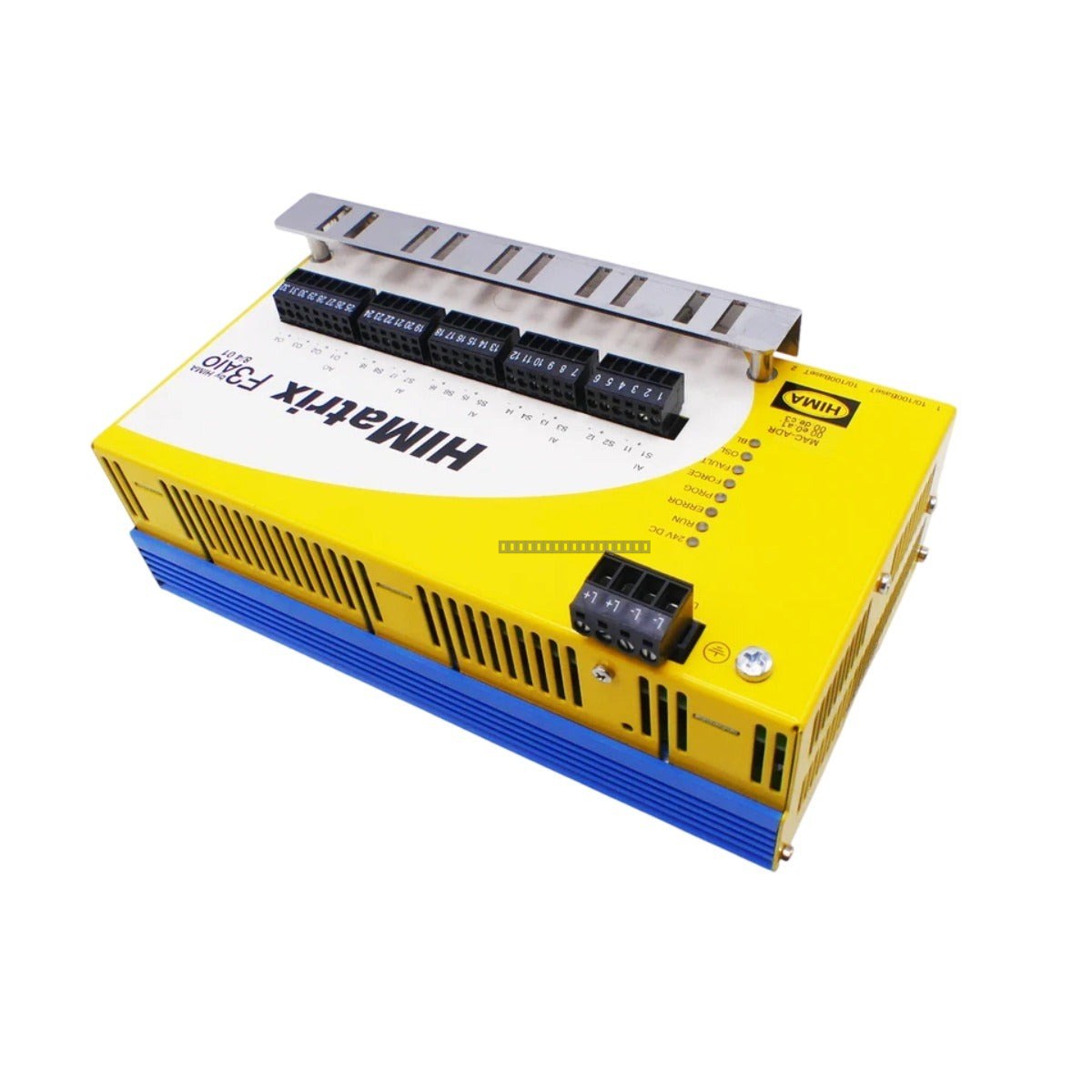

The HIMA F3 AIO 8/4 01 is a high-performance safety-related remote I/O module designed for the Himatrix system. This module provides integrated analog signal processing capabilities, specifically engineered for safety-critical industrial automation environments. It facilitates the reliable acquisition of analog input signals and the control of analog output devices, ensuring system integrity and functional safety compliance.
Features
- Safety-rated analog I/O module for Himatrix systems.
- 8 analog input channels with high input resistance.
- 4 analog output channels with configurable voltage/current parameters.
- 12-bit digital resolution for precise signal conversion.
- Supports standard 4...20 mA process signal ranges.
- Robust design suitable for harsh industrial conditions.
Technical Specifications
| Product Model |
F3 AIO 8/4 01 |
| Number of Inputs |
8 |
| Input Resistance |
> 2 MΩ |
| Input Signal Source Resistance |
≤ 500 Ω |
| Digital Resolution |
12-bit |
| Number of Supply Outputs |
8 |
| Nominal Voltages |
8.2 VDC / 26 VDC (switchable) |
| Voltage Tolerance |
± 5 % |
| Nominal Current Range |
4...20 mA |
| Operating Current Range |
0...21 mA |
| Max Load Impedance |
600 Ω |
Installation Guidelines
- Ensure the system power is completely disconnected before installing or removing the module from the rack.
- Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures.
- Use shielded cables for all analog signal connections to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the module chassis to the system common ground to maintain safety integrity.
- Verify that all terminal connections are secure and that wire gauges comply with local electrical standards.
- Handle the module using ESD-safe practices to prevent damage to internal electronic components.
FAQ
Is the F3 AIO 8/4 01 compatible with other HIMA systems?
This module is specifically designed for the HIMA Himatrix series. Please consult your system documentation or HIMA configuration software to ensure compatibility with your specific controller CPU and backplane.
What is the primary function of the switchable nominal voltages?
The 8.2 VDC / 26 VDC switchable voltage allows the module to interface with a variety of field sensors and transmitters, providing the necessary loop power for different instrumentation requirements.
