Description

Description

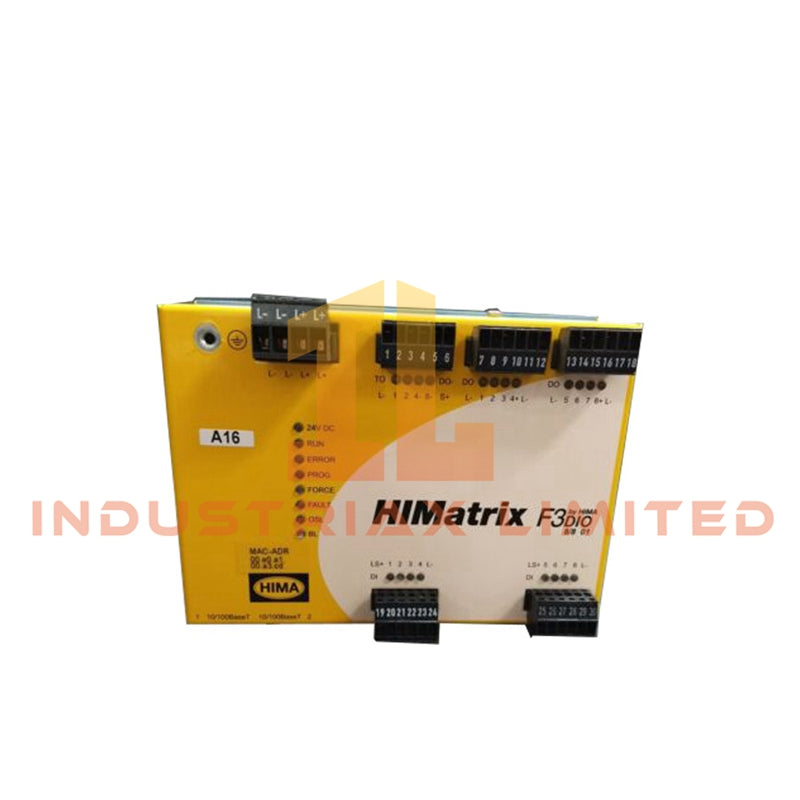

 The HIMA F3 DIO 8/8 01 (F3DIO8/801) is a digital input/output module from the HIMAtrix series, designed for use in safety-critical automation systems. It combines 8 digital inputs and 8 digital outputs in a single compact unit, supporting high-integrity control functions in applications requiring SIL 3 certification, such as emergency shutdowns, burner management, and turbine protection.

Specifications

• Model Number: F3 DIO 8/8 01

• Part Number: F3DIO8/801

• Series: HIMAtrix

• Function: Digital Input/Output Module

• Digital Inputs: 8 channels (24 VDC, sink/source configurable)

• Digital Outputs: 8 channels (24 VDC, short-circuit protected)

• Safety Level: SIL 3 (IEC 61508)

• Communication: Safe Ethernet (HIMA protocol), RS-485 (optional)

• Mounting: DIN rail or cabinet-mounted

• Status Indicators: LED diagnostics for each channel

• Operating Temperature: –20°C to +60°C

• Power Supply: 24 VDC nominal

• Certifications: TÜV, CE, ATEX, UL (varies by deployment)

• Country of Origin: Germany

Specifications

• Dimensions: 20.3 cm × 12.7 cm × 2.5 cm Weight
• Brand: Hima

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
