Description
Description

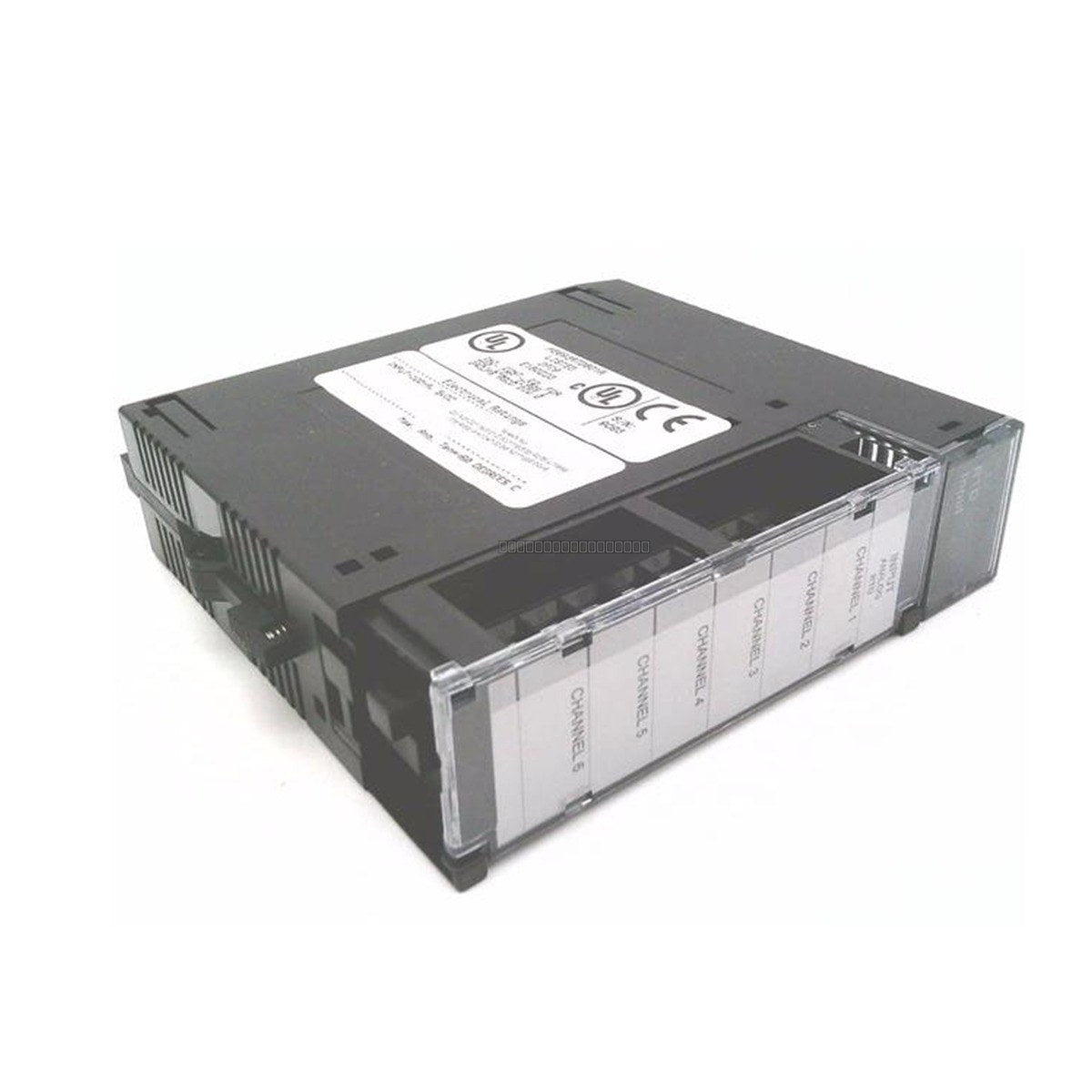

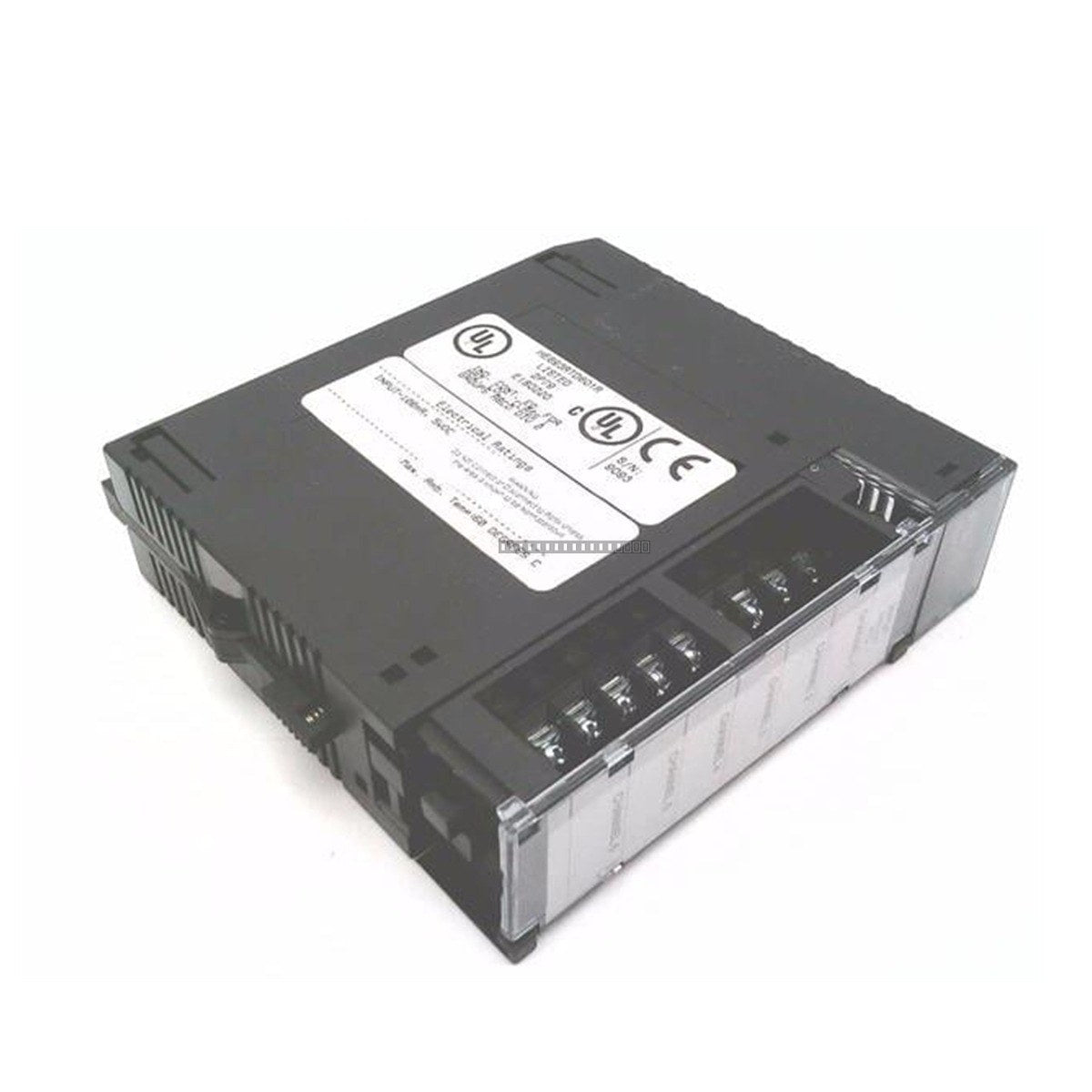

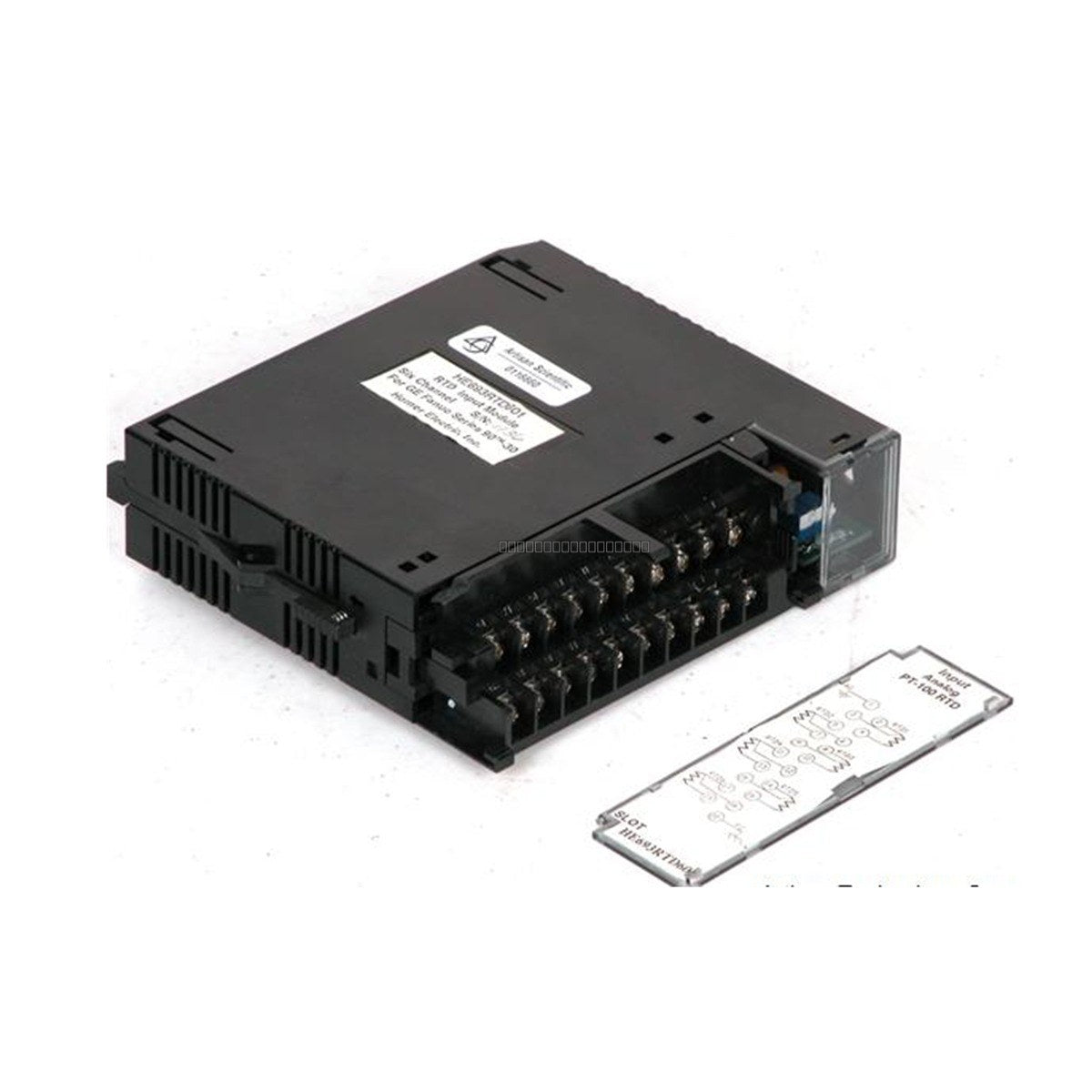

The HE693RTD601 is a high-precision Resistance Temperature Detector (RTD) input module designed for the GE Fanuc Series 90-30 automation platform. This module serves as a critical interface for converting low-level analog signals from field-mounted RTD sensors into digital temperature data for processing by the CPU. It is engineered for demanding industrial environments, including power generation, oil and gas, and food processing, where precise thermal monitoring is essential for operational safety and process control.
Features
-
6-Channel Input: Provides six independent input channels for high-density temperature monitoring.
-
Sensor Compatibility: Supports a variety of RTD types, including Pt100, Ni120, and Cu10, offering flexibility for diverse field instrumentation.
-
Series 90-30 Integration: Fully compatible with the Series 90-30 backplane architecture, allowing for seamless integration into existing control systems.
-
Diagnostic Capability: Includes advanced diagnostic features to assist in troubleshooting and system maintenance.
Applications
This module is typically deployed in applications requiring accurate temperature acquisition, such as:
- Thermal monitoring in power plant turbines and cooling systems.
- Process temperature control in oil refineries and chemical processing.
- Precision thermal management in food and beverage production lines.
Technical Specifications
| Model |
HE693RTD601 |
| Brand |
GE Fanuc / Horner APG |
| Series |
Series 90-30 |
| Module Type |
Analog RTD Input Module |
| Number of Channels |
6 |
| Supported Inputs |
Pt100, Ni120, Cu10 |
| Backplane Current Draw |
250 mA at 5 VDC |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
Installation Guidelines
-
Power Off: Always disconnect power from the Series 90-30 rack before inserting or removing the module to prevent electrical damage.
-
Slot Positioning: Ensure the module is seated correctly in the designated I/O slot of the backplane.
-
Grounding: Follow standard industrial grounding practices to minimize electromagnetic interference (EMI) and ensure signal integrity.
-
Wiring: Use shielded twisted-pair cabling for RTD connections to reduce noise, ensuring that shields are properly grounded at the source or controller end as per site specifications.
-
Environment: Ensure the installation area is free from excessive vibration and within the specified operating temperature range of 0 to 60 deg C.
FAQ
What types of RTDs does the HE693RTD601 support?
The module supports standard RTD types including Pt100, Ni120, and Cu10, providing versatility for various industrial temperature sensing requirements.
Is this module compatible with all Series 90-30 racks?
Yes, the HE693RTD601 is designed for the Series 90-30 I/O architecture and is compatible with standard Series 90-30 backplanes.
