Description

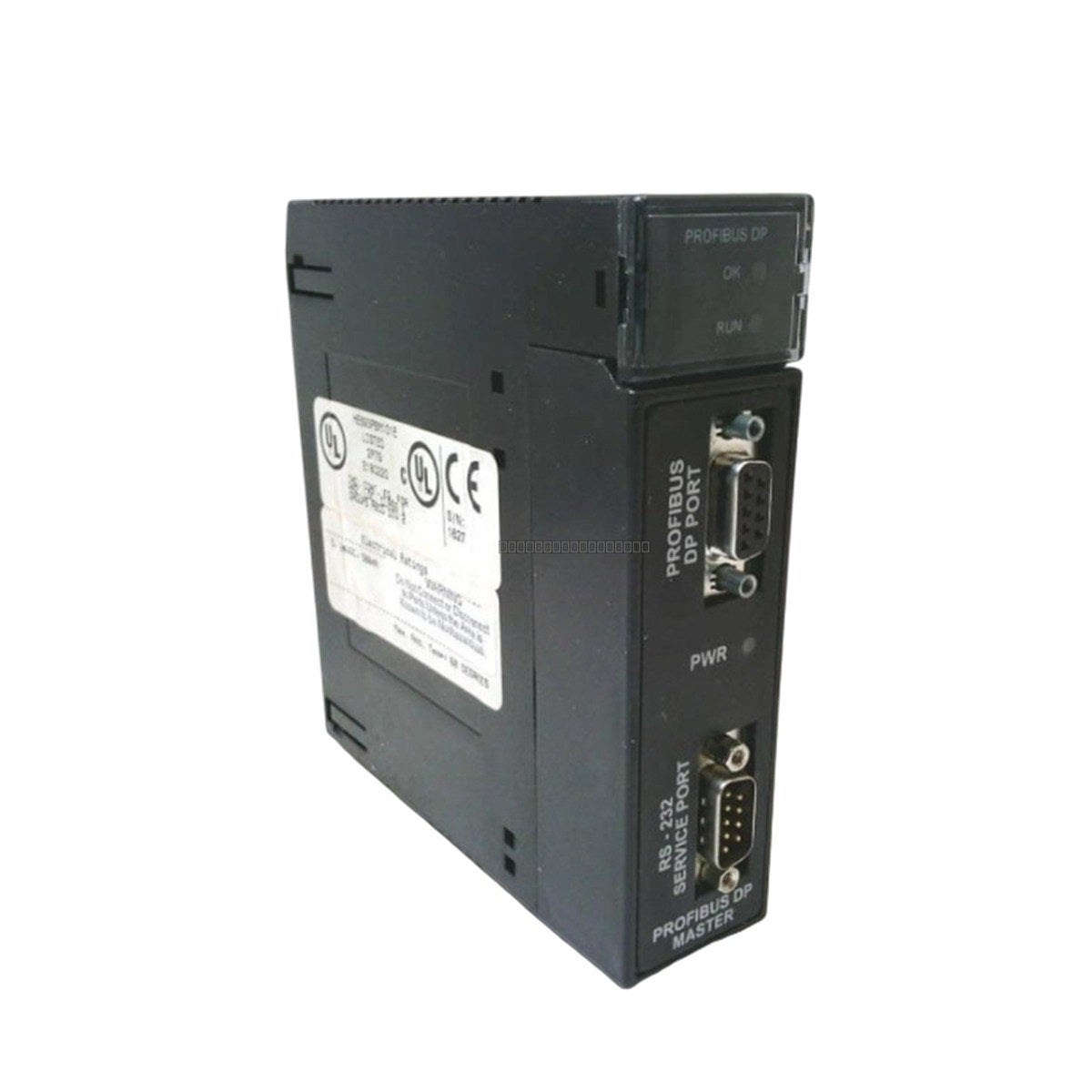

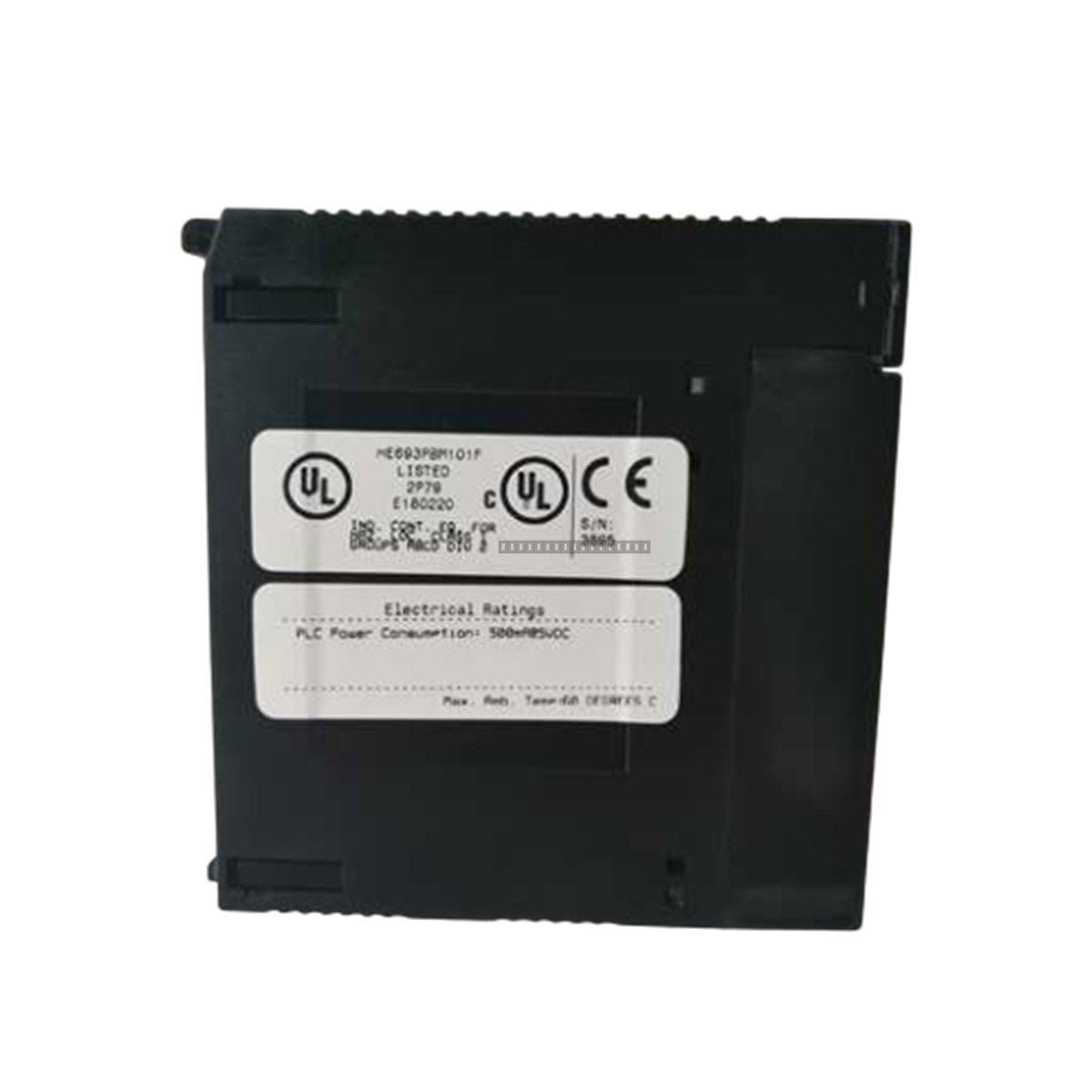

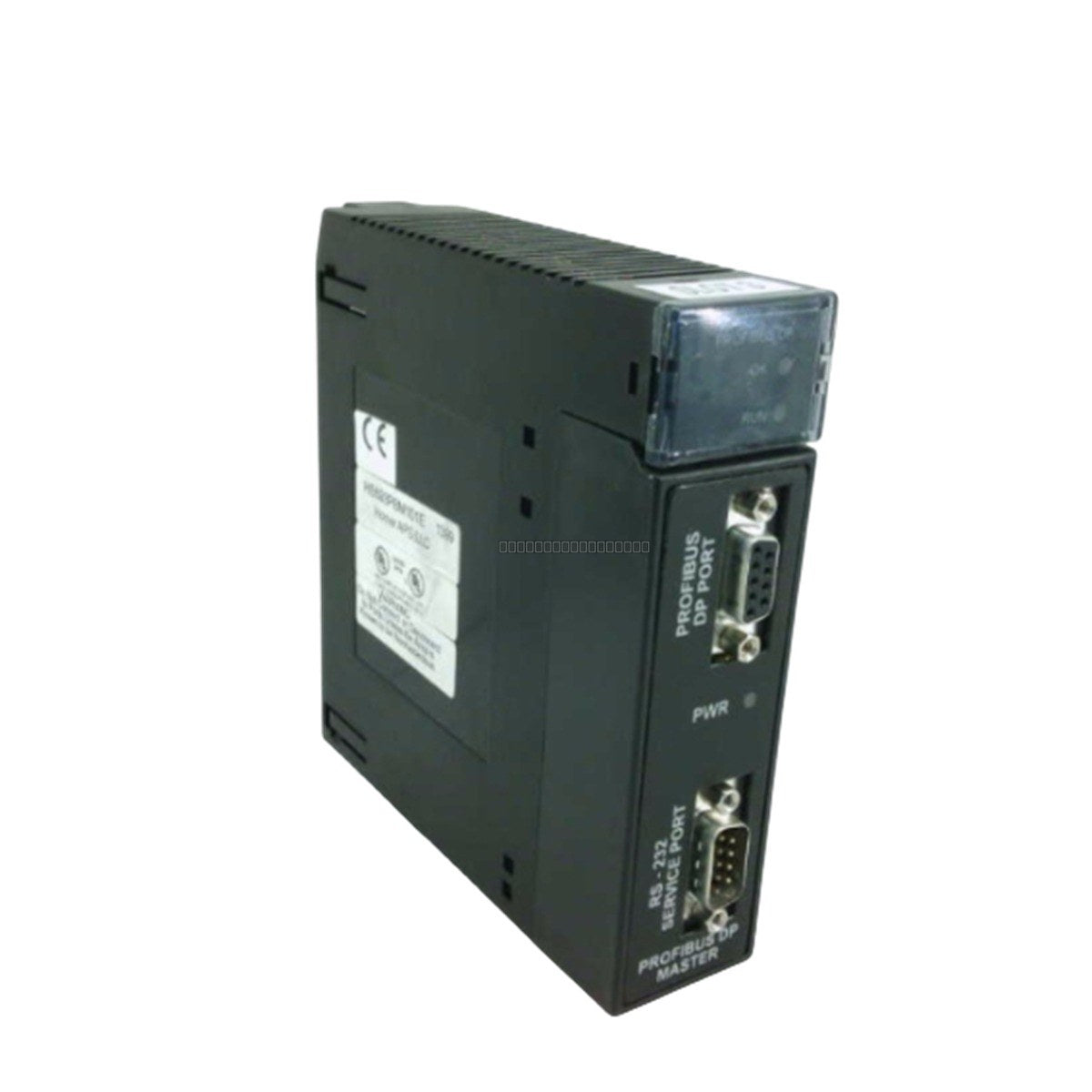

The General Electric HE693PBM101 is a specialized network module designed for the Series 90-30 PLC platform. This module functions as a Profibus Master, enabling the PLC to communicate with and control various Profibus-DP slave devices within an industrial automation network. It provides a robust interface for distributed I/O, drives, and other field devices, facilitating seamless data exchange and system expansion in complex control architectures.
Features
- Designed specifically for integration with the GE Fanuc Series 90-30 PLC system.
- Acts as a Profibus Master, supporting high-speed communication with slave nodes.
- Includes an RS-232 interface for configuration and diagnostic purposes.
- Enables efficient distributed control by offloading communication tasks from the main CPU.
- Compact module design for standard Series 90-30 rack mounting.
Applications
This module is widely utilized in manufacturing and process control environments where Profibus-DP protocol is required for fieldbus communication. Typical applications include motor control centers, remote I/O stations, and integration of third-party instrumentation into the GE 90-30 control ecosystem.
Technical Specifications
| Product Model |
HE693PBM101 |
| Manufacturer |
General Electric |
| Module Type |
Profibus Master Network Module |
| Series |
Series 90-30 |
| Interface |
Profibus-DP, RS-232 |
| Weight |
0.34 kg |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
- Slide the module into an available slot in the Series 90-30 baseplate, ensuring the backplane connector is fully seated.
- Secure the module using the integrated mounting screws to ensure proper grounding and mechanical stability.
- Use shielded Profibus-rated cabling for all network connections to minimize EMI interference.
- Verify that the module configuration matches the network baud rate and slave address settings via the PLC programming software.
- Maintain adequate ventilation around the rack to prevent overheating during continuous operation.
FAQ
What is the primary function of the HE693PBM101?
The HE693PBM101 acts as a Profibus Master module, allowing a GE Series 90-30 PLC to manage and communicate with Profibus-DP compatible field devices.
Is this module compatible with other PLC series?
No, this module is specifically engineered for the GE Series 90-30 PLC backplane architecture.
Does this module require external power?
The module draws its operating power directly from the Series 90-30 PLC rack backplane.
