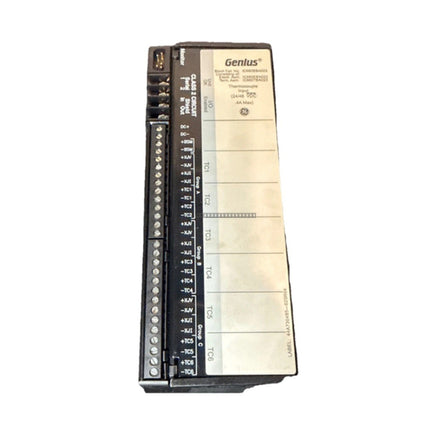

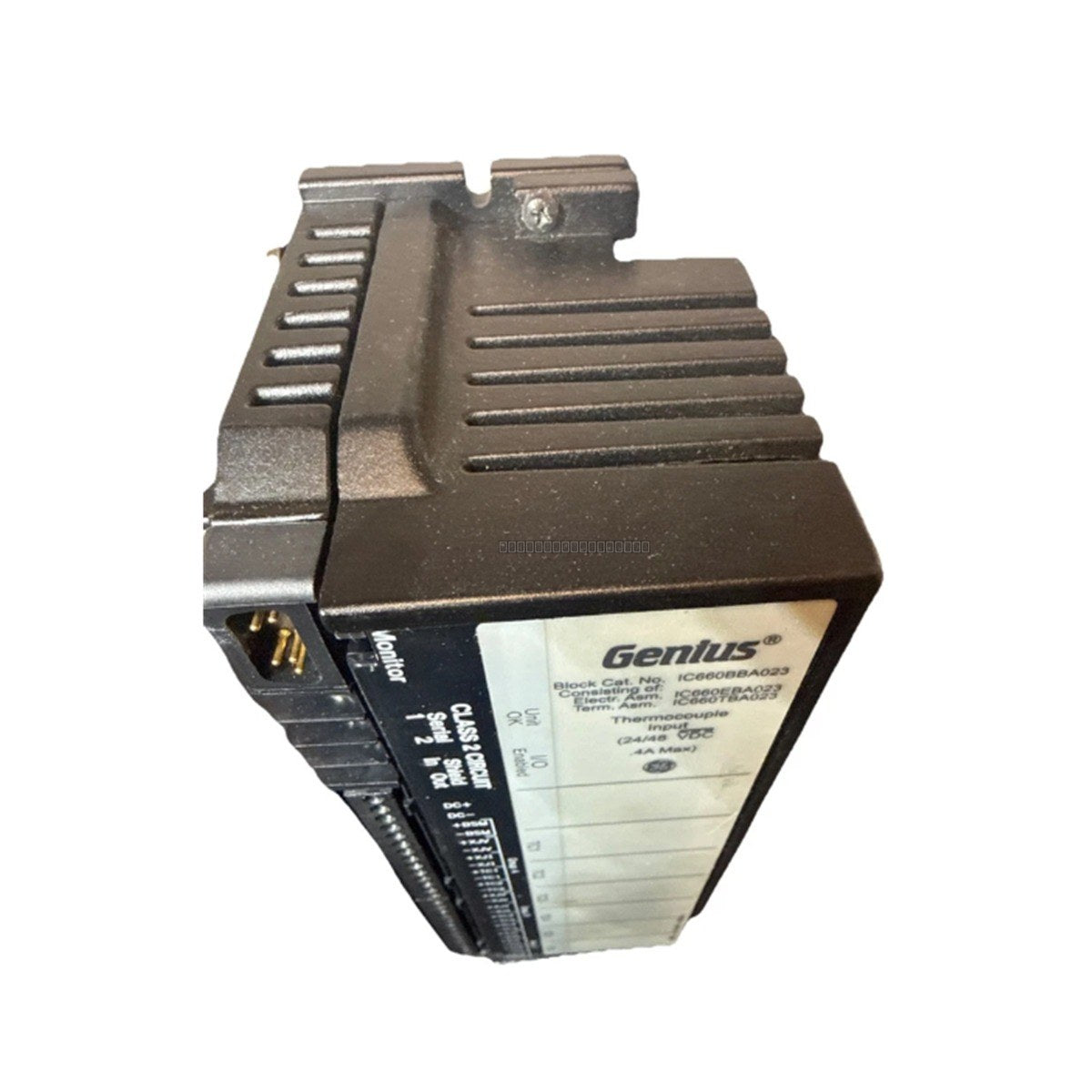

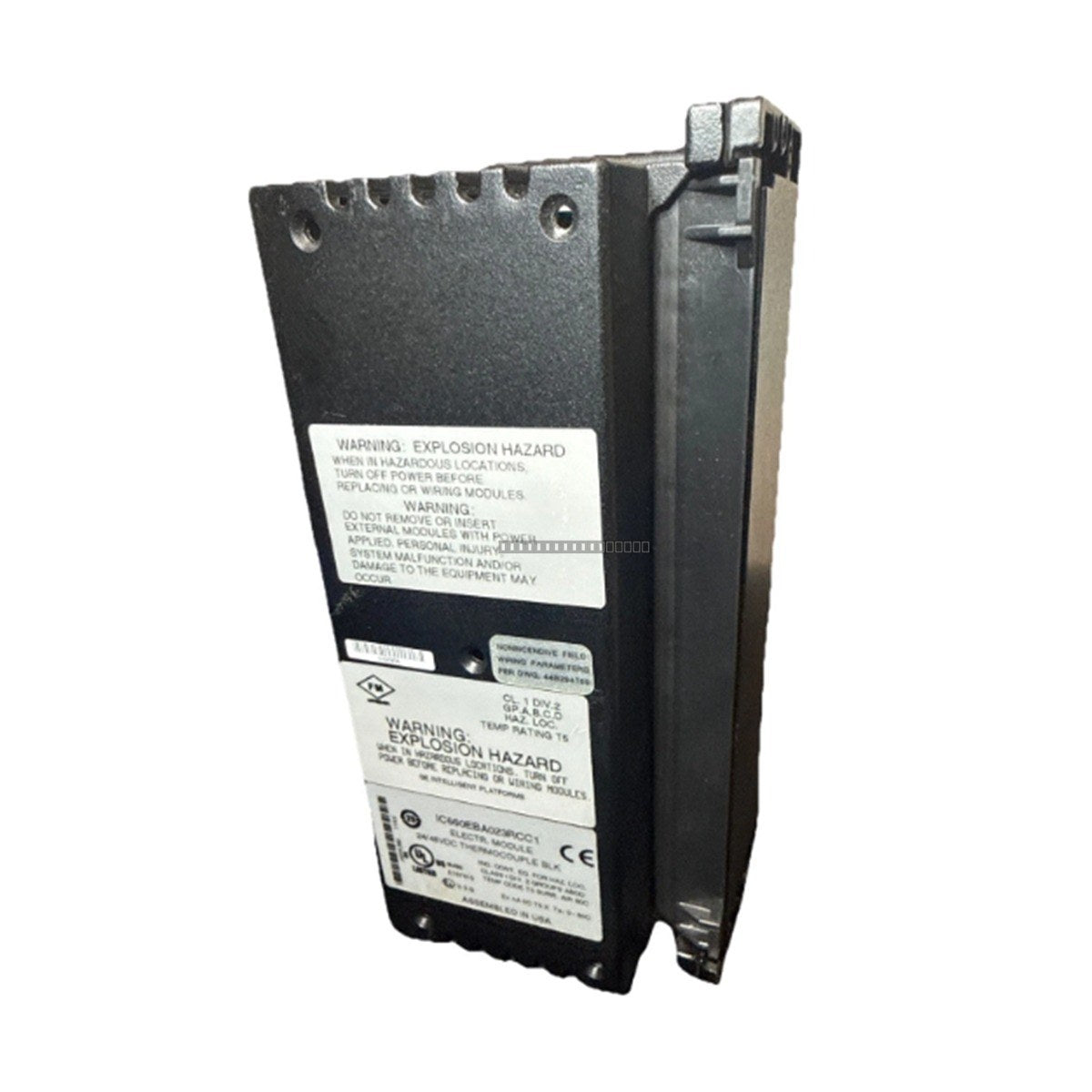

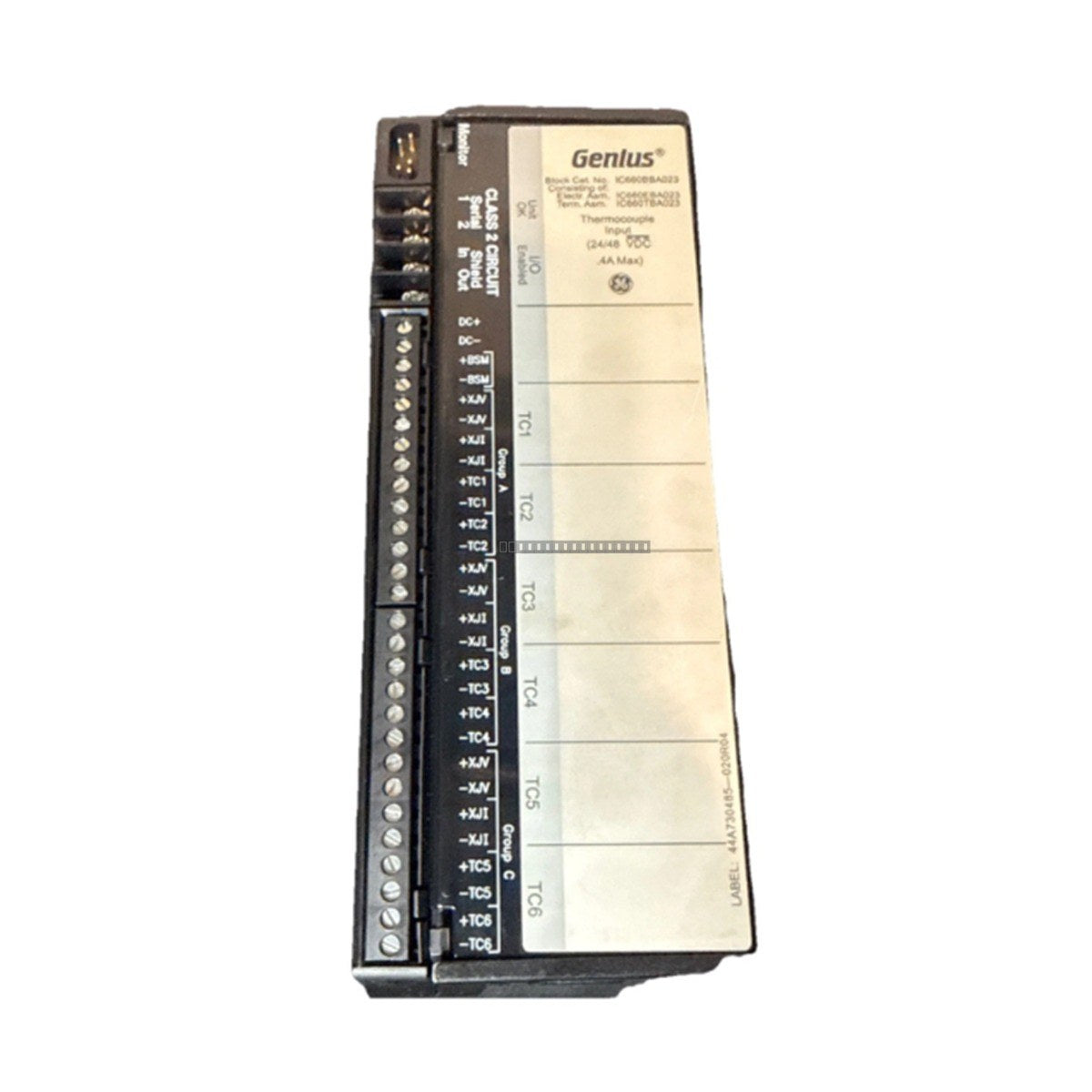

The General Electric IC660TBA023 is a terminal assembly designed for the Genius I/O system. This component serves as a critical interface for field wiring, facilitating reliable signal distribution within the Genius I/O architecture. It is engineered to support 24/48 VDC operations and provides robust electrical isolation to ensure signal integrity in industrial environments.
Features
- Designed for integration with the GE Genius I/O product series
- Supports 24/48 VDC power supply configurations
- Provides 1500 Volts of electrical isolation for system protection
- Compact design optimized for standard industrial panel mounting
- Engineered for consistent performance in demanding control environments
Technical Specifications
| Product Model |
IC660TBA023 |
| Manufacturer |
General Electric |
| Series |
Genius I/O |
| Voltage Rating |
24/48 VDC |
| Isolation |
1500 Volts |
| Power Dissipation |
9 Watts |
| Operating Temperature |
0 to 60 degC |
| Tariff Code |
8537101190 |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the terminal assembly to prevent electrical shock or equipment damage.
- Mount the unit in a clean, dry environment within an industrial enclosure to protect against dust, moisture, and extreme temperatures.
- Maintain proper clearance around the module to allow for adequate heat dissipation and airflow.
- Use appropriate wire gauges and ensure all terminal connections are tightened to the manufacturer's specified torque to prevent loose connections or signal degradation.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
- Route signal cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal accuracy.
FAQ
What is the primary function of the IC660TBA023?
The IC660TBA023 is a terminal assembly module used within the GE Genius I/O system to facilitate field wiring connections.
What is the operating temperature range for this module?
This module is designed to operate within a temperature range of 0 to 60 degC.
Is this module compatible with other Genius I/O components?
Yes, the IC660TBA023 is specifically designed for the Genius I/O series. Please verify your specific system configuration and backplane compatibility before installation.
