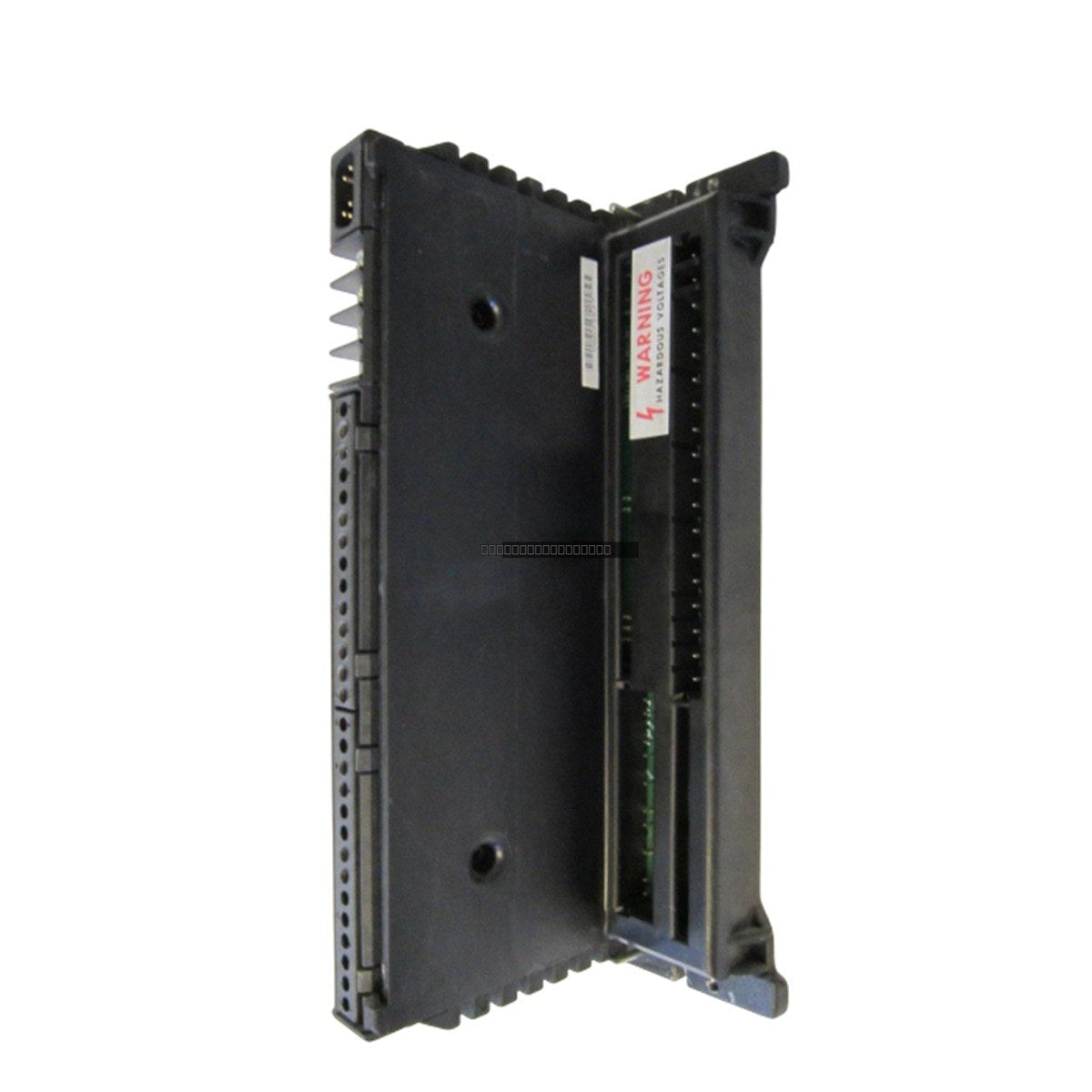

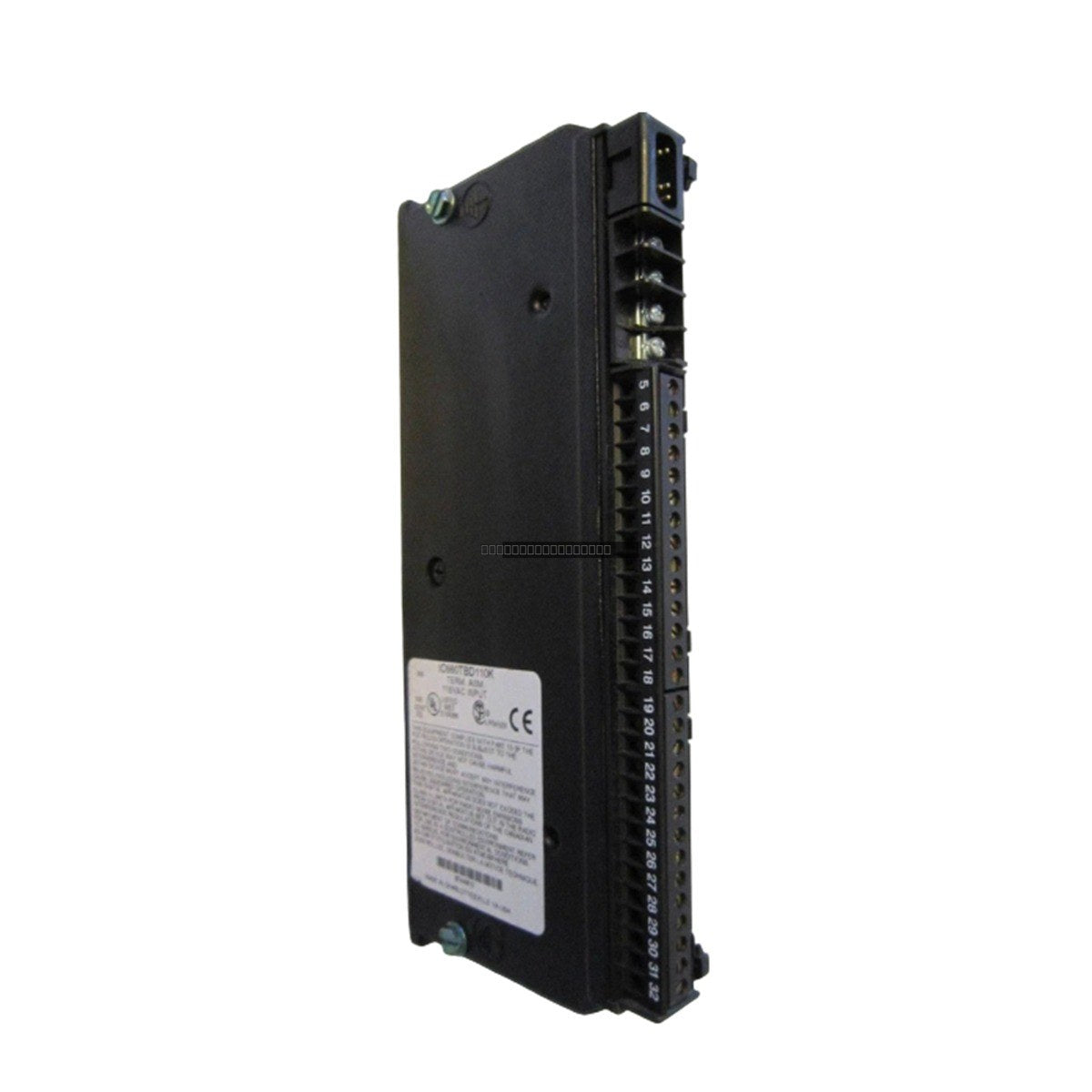

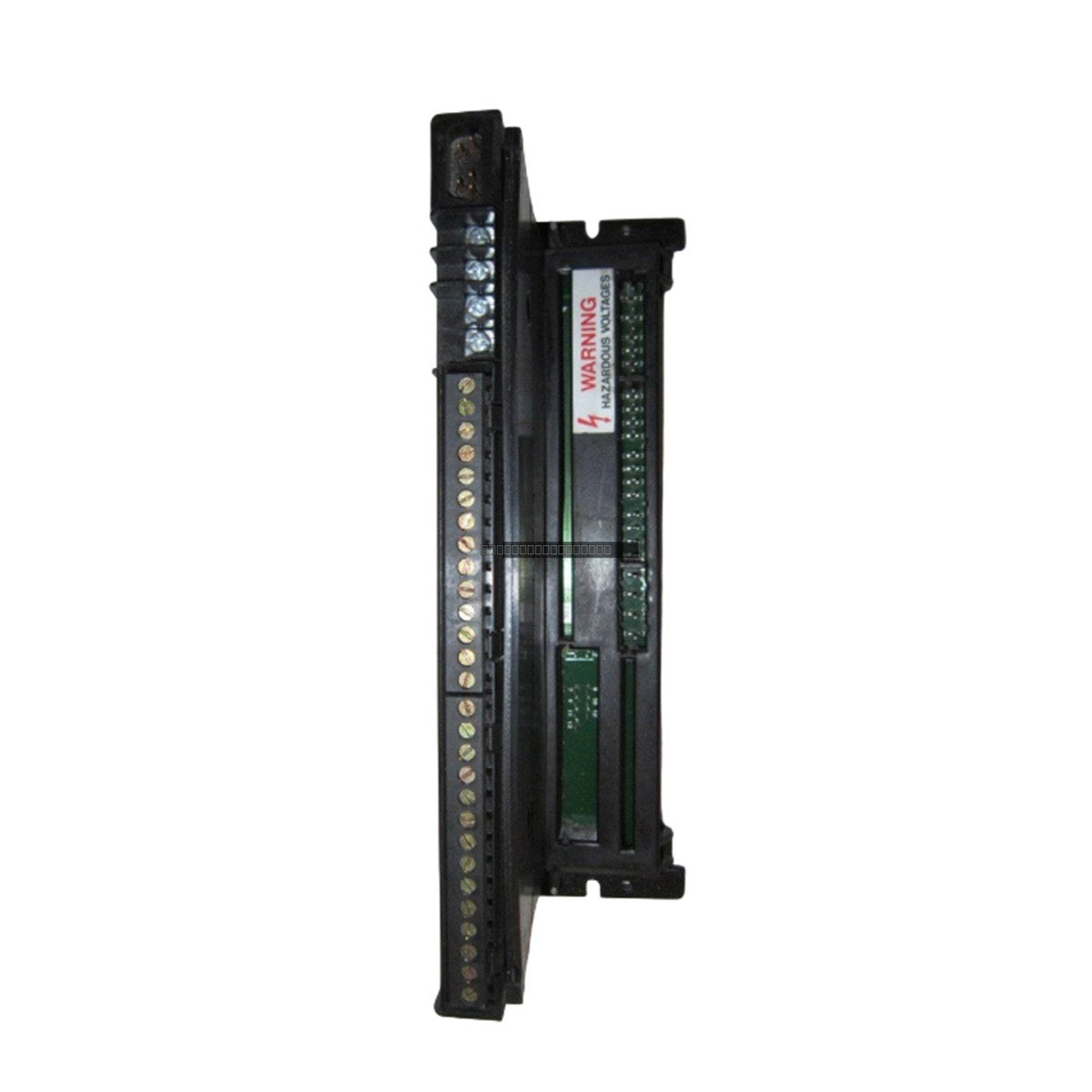

The General Electric IC660TBD110 is a Genius Block I/O module designed for industrial automation control systems. This module provides 16 input circuits, specifically engineered for 115 VAC operation within the Genius I/O series. It serves as a reliable interface for monitoring AC signal states in distributed control environments.
Features
- 16-circuit input capacity for high-density signal monitoring.
- Designed for 115 VAC nominal operation with an operating range of 93 to 132 VAC.
- Supports standard industrial power frequencies from 47 to 63 Hz.
- Robust isolation rating of 1500 Volts between input and ground for enhanced system protection.
- Optimized for integration within the GE Genius I/O distributed architecture.
Technical Specifications
| Product Model |
IC660TBD110 |
| Block Type |
16-circuit Input Module |
| Rated Voltage |
115 VAC |
| Operating Voltage Range |
93 to 132 VAC |
| Frequency |
47 to 63 Hz |
| Power Supply Dropout Time |
1 cycle |
| Input to Ground Isolation |
1500 Volts |
| Maximum Heat Dissipation |
28 Watts |
| Operating Temperature |
0 to 60 degC (32 to 140 degF) |
Installation Guidelines
- Ensure the system power is completely disconnected before installing or removing the module from the I/O bus.
- Mount the block in a location that allows for adequate airflow to manage the 28W maximum heat dissipation.
- Verify that the input voltage levels match the module's specified operating range (93-132 VAC) to prevent damage.
- Ensure proper grounding of the module chassis to maintain the 1500V isolation integrity.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
FAQ
What is the primary function of the IC660TBD110?
The IC660TBD110 is a 16-point AC input block used in the GE Genius I/O system to interface field-level 115 VAC signals with a programmable controller or host system.
What is the operating voltage range for this module?
The module is designed to operate within a voltage range of 93 to 132 VAC at a frequency of 47 to 63 Hz.
