Description

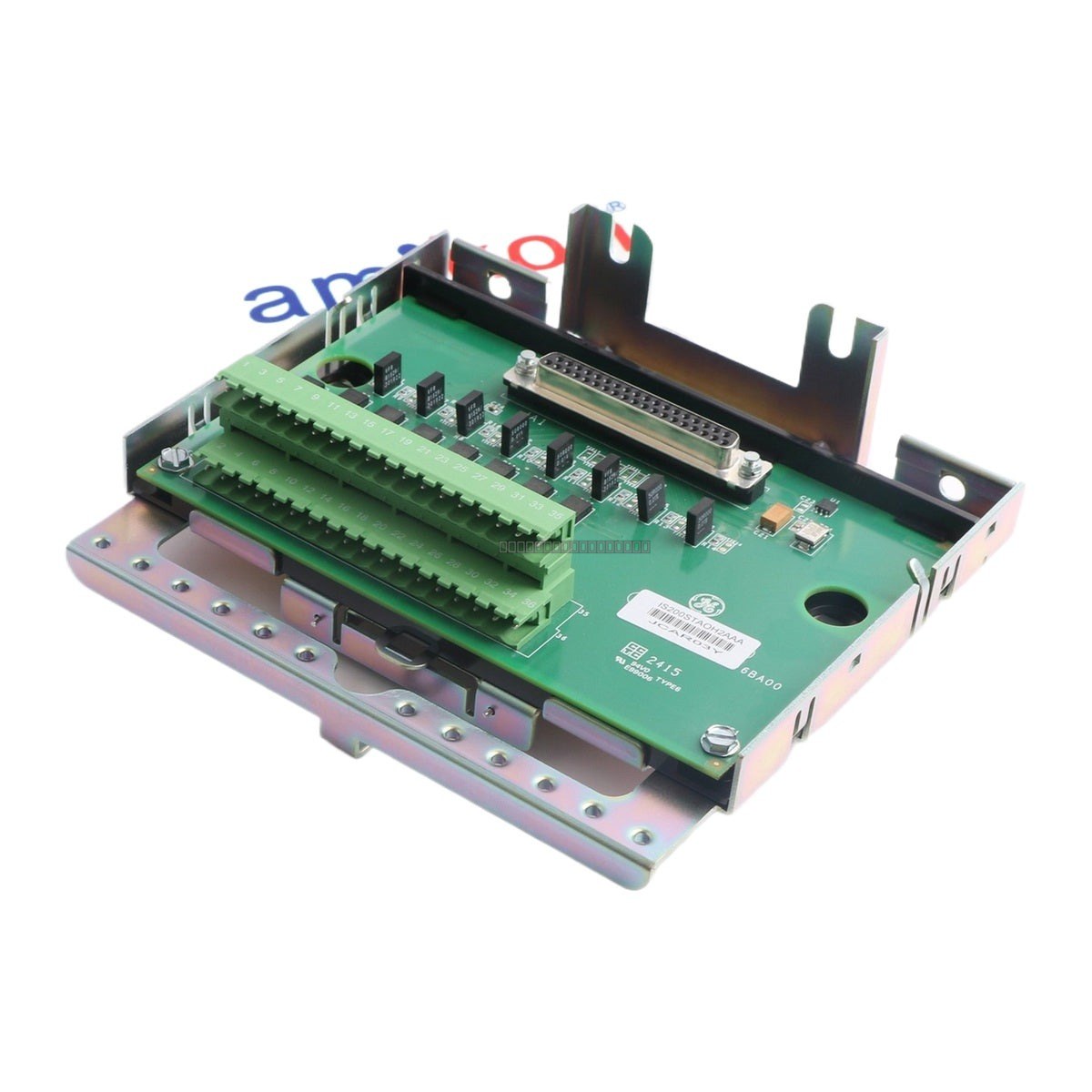

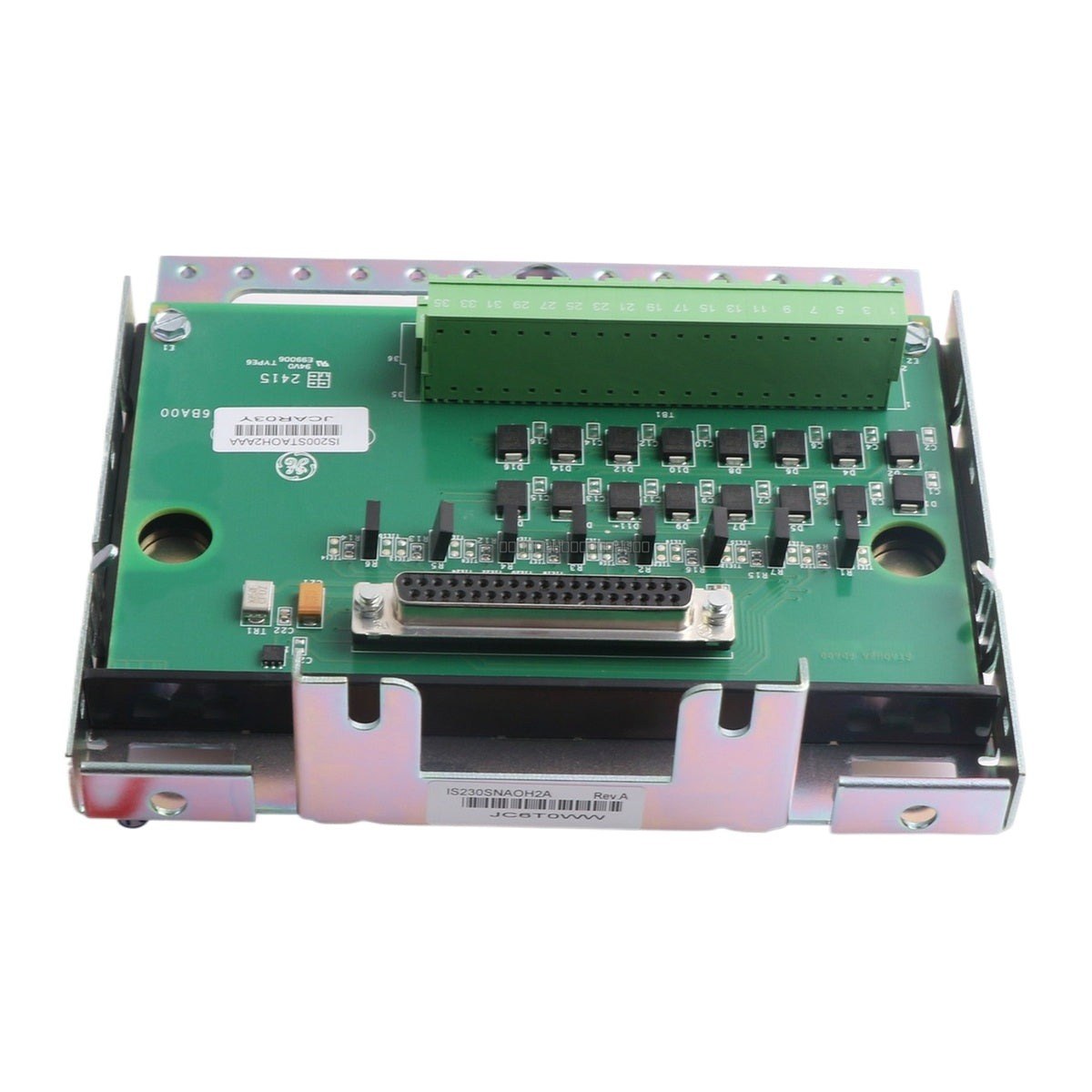

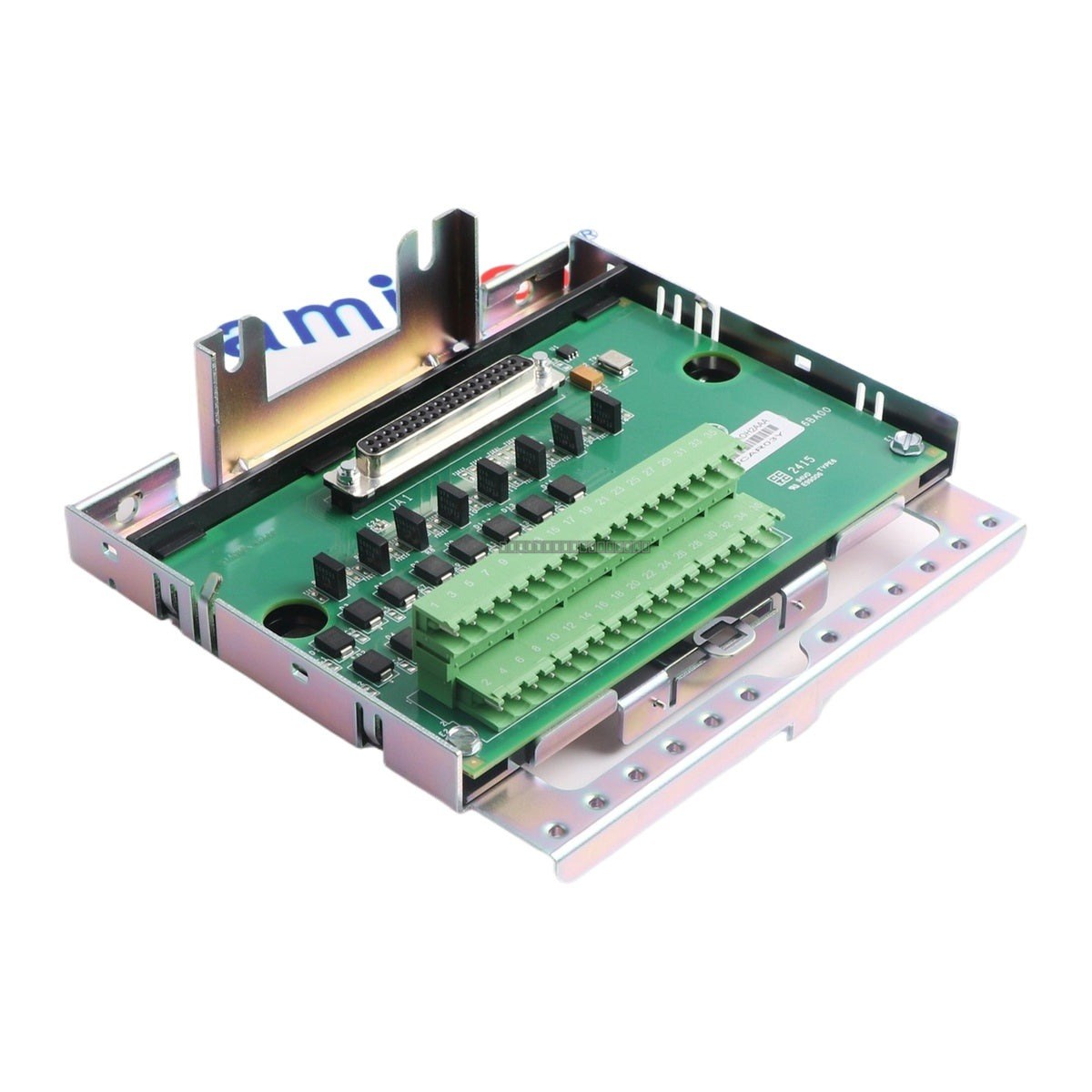

The General Electric IS230SNAOH2A is a terminal board designed for use within the Mark VIe control system. This component serves as a critical interface for analog output signals, providing reliable connectivity and signal routing for industrial control applications. As a core part of the Mark VIe series, it ensures high-performance signal integrity and system-wide compatibility.
Features
- Designed for the GE Mark VIe control series
- Supports 8 analog output channels
- Analog output current range: 0-20 mA
- Customer load resistance capacity: Up to 900 Ohms
- Utilizes surface mount technology for compact and reliable operation
- Operating temperature range: -30 to 65 degC
Technical Specifications
| Product Model |
IS230SNAOH2A |
| Spare Model |
IS200STAOH2AAA |
| Number of Channels |
8 |
| Output Current |
0-20 mA |
| Max Load Resistance |
900 Ohm |
| Operating Temperature |
-30 to 65 degC |
| Technology |
Surface mount |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the terminal board to prevent electrical damage.
- Handle the board using proper ESD (Electrostatic Discharge) protection measures to avoid damaging surface-mounted components.
- Ensure the board is securely seated in the designated Mark VIe rack slot to maintain proper electrical contact.
- Verify that all field wiring is properly terminated and shielded to minimize EMI/RFI interference.
- Maintain adequate ventilation around the control cabinet to ensure the operating temperature remains within the specified -30 to 65 degC range.
FAQ
What is the primary function of the IS230SNAOH2A?
The IS230SNAOH2A is a terminal board used in the Mark VIe system to facilitate 8 channels of analog output, typically used for controlling external actuators or process instruments.
Is the IS230SNAOH2A compatible with the IS200STAOH2AAA?
Yes, the IS200STAOH2AAA is listed as a spare or alternate model for this terminal board.
What is the maximum load resistance for this board?
The board supports a customer load resistance of up to 900 Ohms.
