Description

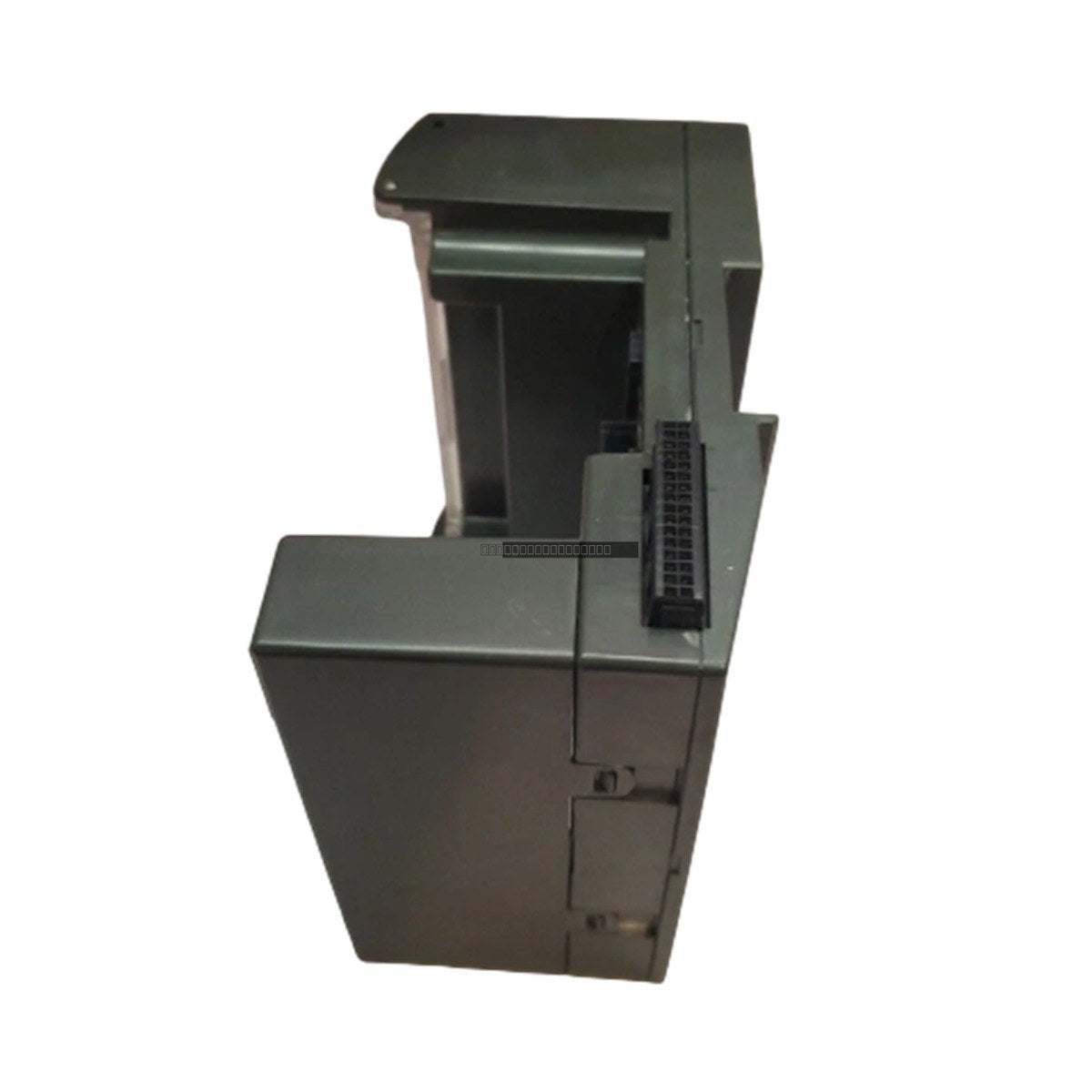

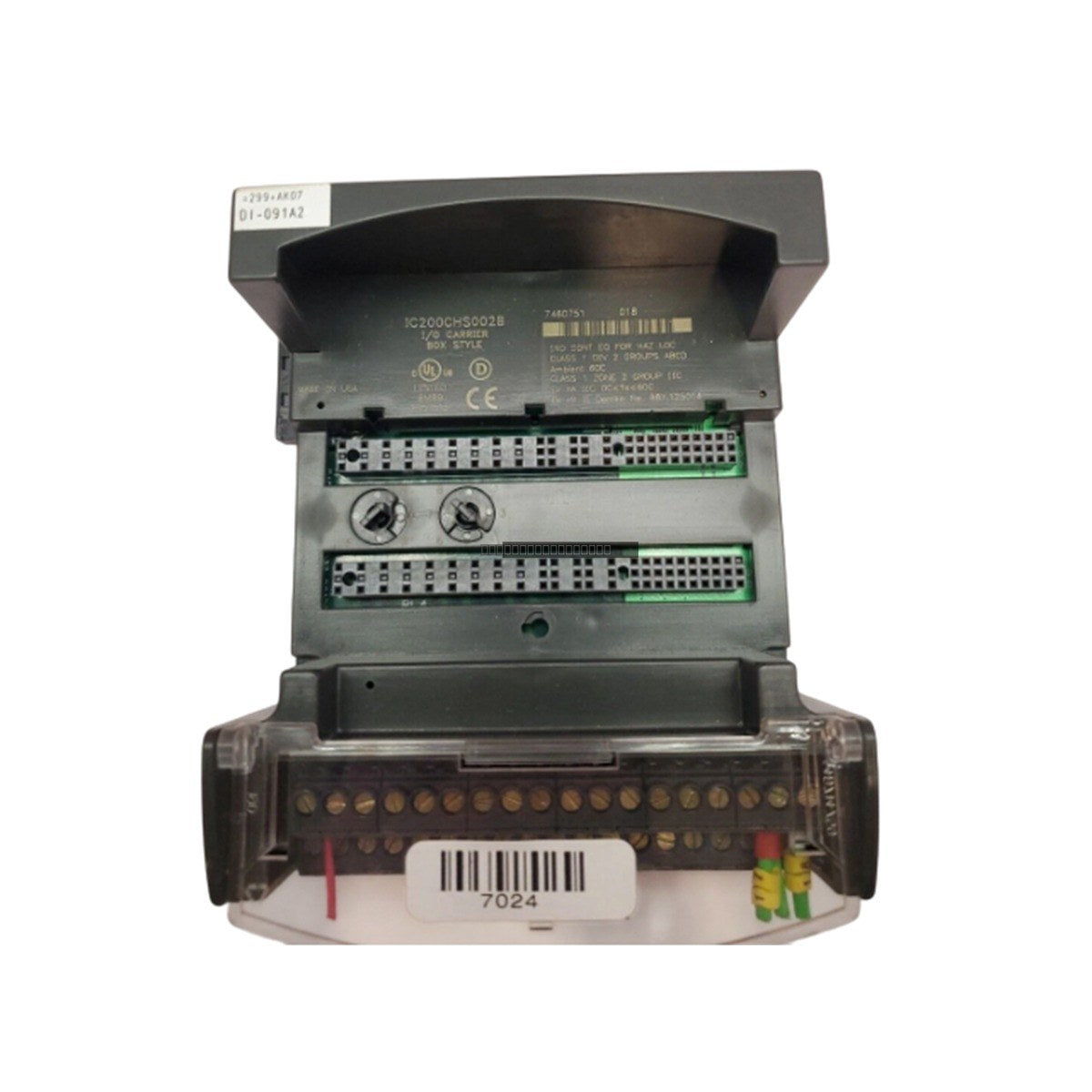

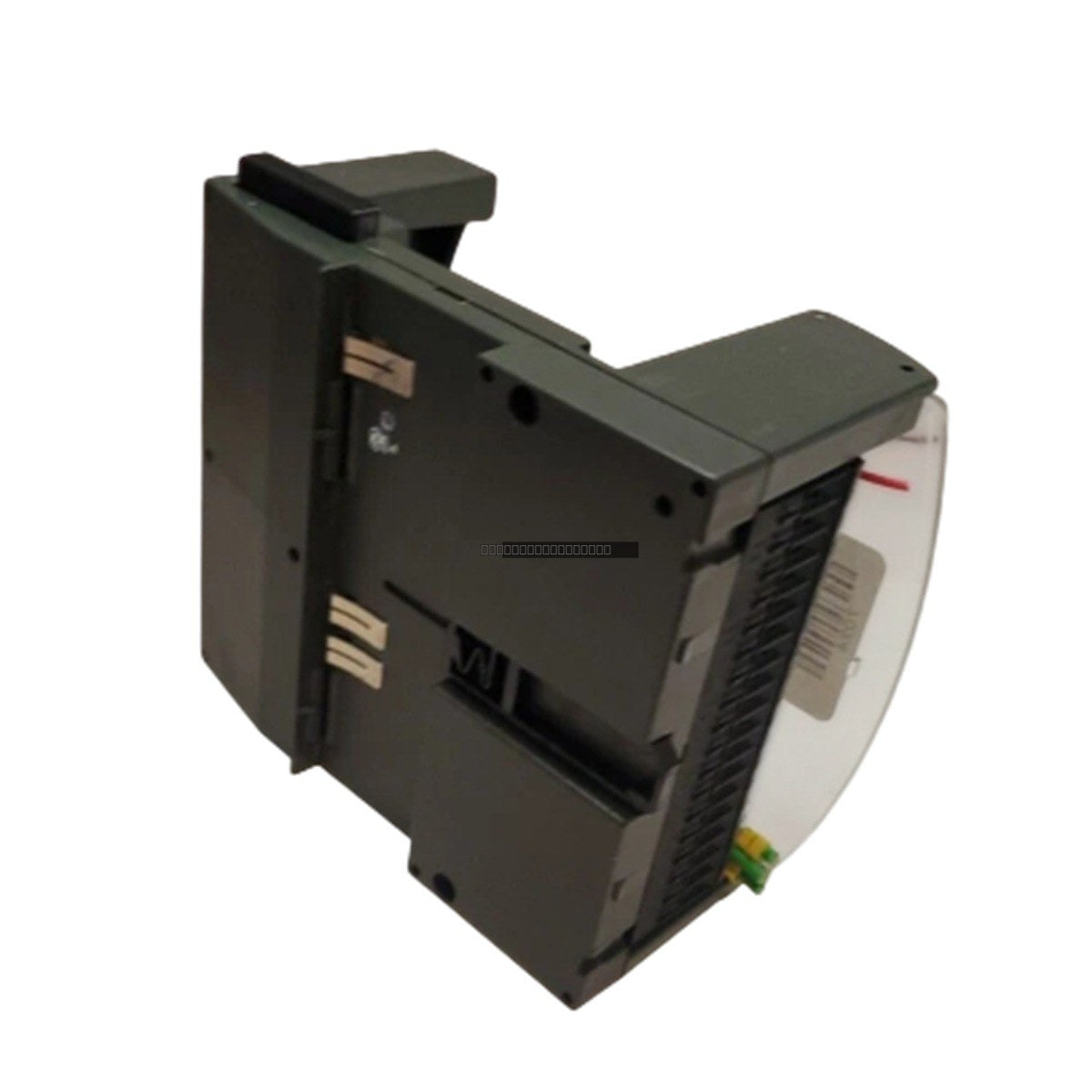

The General Electric IC200CHS002B is a box-style I/O carrier designed for the VersaMax PLC system. This carrier provides the necessary physical mounting and electrical interface for VersaMax I/O modules, facilitating reliable field wiring connections in industrial automation environments. It features an integrated terminal block design, allowing for direct connection of field devices to the I/O modules.
Features
- Designed for VersaMax I/O modules
- Box-style terminal configuration with 36 terminals
- Supports field voltages up to 264 VAC
- Integrated field termination for simplified wiring
- DIN rail mountable for standard industrial enclosures
- Supports up to 2 Amps per point current rating
Technical Specifications
| Model |
IC200CHS002B |
| Product Type |
Box-Style I/O Carrier |
| Terminal Count |
36 |
| Voltage Rating |
0-264 VAC |
| Transient Voltage Rating |
Up to 300 VAC |
| Per Point Current |
2 Amps |
| Ground/Power Segment Current |
8 Amperes |
| Mounting |
DIN Rail (Horizontal) |
| Compatible Wire Size |
AWG #14 to #22 (single); AWG #18 (two-wire) |
Installation Guidelines
- Ensure the power is disconnected from the system before installing or removing the carrier or any attached I/O modules.
- Mount the carrier on a standard DIN rail in a horizontal orientation.
- Maintain proper clearance for ventilation and maintenance: 2 inches (5.1 cm) at the top and bottom, and 1 inch (2.54 cm) on the sides.
- Use appropriate wire gauges (AWG #14 to #22) to ensure secure connections and prevent overheating.
- Follow standard ESD (Electrostatic Discharge) practices when handling the module to prevent damage to internal electronics.
- Ensure all field wiring is properly routed and secured to minimize mechanical stress on the terminals.
FAQ
What is the primary function of the IC200CHS002B?
The IC200CHS002B acts as a base carrier for VersaMax I/O modules, providing the mechanical support and electrical terminal points required to connect field sensors and actuators to the PLC system.
Can this carrier be used with non-VersaMax modules?
No, this carrier is specifically engineered for the General Electric VersaMax series and is not compatible with other PLC I/O families.
