Description
Product Overview

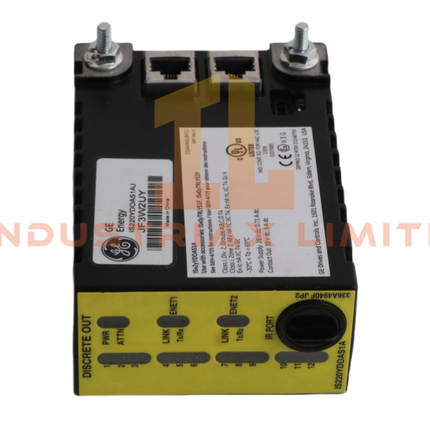

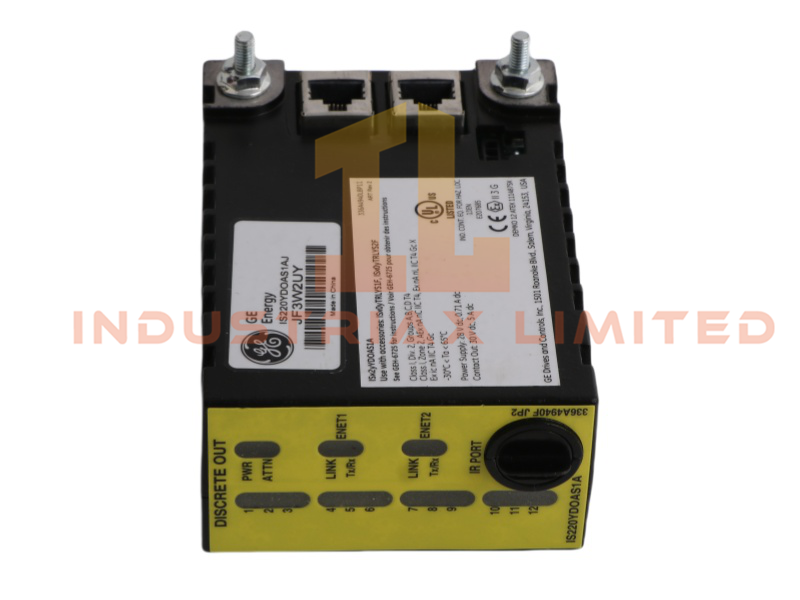

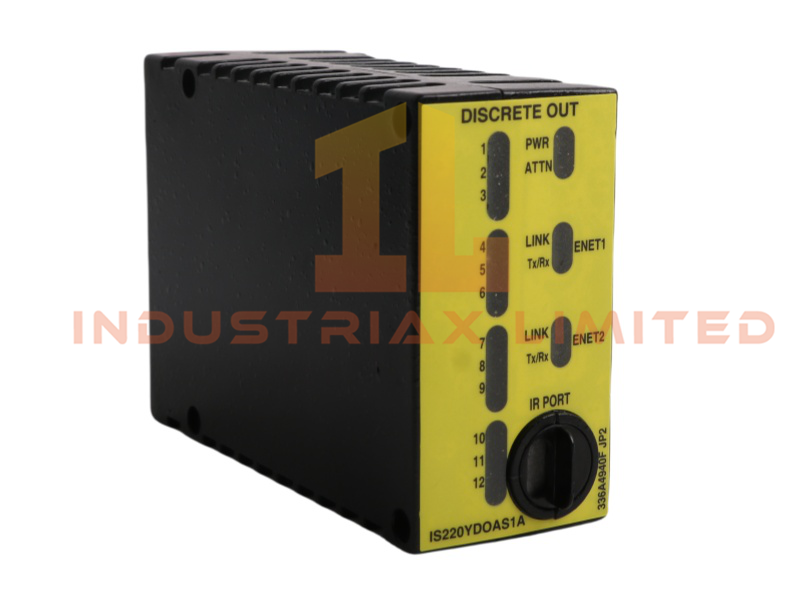

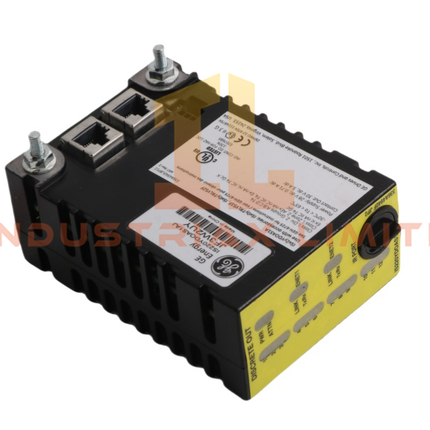

The General Electric IS220YDOAS1AJ Discrete Output I/O Pack belongs to the Mark VIe Speedtronic series, designed for turbine control in gas, steam, and wind applications. It ensures reliable digital signal transmission and integrates seamlessly with advanced automation systems.
Technical Specifications
| Parameter |
Value |
| Model Number |
IS220YDOAS1AJ |
| Manufacturer |
GE |
| Module Type |
Discrete Output I/O Pack |
| Dimensions |
24.5 × 18.5 × 8 cm |
| Weight |
0.38 kg |
| System |
DCS |
| Communication Service |
Ethernet router |
| Voltage Supply |
Nominal 28 VDC, Max 32 VDC |
| Operating Temperature |
-35°C to +65°C |
| Certifications |
UL Listed, CE Certified |
| Hazardous Location Use |
Supported (GEH-6725 compliance) |
| Compatible Boards |
IS200STCIS1A, IS400TBCIS2C
|
| Range of Product |
Mark VIe Series |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
Brand New |
| MOQ |
1 |
Functional Highlights
The IS220YDOAS1AJ features an onboard power supply supporting both contact inputs and outputs. Its modular design simplifies installation and maintenance, reducing downtime in turbine control operations. Operators benefit from enhanced durability and compliance with international safety standards.
Design and Performance
GE engineered the IS220YDOAS1AJ to withstand extreme industrial environments. Its compact dimensions and lightweight build allow efficient integration into turbine enclosures. The module’s revised design improves performance while retaining compatibility with existing Mark VIe and Mark VIeS systems.
Applications and Compatibility
The IS220YDOAS1AJ Discrete Output I/O Pack supports turbine control systems requiring precise digital output signals. It integrates with GE Fanuc terminal boards such as IS200STCIS1A and IS400TBCIS2C, making it suitable for SCADA systems, automated drive assemblies, and industrial monitoring environments.
