Description
Overview

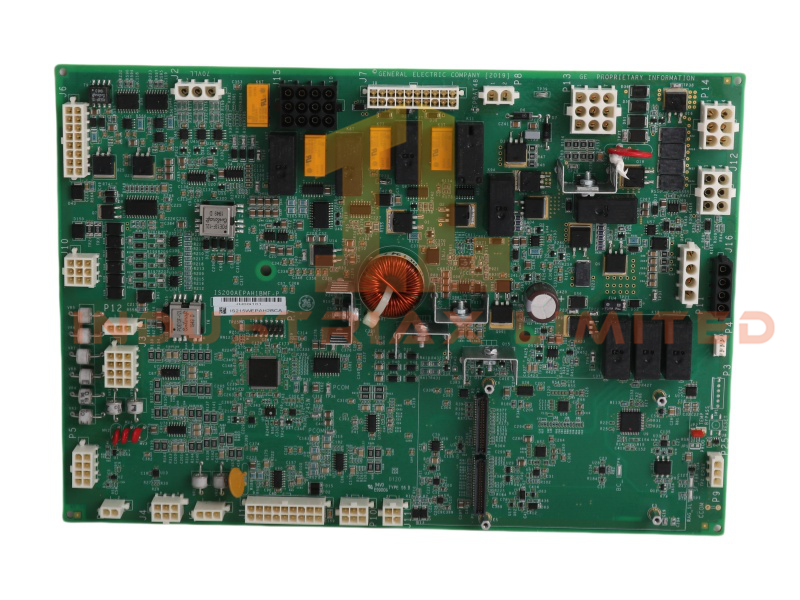

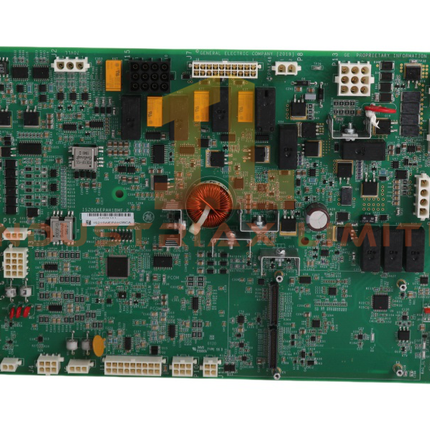

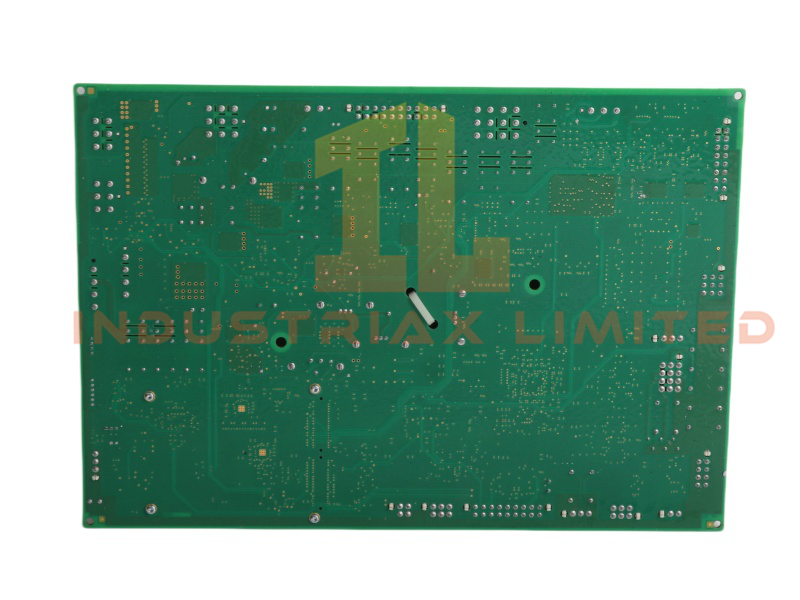

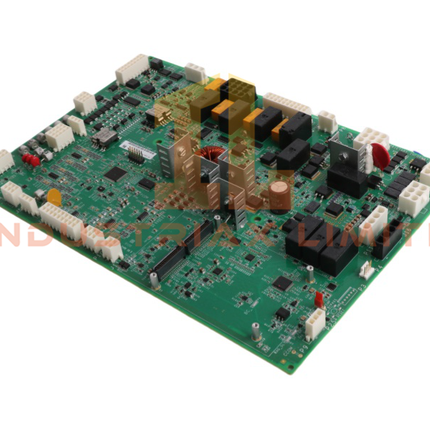

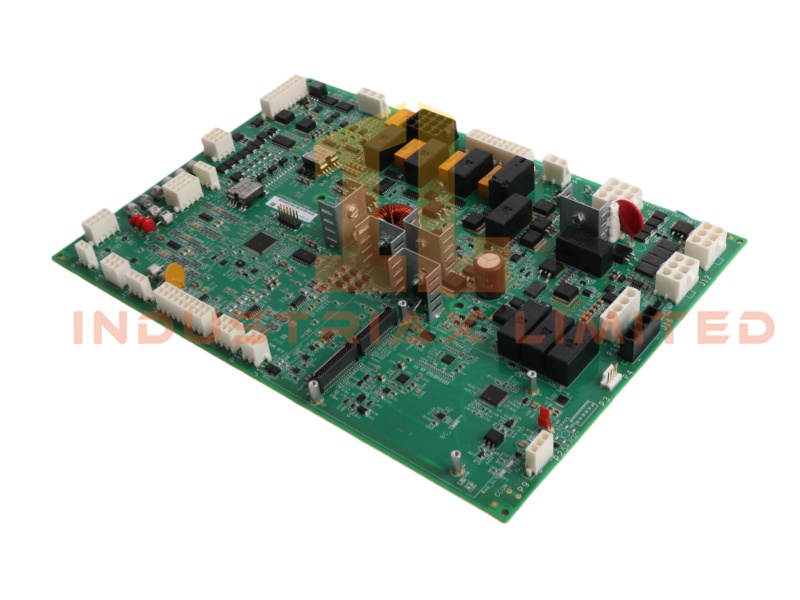

The IS215WEPAH2B printed circuit board is part of GE’s Mark VIe control platform and serves as a communication and interface module within turbine and process‑control architectures. Built for long‑term reliability, the board supports multiple communication standards and provides a rugged electrical foundation for demanding industrial environments.
Communication Interfaces
The board includes three serial communication ports—COM1, COM2, and a micro‑miniature 9‑pin D‑sub connector—allowing integration with legacy and modern control equipment. A 10BaseT/AUI Ethernet interface provides an additional communication path for networked control systems, enabling deterministic data exchange within Mark VIe architectures.
A dedicated daughterboard connector expands the module’s functional range, supporting additional I/O or specialized interface cards when required.
Mechanical and Environmental Design
The IS215WEPAH2B is engineered to withstand harsh operating conditions. Its construction supports non‑operational shock levels up to 10 g, and components are selected for durability in high‑vibration and wide‑temperature environments typical of turbine enclosures and compressor stations.
The compact form factor and robust connectors ensure secure installation and stable electrical performance. The micro‑miniature D‑sub connector provides a reliable interface for auxiliary communication devices.
System Integration
The board is compatible with both simplex and triple‑redundant Mark VIe configurations, allowing engineers to match system architecture to reliability requirements. Its communication flexibility supports integration with peripheral devices, diagnostic tools, and distributed control elements.
Whether used in power generation, oil and gas, or other critical infrastructure, the IS215WEPAH2B provides stable operation and dependable communication pathways within GE’s control ecosystem.
Technical Specifications
| Parameter |
Specification |
| Model |
IS215WEPAH2B |
| Product Type |
Printed Circuit Board |
| Brand |
GE |
| Product Range |
Mark VIe |
| Communication Ports |
COM1, COM2, micro‑miniature 9‑pin D‑sub |
| Ethernet Interface |
10BaseT / AUI |
| Shock Rating |
Up to 10 g (non‑operating) |
| Redundancy Support |
Simplex or TMR configurations |
| Expansion |
Daughterboard connector |
| Weight |
0.52 kg |
| Dimensions |
4 × 18.6 × 26.1 cm |
| HS Code |
8537101190 |
| Minimum Order |
1 unit |
| Origin |
USA |
| Availability |
In stock |
| Lifecycle Status |
Active |
Application Scenarios
-
Mark VIe turbine control systems
-
Compressor station control panels
-
Redundant communication architectures
-
Industrial environments requiring robust PCB design
FAQ
Q: Does the IS215WEPAH2B support redundant operation? A: Yes. It can operate in simplex or triple‑redundant Mark VIe configurations.
Q: What Ethernet standard does the board support? A: It includes a 10BaseT/AUI interface for network communication.
Q: Is the board suitable for high‑vibration environments? A: Its construction and component selection are optimized for turbine‑grade vibration and shock levels.
