Description
Product Overview

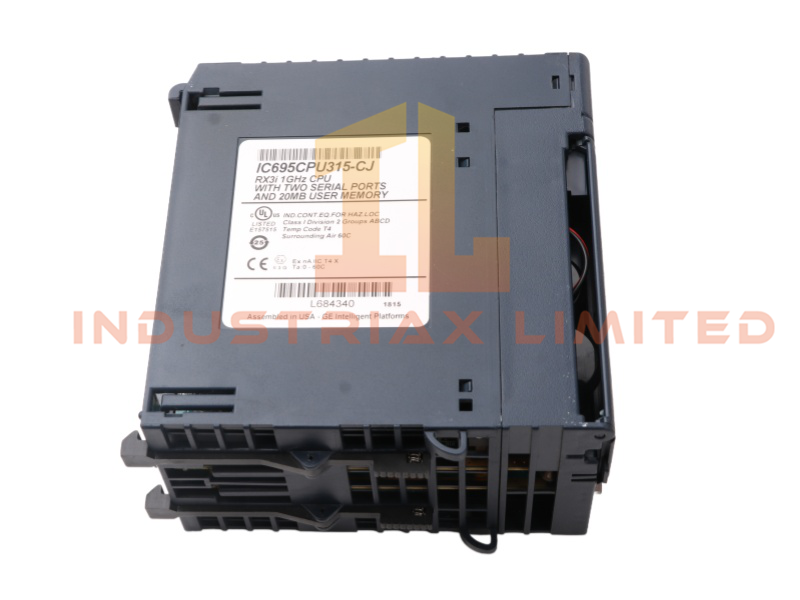

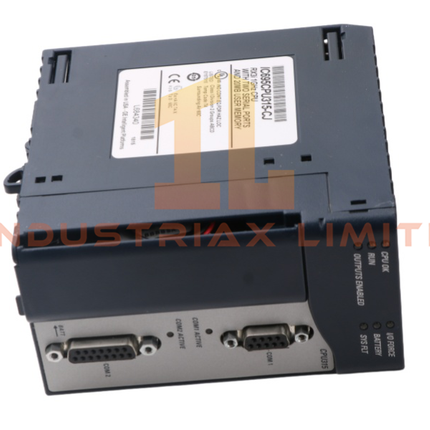

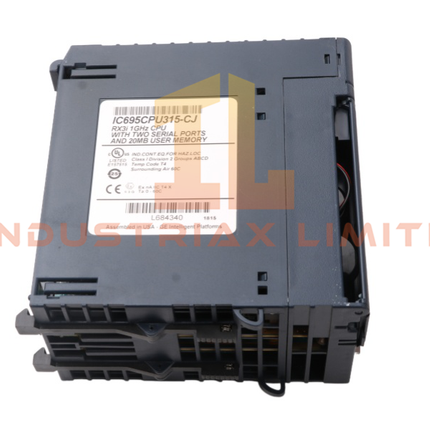

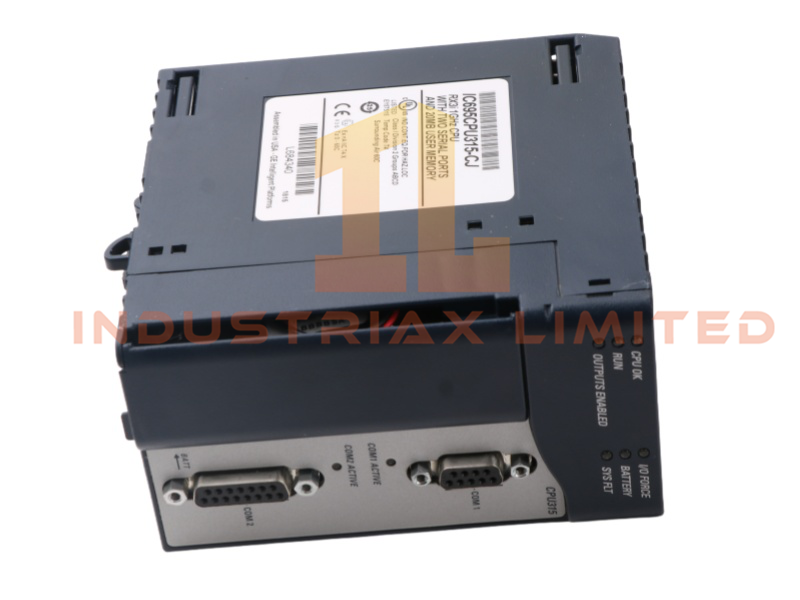

The General Electric IC695CPU315 CPU Module serves as the central processor for PACSystems Rx3i platforms. It integrates a 1.0 GHz Celeron M microprocessor with 20 MB of user memory, enabling efficient execution of complex automation tasks.
Technical Specifications
| Parameter |
Value |
| Model Number |
IC695CPU315 |
| Manufacturer |
GE |
| Module Type |
CPU Module |
| Dimensions |
8.2 × 12.2 × 6 cm |
| Weight |
0.36 kg |
| Processor |
1.0 GHz Celeron M |
| User Memory |
20 MB |
| Program Blocks |
512 blocks at 128 KB each |
| Discrete I/O |
32 kilobits |
| Analog I/O |
32 kilowords |
| Non-Volatile Memory |
20 MB NVRAM |
| Battery Backup |
Supported with IC695ACC302 |
| Serial Ports |
RS-232, RS-485 |
| Supported Protocols |
Modbus RTU slave, SNP, Serial I/O |
| Power Consumption |
1.2A at 5V DC, 1A at 3.3V DC |
| Timing Accuracy |
0.01% with 2 seconds drift per day |
| Operating Temperature |
32°F to 140°F |
| Compliance |
PCI 2.2, EU RoHS 2002/95/EC |
| System |
DCS |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
Brand New |
| MOQ |
1 |
Functional Highlights
The IC695CPU315 combines battery-backed RAM with 20 MB of NVRAM to ensure reliable data retention. Operators benefit from auto-located symbolic variables that maximize memory usage. Its dual serial ports support RS-232 and RS-485 communication, offering flexibility across industrial networks.
Design and Performance
GE engineered the IC695CPU315 CPU Module to comply with PCI standards version 2.2. The module consumes 1.2A at 5V DC and 1A at 3.3V DC, maintaining efficiency during continuous operation. Its architecture ensures minimal clock drift and precise timing accuracy for real-time control.
Applications and Compatibility
The IC695CPU315 CPU Module integrates seamlessly with GE Series 90-30 modules and expansion racks. It supports SCADA systems, machine control, and process automation, making it a versatile solution for industrial environments. Field-upgradable firmware extends its lifecycle, while compliance with EU RoHS standards ensures sustainability.
