Description
Overview
The IC660HHM501 portable monitor from General Electric’s FANUC line is a compact diagnostic and configuration tool designed for Genius I/O networks and DCS‑based control systems. It provides direct access to device parameters, system status, and troubleshooting functions without requiring a connected PLC or programming workstation.
Functional Characteristics

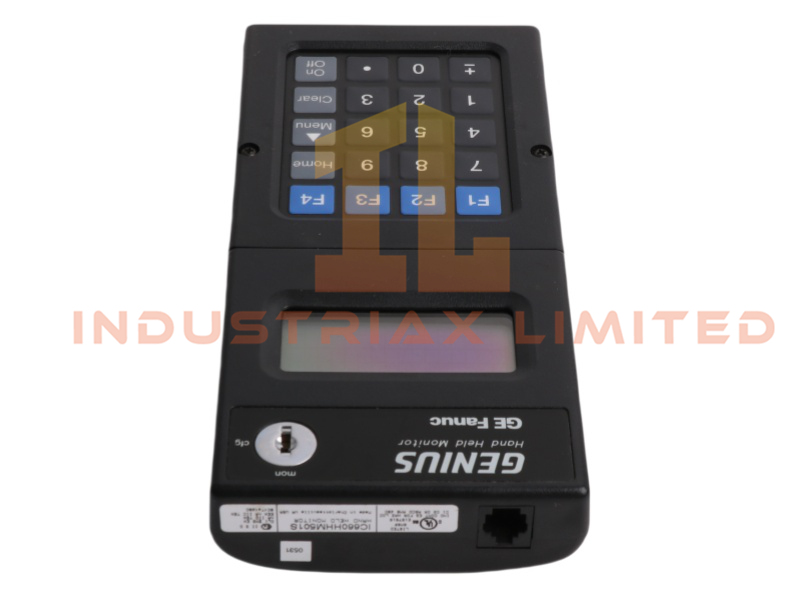

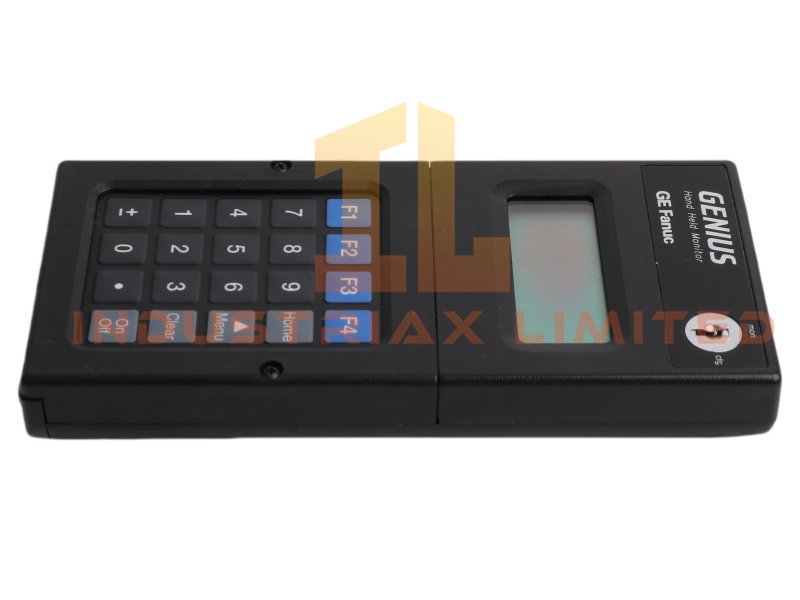

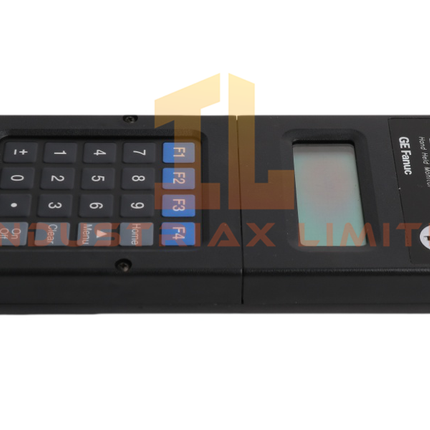

This handheld unit integrates a four‑line LCD display capable of presenting up to sixteen characters per line, offering clear visibility for configuration data and system feedback. A sealed twenty‑key membrane keypad supports navigation, data entry, and command execution in demanding industrial environments.
The monitor supports multilingual operation, including English, German, French, and Italian, making it suitable for globally deployed systems. A built‑in keyswitch provides controlled access to advanced functions, ensuring operational security during commissioning or maintenance.
Power and Connectivity
The IC660HHM501 can operate from its internal rechargeable battery pack or from external AC power sources (115 V or 230 V). This flexibility allows technicians to perform field diagnostics even in locations without available power outlets.
The device supports dual‑bus selection and can interact with Genius I/O modules for configuration, fault reset, and I/O forcing. These capabilities streamline system checkout and validation before full system integration.
Technical Specifications
| Parameter |
Specification |
| Model |
IC660HHM501 |
| Product Type |
Hand‑Held Monitor |
| Brand |
General Electric |
| Product Range |
FANUC |
| Condition |
New |
| System Compatibility |
DCS / Genius I/O |
| Display |
4‑line LCD, 16 characters per line |
| Keypad |
20‑key sealed membrane |
| Languages |
English, German, French, Italian |
| Power Options |
Internal battery, 115 V AC, 230 V AC |
| Security |
Operator access keyswitch |
| Weight |
0.45 kg |
| Dimensions |
20.4 × 9.3 × 3 cm |
| HS Code |
8537101190 |
| Minimum Order |
1 unit |
| Origin |
USA |
| Availability |
In stock |
| Lifecycle Status |
Active |
Application Scenarios
-
Field commissioning of Genius I/O networks
-
On‑site diagnostics for distributed control systems
-
Maintenance operations requiring portable configuration tools
-
Pre‑deployment system verification without PLC connectivity
FAQ
Q: Can the monitor operate without external power? A: Yes. It includes an internal battery pack for portable use.
Q: Does the unit support configuration of Genius I/O devices? A: It provides full access to device parameters, fault clearing, and I/O forcing.
Q: Is the keypad suitable for harsh environments? A: The sealed membrane design protects against dust and moisture.
