Description
Overview

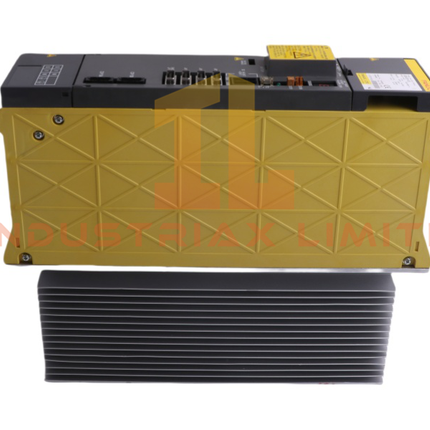

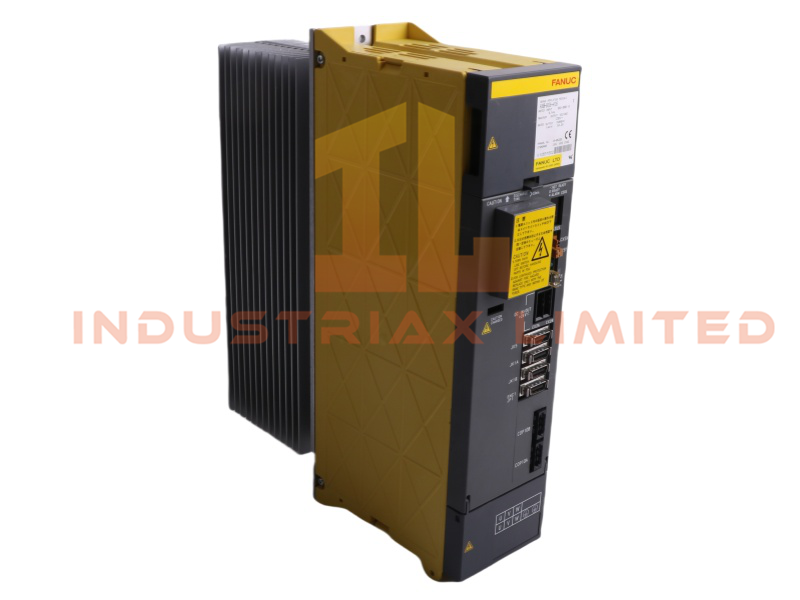

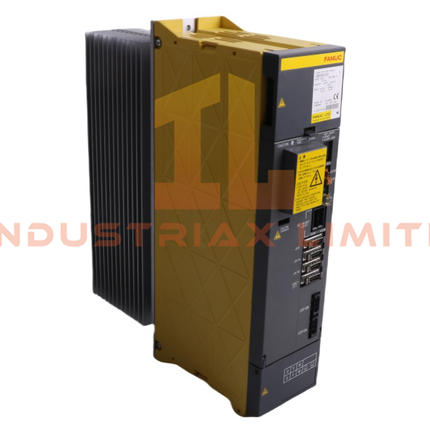

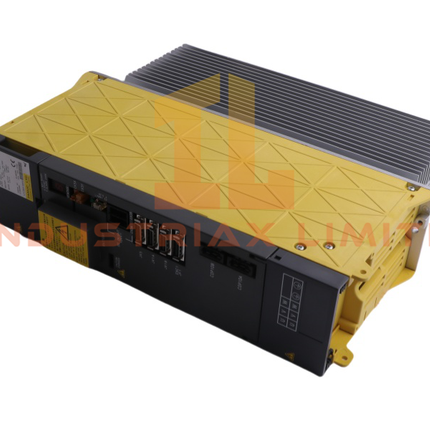

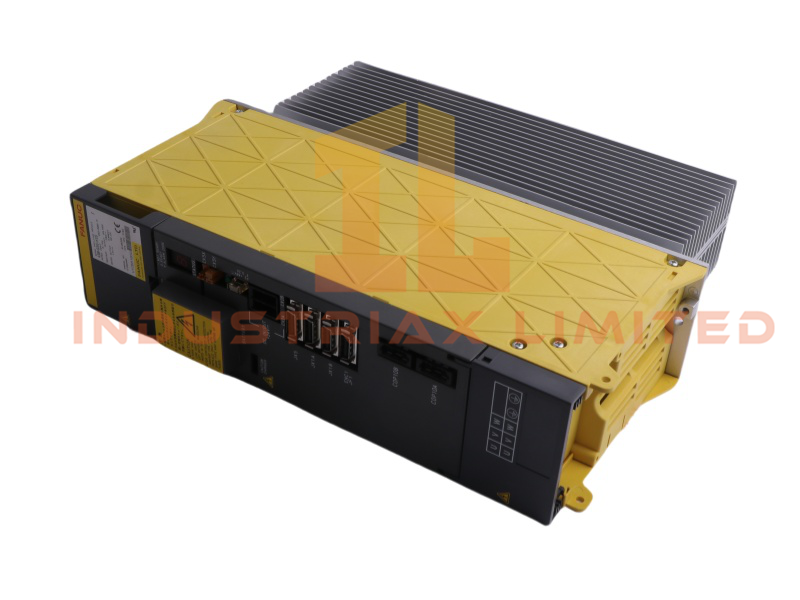

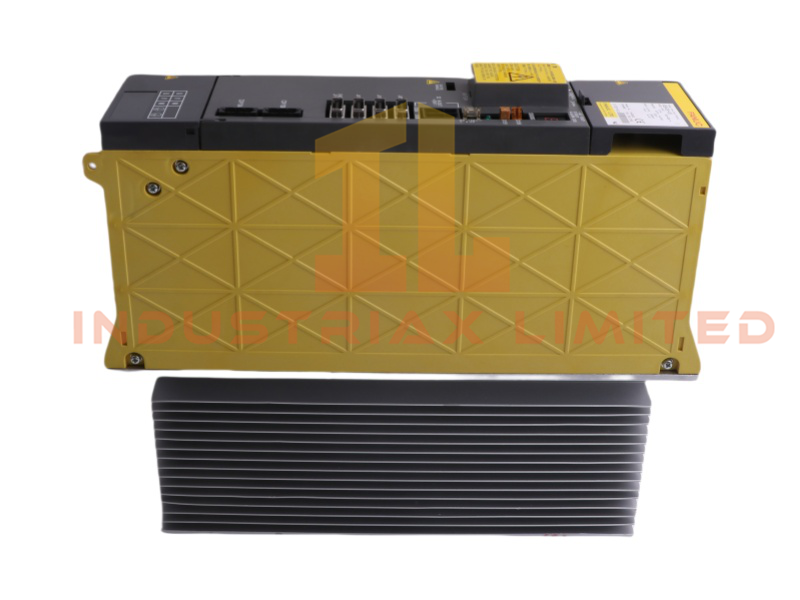

The A06B‑6290‑H106 servo amplifier module is part of GE’s FANUC motion‑control platform and is engineered to deliver precise, stable drive performance for CNC machinery. Designed for high‑speed, high‑accuracy applications, the module provides advanced current regulation, real‑time feedback processing, and robust thermal and electrical protection.
Control and Drive Performance
This amplifier is optimized for FANUC αi‑series servo motors, supporting position, velocity, and torque control modes with adaptive tuning algorithms. These control functions enable smooth motion profiles and consistent accuracy during demanding machining operations such as contouring, milling, and grinding.
The A06B‑6290‑H106 incorporates vibration‑suppression logic and rigidity‑enhancement features to maintain servo stability during rapid acceleration and deceleration. Regenerative power handling allows the unit to recover braking energy, improving overall system efficiency.
Diagnostics and Protection
Integrated status LEDs and compatibility with FANUC diagnostic software provide clear visibility into operating conditions and fault states. The amplifier includes layered protection against overcurrent, overtemperature, and input‑voltage irregularities, ensuring reliable operation in continuous‑duty environments.
EMC‑shielded circuitry minimizes electrical noise, supporting stable performance in industrial facilities with high electromagnetic interference.
Mechanical and Installation Features
The module’s compact footprint supports efficient control‑cabinet layout while maintaining adequate airflow for cooling. Its rugged construction and component selection are suitable for long‑term use in CNC machining centers, automated production lines, and precision manufacturing systems.
Technical Specifications
| Parameter |
Specification |
| Model |
A06B‑6290‑H106 |
| Product Type |
Servo Amplifier Module |
| Brand |
General Electric |
| Product Range |
FANUC |
| Motor Compatibility |
FANUC αi servo motors |
| Control Modes |
Position, velocity, torque |
| Protection |
Overcurrent, overtemperature, voltage monitoring |
| Diagnostics |
LED indicators, FANUC software support |
| Regeneration |
Built‑in regenerative power management |
| EMC Design |
Shielded circuitry |
| Weight |
6 kg |
| Dimensions |
8.8 × 32.5 × 38 cm |
| HS Code |
8537101190 |
| Minimum Order |
1 unit |
| Origin |
USA |
| Availability |
In stock |
| Lifecycle Status |
Active |
Application Scenarios
-
CNC machining centers requiring micron‑level precision
-
High‑speed milling and grinding systems
-
Automotive and aerospace component manufacturing
-
Multi‑axis motion systems using FANUC servo technology
FAQ
Q: Is the A06B‑6290‑H106 compatible with αi‑series motors? A: Yes. It is specifically designed for FANUC αi servo motors.
Q: Does the amplifier support regenerative braking? A: It includes regenerative power management to improve energy efficiency.
Q: How are faults diagnosed? A: Through onboard LED indicators and FANUC maintenance software.
