Product Overview

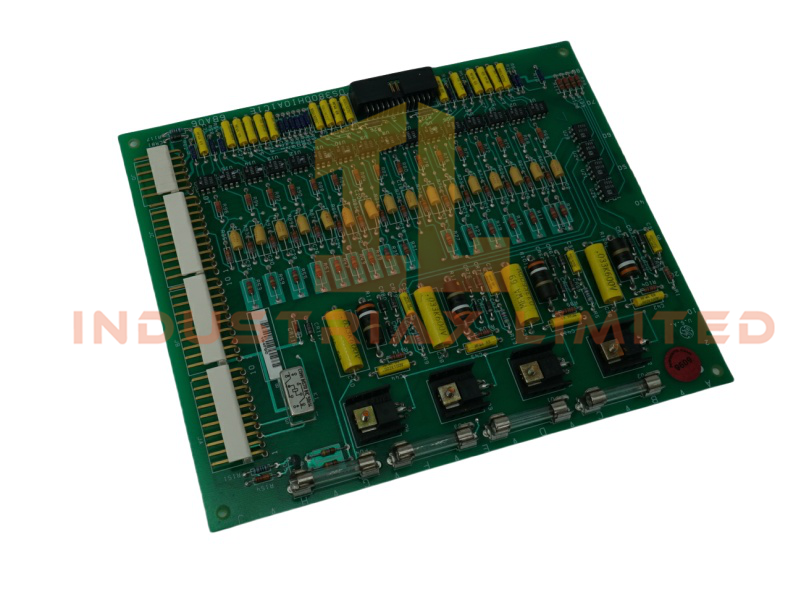

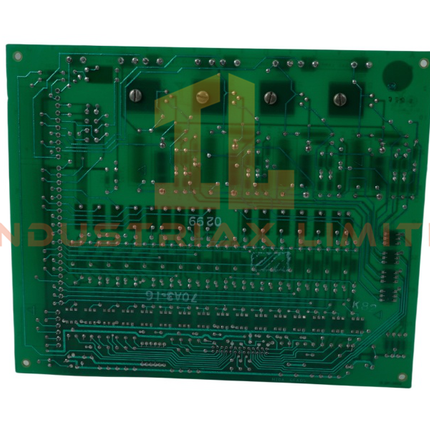

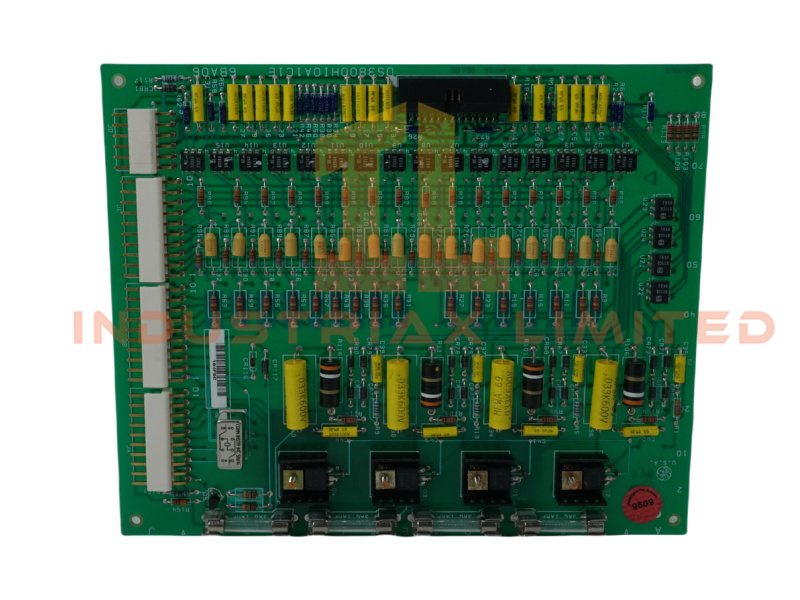

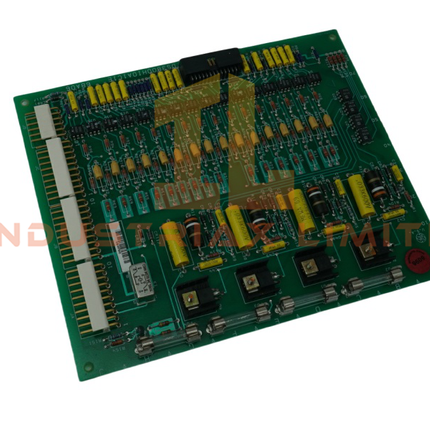

The General Electric DS3800HIOA1C1E belongs to the Mark IV Speedtronic series and functions as an input isolator board. Engineers use this PCB to manage turbine control signals while ensuring electrical isolation and diagnostic capability. Its compact design, measuring 22.9 × 18.7 × 1.8 cm and weighing 0.26 kg, supports reliable integration into DCS environments.
Technical Specifications
| Parameter |
Specification |
| Model Number |
DS3800HIOA1C1E |
| Module Type |
Input Isolator Board |
| Manufacturer |
GE |
| Series |
Multilin / Speedtronic Mark IV |
| System |
DCS |
| Dimensions |
22.9 × 18.7 × 1.8 cm |
| Weight |
0.26 kg |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Origin |
USA |
| Lead Time |
In Stock |
| MOQ |
1 |
| Status |
Active |
| Communication Service |
Ethernet router |
| Processor |
Integrated microprocessor |
| Memory |
EPROM modules |
| Connector |
34-pin connector |
| Diagnostics |
Test points for performance checks |
| Safety |
Fuse protection for overload |
Functional Highlights
The GE DS3800HIOA1C1E integrates a microprocessor and EPROM modules to manage turbine input signals effectively. Engineers rely on its 34-pin connector for seamless integration with Mark IV systems. Built-in test points simplify diagnostics, allowing technicians to evaluate performance quickly.
Fuse protection ensures circuit safety, while static protective handling is required during servicing. The DS3800HIOA1C1E continues to serve legacy turbine systems due to its Speedtronic technology, offering durability and long-term reliability.
Applications and Compatibility
The General Electric DS3800HIOA1C1E supports turbine control systems in industrial power generation, including steam and gas turbines. Operators deploy this board in environments requiring stable input isolation, diagnostic capability, and reliable protection.
Compatibility with the Speedtronic Mark IV series ensures smooth integration, while its rugged construction reduces downtime and maintenance costs. The DS3800HIOA1C1E remains a trusted solution for maintaining and servicing legacy GE turbine control systems.
