Description
Product Overview

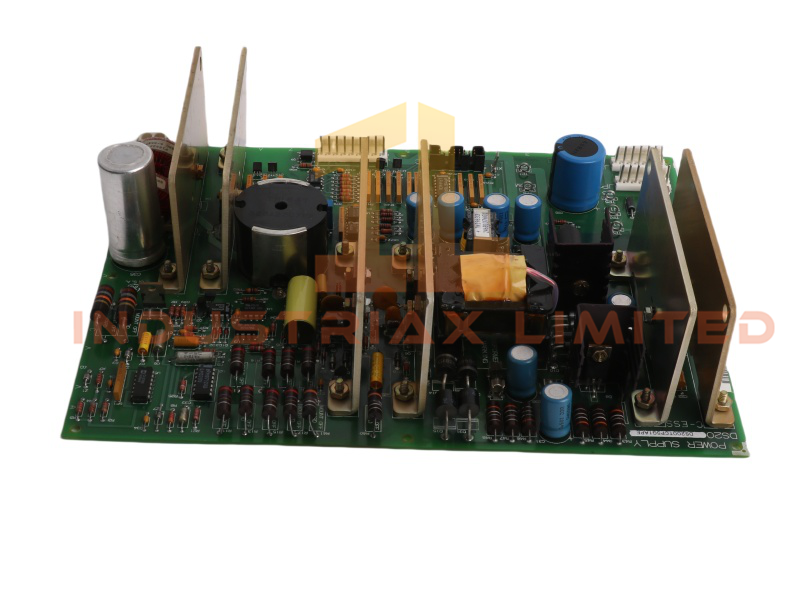

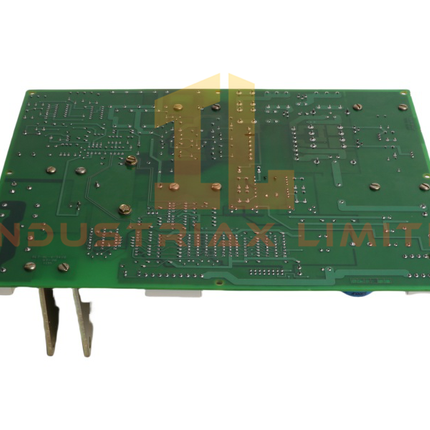

The General Electric DS200TCPSG1ARE belongs to the Mark V Speedtronic series and functions as a DC input power supply board. Engineers use this module to convert 125 VDC input into multiple voltages, including +5 VDC, +12 VDC, +24 VDC, and -24 VDC. Its robust design, measuring 28 × 21.3 × 6.8 cm and weighing 1.2 kg, ensures reliable integration into DCS turbine control systems.
Technical Specifications
| Parameter |
Specification |
| Model Number |
DS200TCPSG1ARE |
| Module Type |
DC Power Supply Input Board |
| Manufacturer |
GE |
| Series |
Multilin / Speedtronic Mark V |
| System |
DCS |
| Dimensions |
28 × 21.3 × 6.8 cm |
| Weight |
1.2 kg |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Origin |
USA |
| Lead Time |
In Stock |
| MOQ |
1 |
| Status |
Active |
| Communication Service |
Ethernet router |
| Input Voltage |
125 VDC |
| Output Voltages |
+5 VDC, +12 VDC, +24 VDC, -24 VDC |
| Connectors |
One 16-pin, one 9-pin |
| Test Points |
Integrated for diagnostics |
| Fuses |
Three replaceable, clamp-secured |
Functional Highlights
The GE DS200TCPSG1ARE provides multiple voltage outputs to support turbine control components. Engineers benefit from integrated test points that simplify diagnostics and troubleshooting. Three replaceable fuses protect circuits from electrical surges, ensuring safe and reliable operation.
Its connectors allow seamless integration with other Mark V system boards, while factory-drilled insulated mounting holes enhance installation safety. The DS200TCPSG1ARE continues to serve legacy turbine systems due to its Speedtronic technology, offering durability and long-term performance.
Applications and Compatibility
The General Electric DS200TCPSG1ARE supports wind, steam, and gas turbine control systems within the Speedtronic Mark V series. Operators deploy this board in industrial power generation environments requiring stable DC input conversion and advanced protection features.
Compatibility with other Mark V modules ensures smooth integration, while its rugged construction reduces downtime and maintenance costs. The DS200TCPSG1ARE remains a trusted solution for maintaining legacy GE turbine control systems and extending operational reliability.
