Description
Product Overview

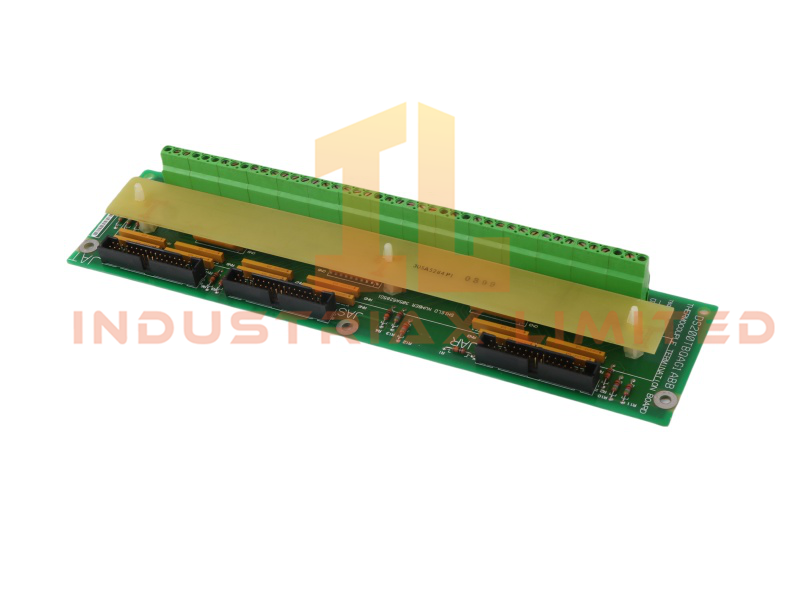

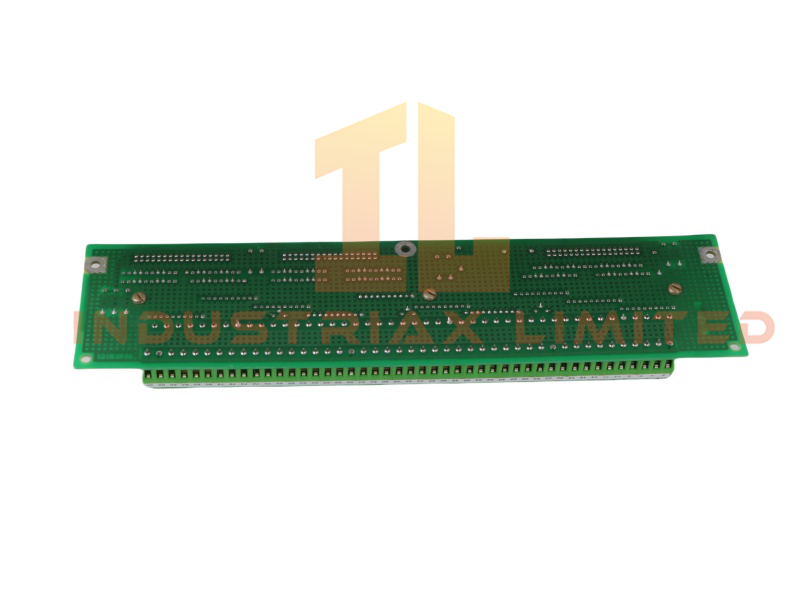

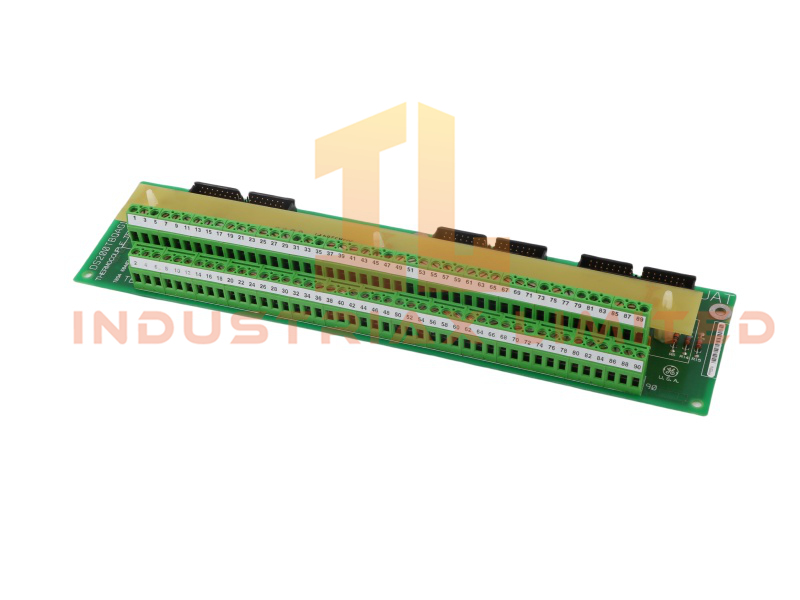

The General Electric DS200TBQAG1ABB belongs to the Speedtronic Mark V series and functions as a thermocouple termination module. Engineers use this board to connect turbine control signals efficiently, ensuring reliable integration into DCS systems. Its compact design, measuring 28.6 × 7 × 4 cm and weighing 0.34 kg, supports robust installation in demanding industrial environments.
Technical Specifications
| Parameter |
Specification |
| Model Number |
DS200TBQAG1ABB |
| Module Type |
Thermocouple Termination Module |
| Manufacturer |
GE |
| Series |
Multilin / Speedtronic Mark V |
| System |
DCS |
| Dimensions |
28.6 × 7 × 4 cm |
| Weight |
0.34 kg |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Origin |
USA |
| Lead Time |
In Stock |
| MOQ |
1 |
| Status |
Active |
| Communication Service |
Ethernet router |
| Terminal Blocks |
Two 90-pin (TB1, TB2) |
| Signal Capacity |
Up to 180 signal wires |
| Connectors |
Three 20-pin connectors |
| Revisions |
Three major updates |
| Jumpers Required |
None, specialized connectors used |
Functional Highlights
The GE DS200TBQAG1ABB integrates two 90-pin terminal blocks, enabling connection of up to 180 signal wires. Engineers rely on three 20-pin connectors to enhance compatibility with turbine control systems. Unlike other boards, the DS200TBQAG1ABB eliminates the need for manual jumpers, simplifying installation and reducing setup time.
Its durable construction ensures long-term reliability, while revisions improve performance in turbine management. The DS200TBQAG1ABB remains a critical component for maintaining legacy Mark V systems, offering efficient signal termination and robust connectivity.
Applications and Compatibility
The General Electric DS200TBQAG1ABB supports wind, steam, and gas turbine control systems within the Speedtronic Mark V series. Operators deploy this module in industrial power generation environments requiring precise thermocouple signal management.
Compatibility with other Mark V boards ensures smooth integration, while its rugged design reduces downtime and maintenance costs. The DS200TBQAG1ABB continues to serve as a trusted solution for engineers maintaining GE’s legacy turbine control systems.
