Description
Product Overview

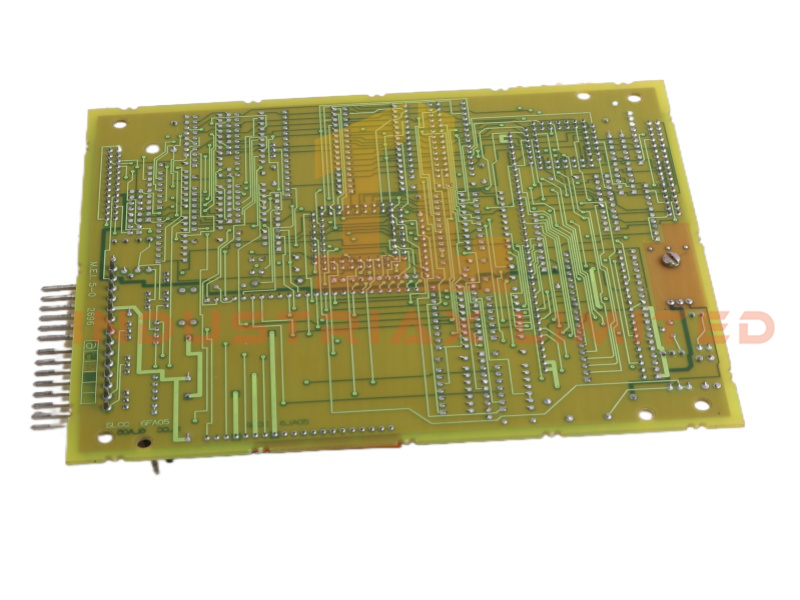

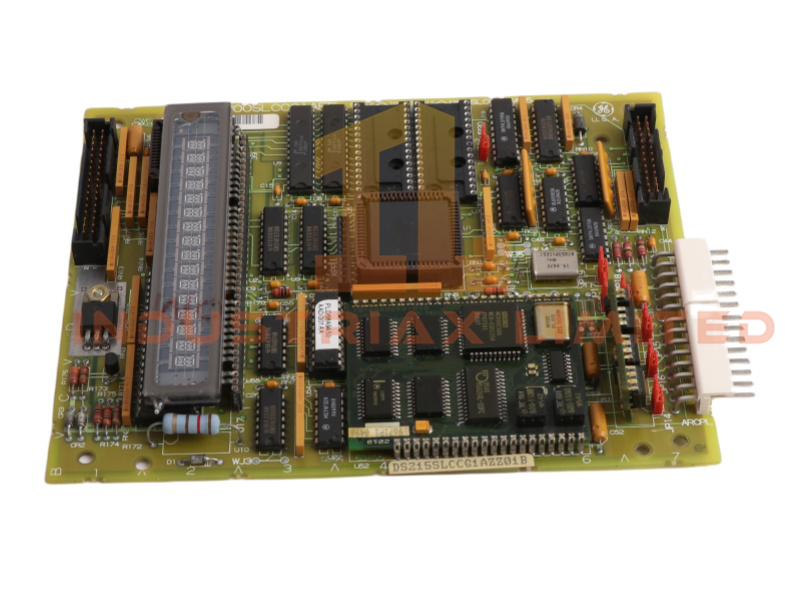

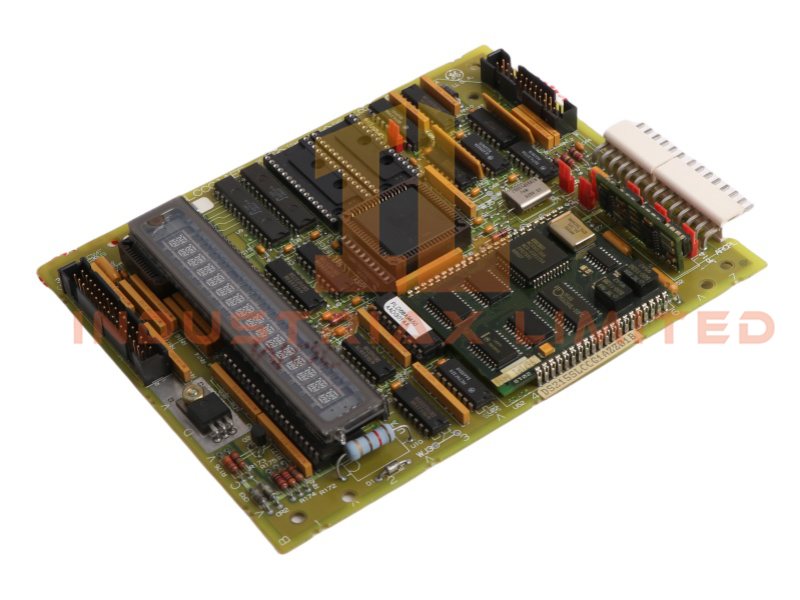

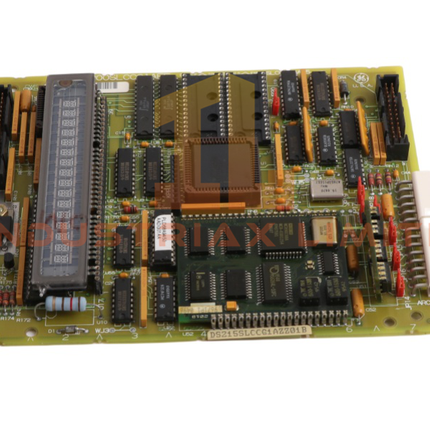

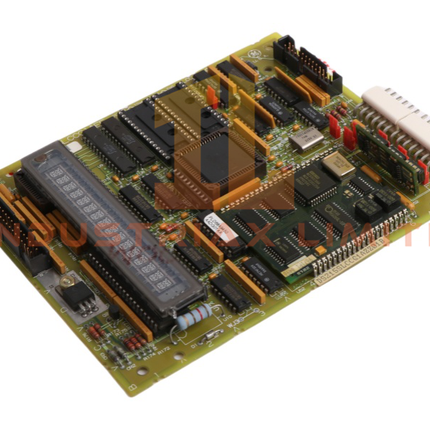

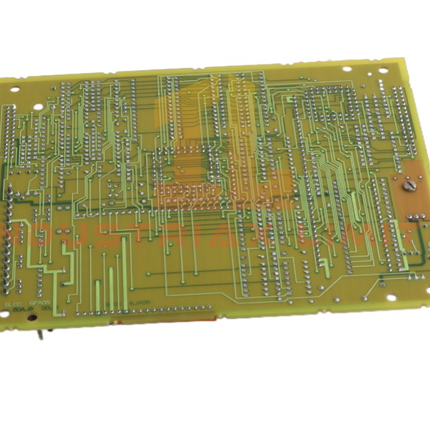

The General Electric DS200SLCCG1ADC Communications Card belongs to the Mark V Turbine Control System series. It provides reliable LAN connectivity for GE drives and exciters, supporting wind, steam, and gas turbine applications.
Technical Specifications
| Parameter |
Value |
| Model Number |
DS200SLCCG1ADC |
| Manufacturer |
GE |
| Module Type |
Communications Card |
| Dimensions |
24.5 × 18.5 × 8 cm |
| Weight |
0.38 kg |
| System |
DCS |
| Communication Service |
Ethernet router |
| Network Interfaces |
DLAN, ARCNET |
| Processor |
LAN Control Processor (LCP) |
| Memory Compartments |
Two removable EPROM slots |
| RAM |
Dual-ported RAM |
| Components |
Capacitors, resistors, transistors, diodes, ICs |
| Diagnostic Access |
Alphanumeric keypad programmer |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
Brand New |
| MOQ |
1 |
Functional Highlights
The DS200SLCCG1ADC integrates a LAN control processor that filters signals before reaching the drive. Dual-ported RAM ensures smooth communication between the LCP and the wired control board. Two EPROM slots store program code, while a keypad programmer provides direct access to diagnostics and system settings.
Design and Performance
GE engineered the DS200SLCCG1ADC with voltage suppression components such as capacitors, resistors, and diodes to maintain operational stability. Static-resistant packaging protects the card during shipment, and installation requires qualified personnel to ensure safe integration.
Applications and Compatibility
The DS200SLCCG1ADC Communications Card remains essential for legacy Mark V turbine systems. It supports Speedtronic control integration, ensuring reliable operation in wind, steam, and gas turbine environments. Its coded product number identifies revisions and coating styles, guaranteeing compatibility within Mark V assemblies.
