Description

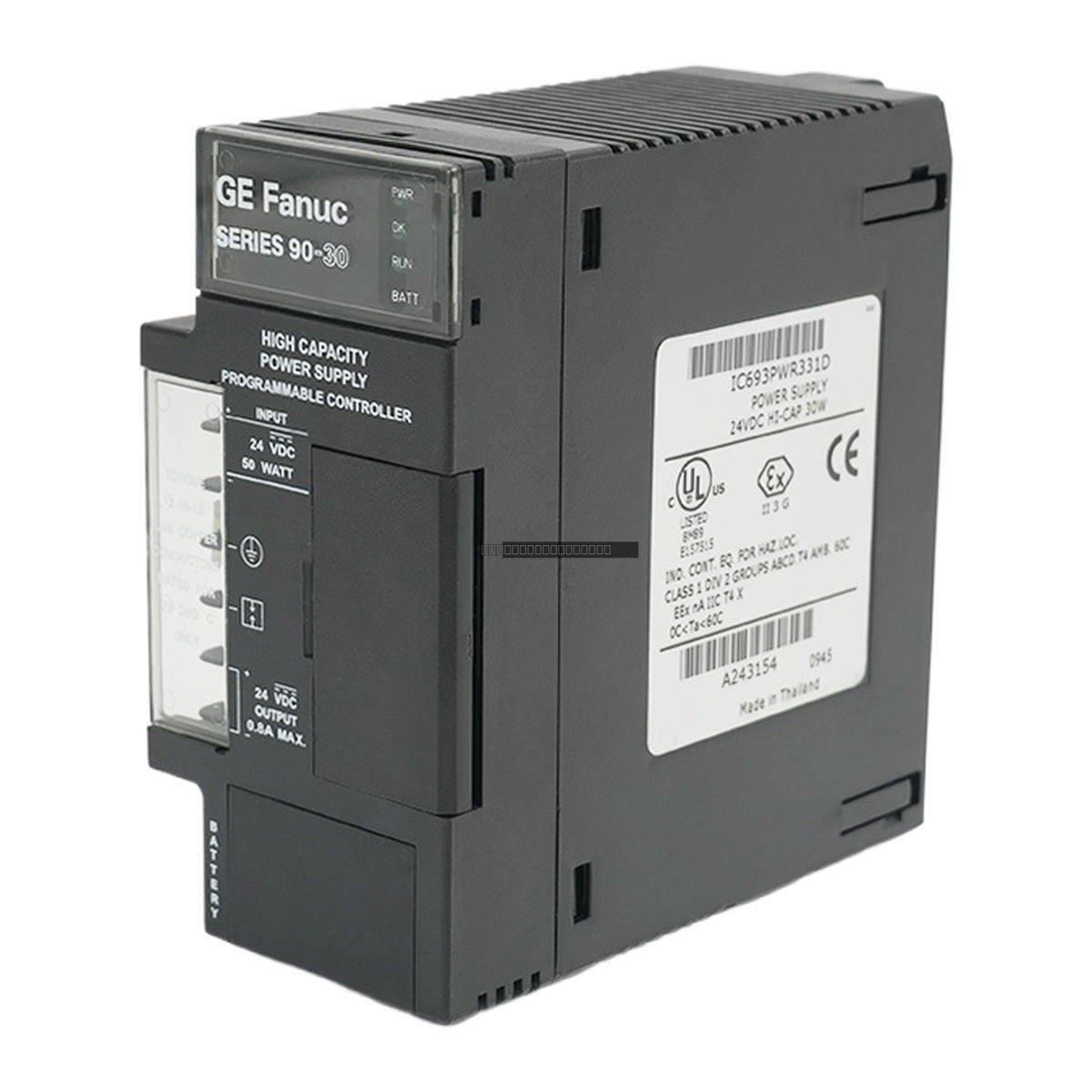

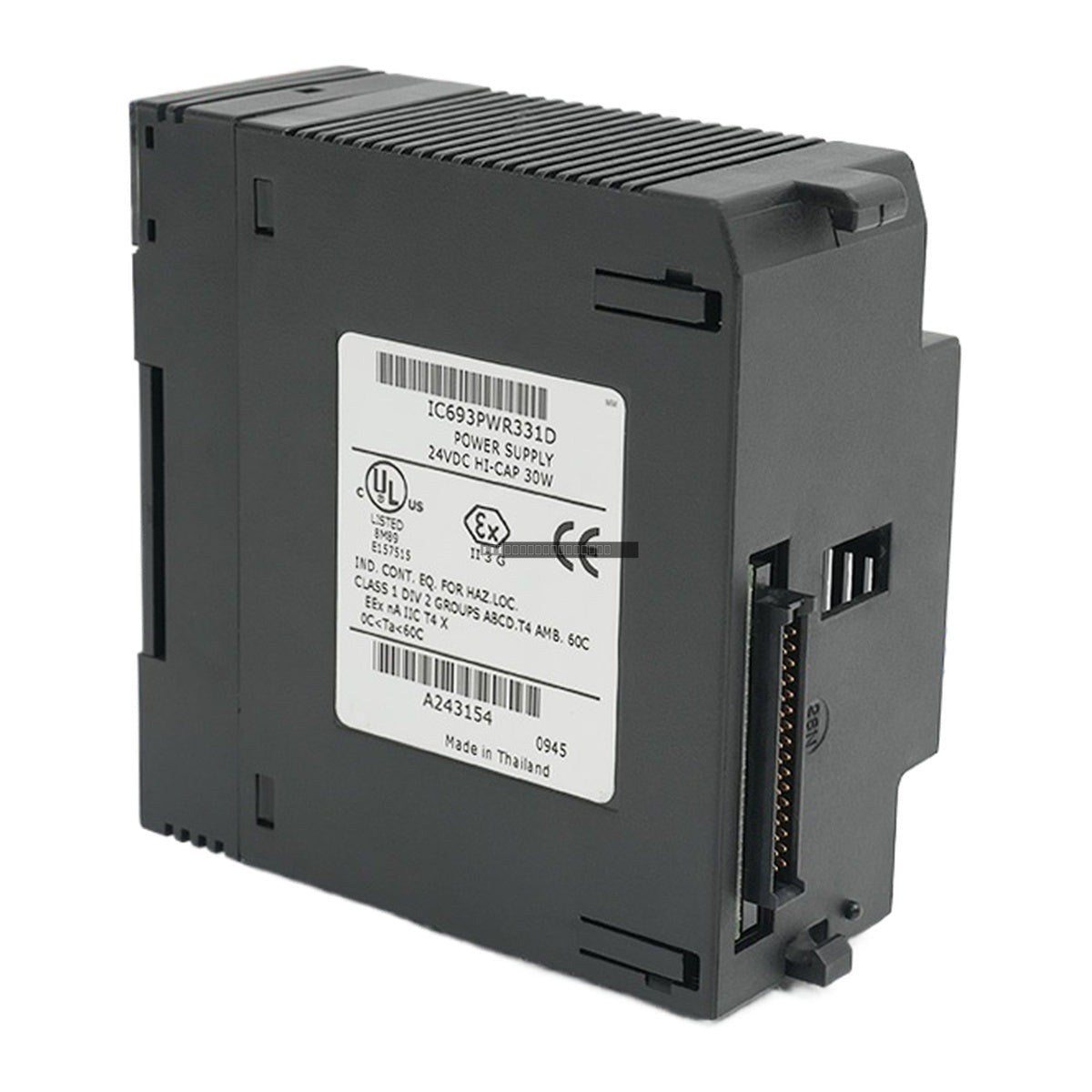

The General Electric IC693PWR331D is a high-capacity power supply module designed specifically for the Series 90-30 PLC system. This unit provides a stable 30-watt power output and is engineered to operate from a DC input source. It is designed to be installed in the leftmost slot of the PLC baseplate, serving as the primary power source for the rack and its associated I/O modules.
Features
- High-capacity 30W power output for demanding PLC configurations.
- Supports 24 VDC to 48 VDC nominal input ranges.
- Provides three distinct outputs: +5 VDC, +24 VDC Relay power, and Isolated +24 VDC.
- Integrated battery backup support to maintain volatile PLC memory.
- Front-panel LED indicators for PWR, OK, RUN, and BATT status monitoring.

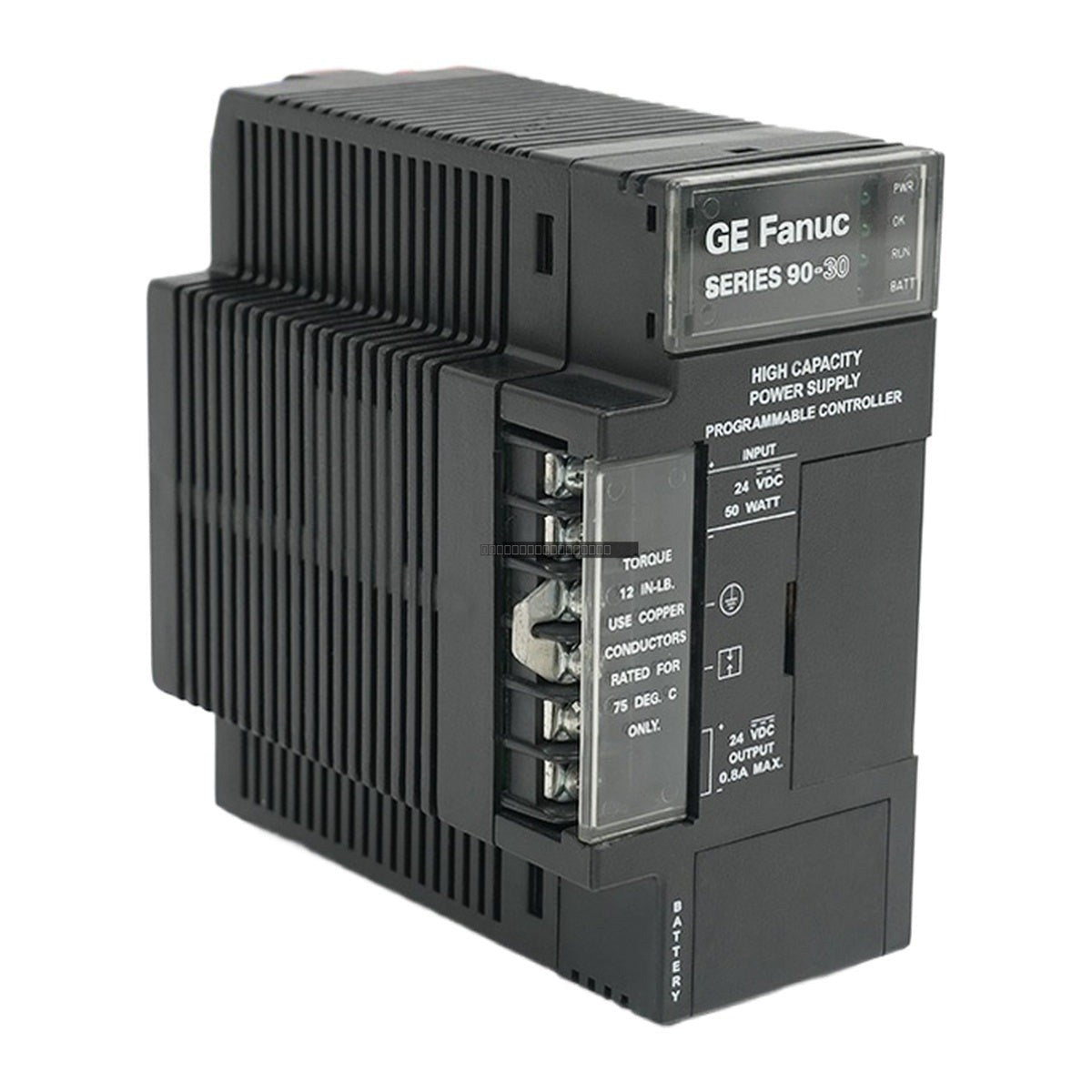

- Includes a dedicated terminal strip and battery connection behind a protective swing door.
Applications
- Injection Molding Machines: Powers PLC and sensors for consistent plastic part production.
- Packaging & Palletizing Robots: Provides stable power for high-speed logistics and robotic automation.
- Material Handling Systems: Supports conveyors, sorters, and pick-and-place operations.
- Assembly Line Automation: Reliable power delivery for multiple power-intensive I/O modules.
- Industrial Elevators & Lifts: Controls logic and safety signals for large-scale lift systems.
Technical Specifications
| Model |
IC693PWR331D |
| Manufacturer |
General Electric |
| Input Voltage Range |
38 to 56 VDC |
| Load Capacity |
30 Watts |
| Input Power |
50 W at full load |
| Outputs |
+5 VDC, +24 VDC Relay, Isolated +24 VDC |
| Mounting Location |
Leftmost Slot (Baseplate) |
| Weight |
0.55 kg |
Installation Guidelines
-
Mounting: Align the module with the baseplate connectors in the dedicated power supply slot (far left). Press firmly until the module is fully seated.
-
Grounding: Ensure the frame ground (Terminal 3) is connected to a solid earth ground for electrical protection.
-
Overvoltage Configuration: Keep the jumper between pins 3 and 4 installed for standard operation. Remove this jumper only if performing a Hi-pot test or if overvoltage protection is provided upstream.
-
Handling: Always power down the rack before inserting or removing the power supply module to prevent electrical damage.
FAQs
What is the IC693PWR331D?
The GE IC693PWR331D is a high-capacity 30-watt, 24/48V DC input power supply designed for the Series 90-30 PLC system.
What input voltage does the IC693PWR331D support?
It is designed for 24V DC to 48V DC nominal inputs, with an operating input range of 38 to 56 VDC.
What is the purpose of the battery on the power supply?
The battery is used to retain the contents of the PLC processor's volatile RAM memory.
How can I troubleshoot a non-working unit?
Common signs of failure include a lack of LED illumination, audible noise upon power-up, or an inability for the CPU to communicate with programming software. A healthy unit will show a green "PWR" LED.
