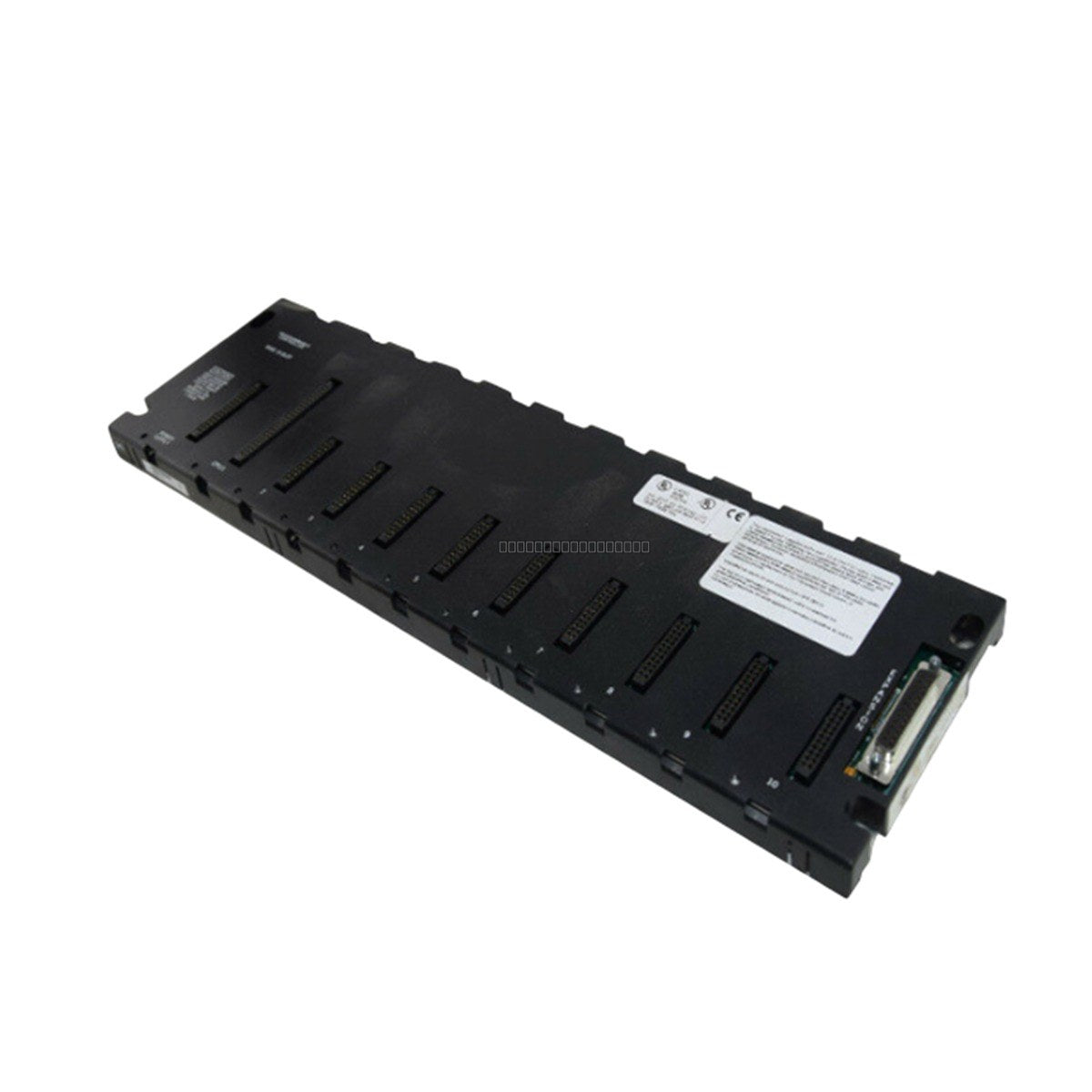

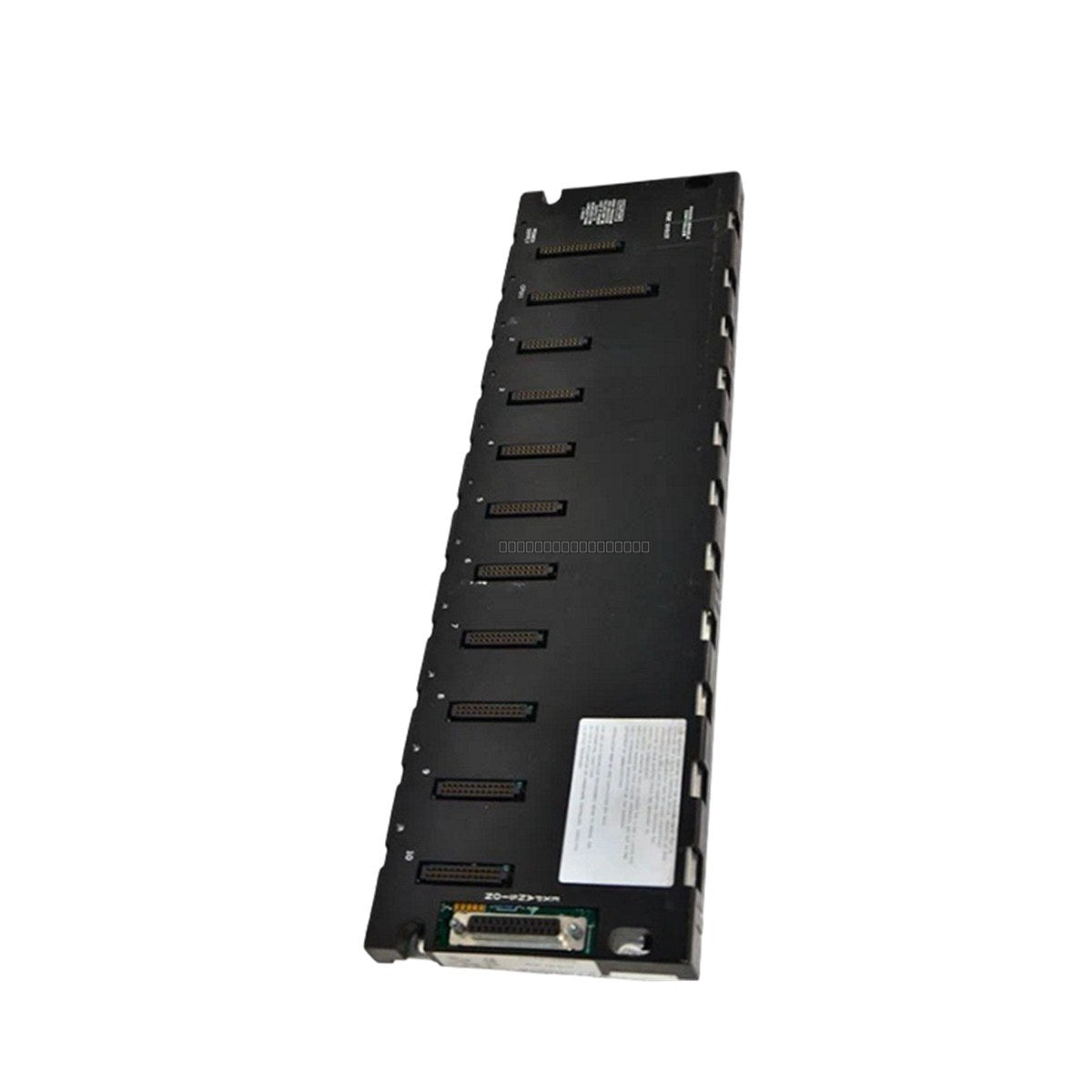

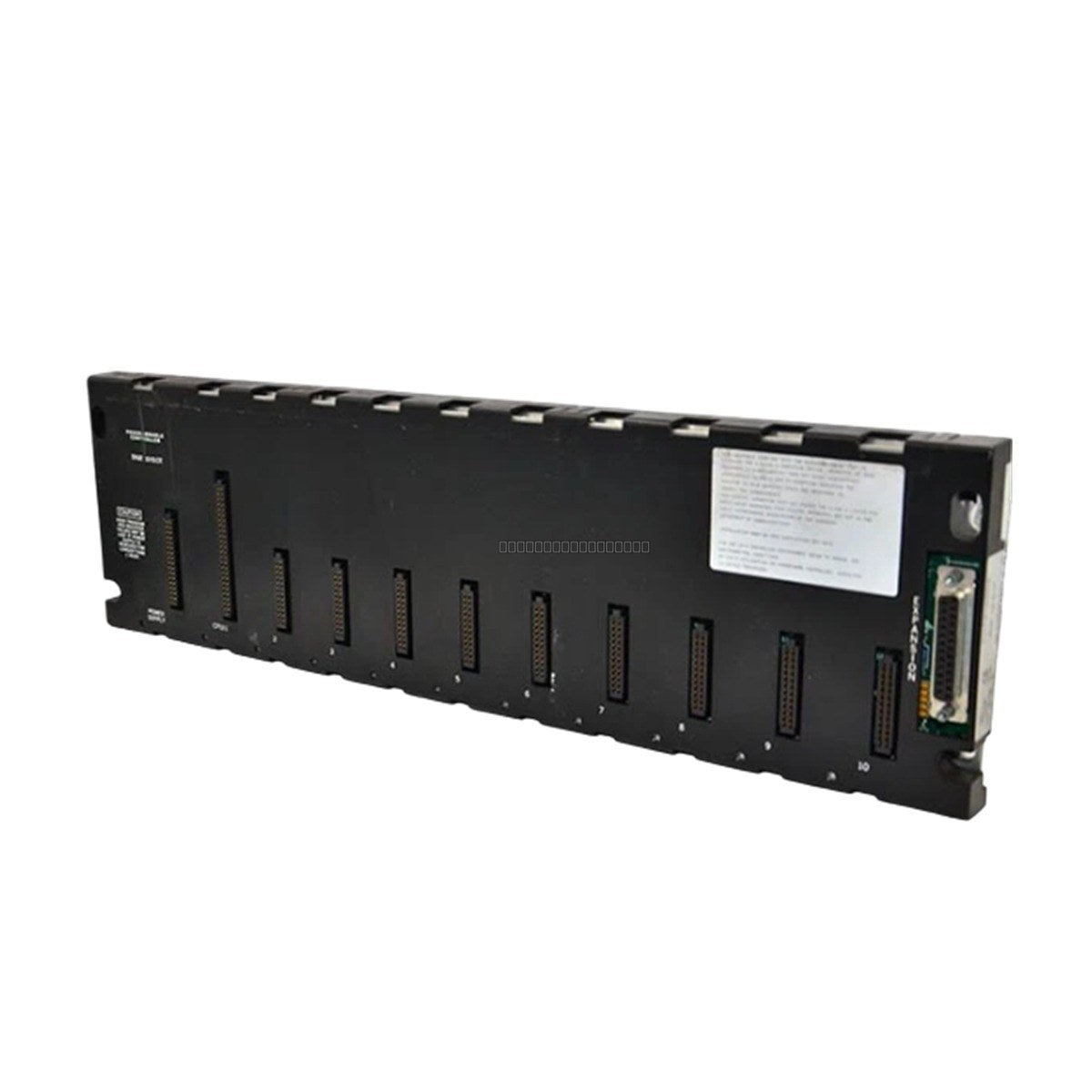

The General Electric IC693CHS391H is a 10-slot expansion baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This modular baseplate provides the necessary physical mounting and electrical interconnects for a CPU module and up to nine additional I/O or specialty modules. It is engineered to support robust communication and power distribution across the 90-30 rack architecture.
Features
- Ten total slots: One dedicated CPU slot and nine slots for I/O or specialty modules.
- Modular design: Facilitates easy expansion and maintenance of the PLC rack configuration.
- Integrated power distribution: Operates at 5 Volts DC with a current requirement of 420 mA.
- Connectivity: Includes a 25-pin female connector for system expansion and communication.
- Compatibility: Fully compatible with the GE Fanuc Series 90-30 product ecosystem.
Applications
This expansion baseplate is utilized in industrial automation environments where additional I/O capacity is required beyond the primary CPU rack. It is commonly found in manufacturing, process control, and machine automation systems where the Series 90-30 PLC platform is deployed to manage distributed I/O modules.
Technical Specifications
| Model Number |
IC693CHS391H |
| Total Slots |
10 |
| CPU Slots |
1 |
| I/O Slots |
9 |
| Voltage |
5V DC |
| Current |
420 mA |
| Connector Type |
25-Pin Female |
Installation Guidelines
- Ensure the power supply is disconnected before installing or removing any modules from the baseplate.
- Mount the baseplate securely to a flat, vibration-resistant surface within an industrial enclosure.
- Maintain adequate clearance around the baseplate to ensure proper airflow and cooling for the modules.
- Handle modules using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
- Verify that all modules are fully seated in their respective slots and that the backplane connectors are aligned correctly.
- Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
FAQ
What is the primary function of the IC693CHS391H baseplate?
The IC693CHS391H serves as a mounting and communication interface for a Series 90-30 CPU and up to nine additional I/O or specialty modules, allowing for the expansion of the PLC system.
Can this baseplate be used as a standalone rack?
Yes, it functions as a standard baseplate in the 90-30 system, providing the necessary backplane bus for the CPU and I/O modules to communicate.
What type of connector is used for expansion?
The unit features a 25-pin female connector for system expansion purposes.
