Description
Overview

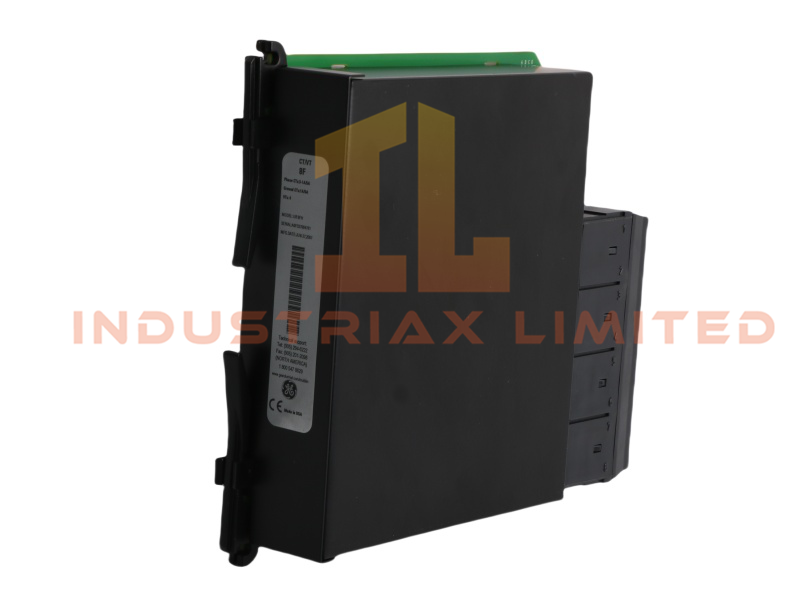

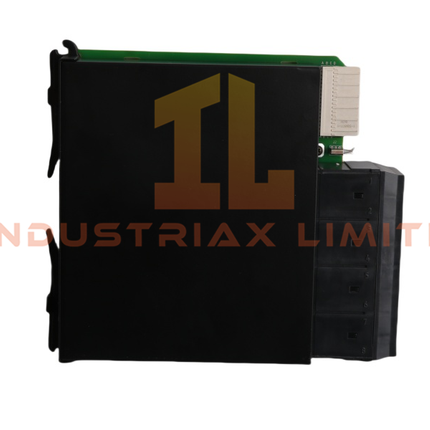

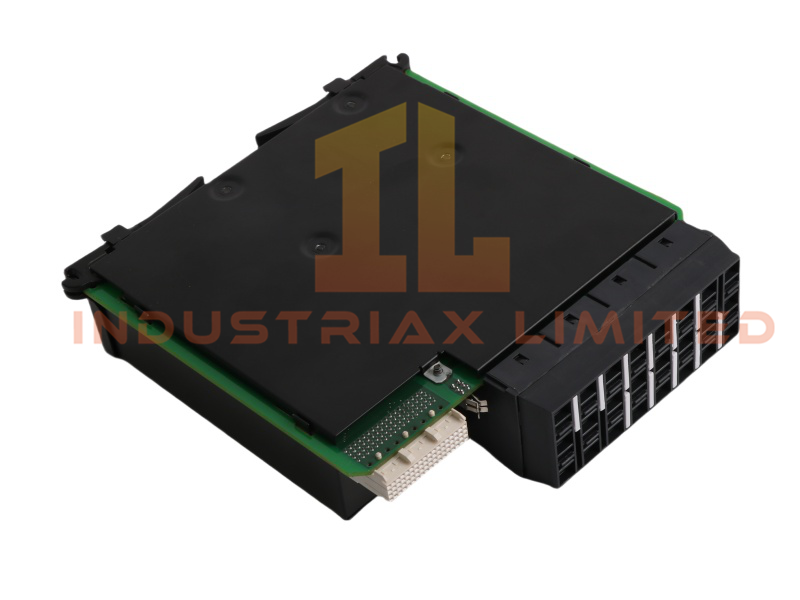

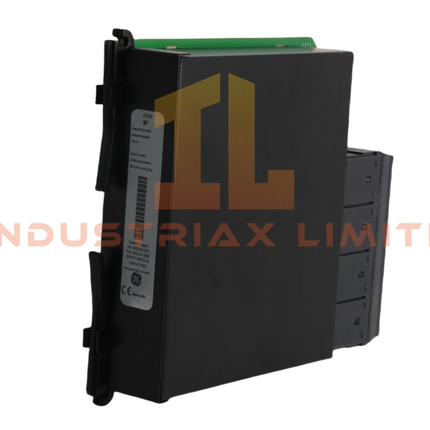

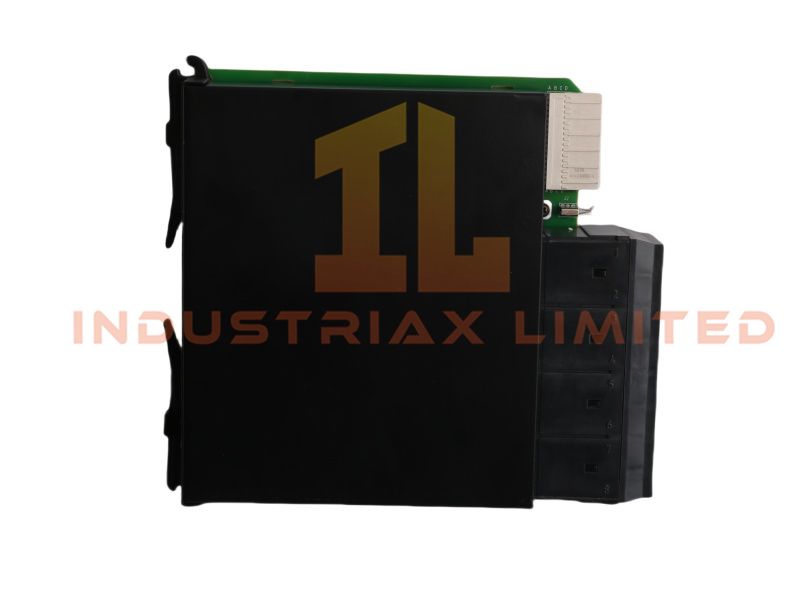

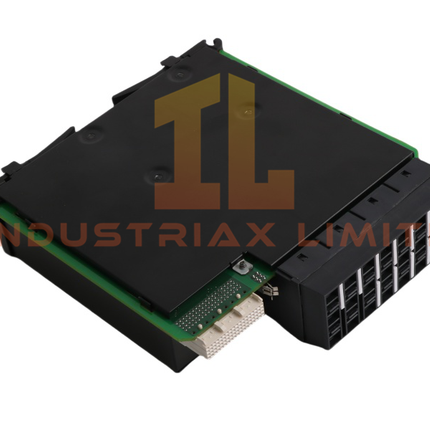

The General Electric UR8FH Multilin UR Control Module enhances Universal Relay systems with precise CT and VT measurement. GE engineered this compact unit to deliver reliable monitoring, ensuring electrical infrastructure safety and efficiency.
Technical Specifications
| Parameter |
Value |
| Model Number |
UR8FH |
| Module Type |
UR Control Module |
| Manufacturer |
GE |
| Condition |
Brand New |
| Range of Product |
Multilin |
| Lead Time |
In Stock |
| Weight |
0.84 kg |
| HS Code |
8537101190 |
| Dimensions |
6 × 19.5 × 17.2 cm |
| MOQ |
1 |
| Origin |
USA |
| System |
PLC |
| Communication Service |
Ethernet Router |
Functional Description
The UR8FH module includes three 1A/5A phase CTs and one ground CT, ensuring comprehensive current monitoring. Engineers added four voltage transformer terminals that provide accurate voltage scaling for precise measurement. The design downscales current and voltage to manageable levels, supplying essential data for relay operations. Voltage or contact inputs across multiple channels allow flexible configuration, supporting both power generation and distribution systems.
Applications and Compatibility
The UR8FH Multilin UR Control Module integrates seamlessly with GE Universal Relays. Industries use this module for transformer monitoring, grid protection, and real-time diagnostics. Its compact design, CT/VT functionality, and EnerVista software compatibility make it suitable for distributed control systems in energy, automation, and industrial environments.
