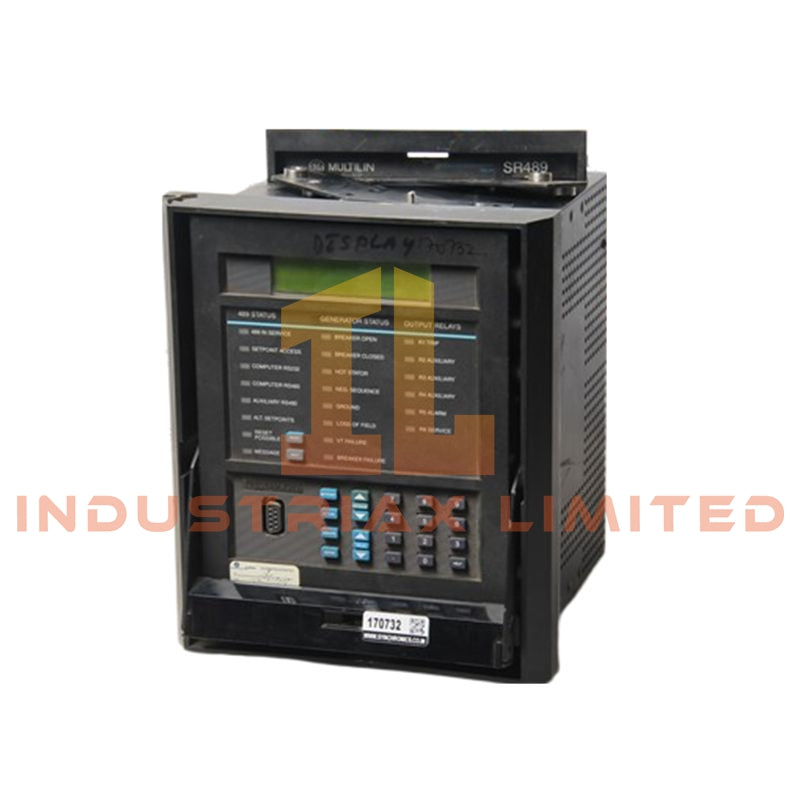

GE Multilin SR489-P1-HI-A20-E Generator Management Relay

The GE Multilin SR489-P1-HI-A20-E, also cataloged as the 489-P1-HI-A20-E Generator Management Relay, operates as a dedicated hardware component for generator protection, monitoring, and control signal processing within generator management and power system protection networks.

Hardware Specifications

Parameter	Specification
Model	SR489-P1-HI-A20-E
Brand	GE Multilin
Operating Temp	-40 deg C to +60 deg C
Power Consumption	Not specified in provided documentation
Product Type	Generator Management Relay
Control Power Supply	70 to 265 VAC (48 to 62 Hz), 90 to 300 VDC
Phase Current Input	1 A secondary CT input
Ground / Neutral Current Input	1 A or 5 A selectable CT input
Voltage Input Range	0 to 280 VAC phase-to-neutral
Frequency Measurement Range	20 Hz to 70 Hz
Analog Outputs	8 assignable 4 to 20 mA channels
RTD Inputs	12 RTD inputs
Digital Inputs	9 assignable discrete contact inputs
Output Relays	8 configurable trip, alarm, and auxiliary relays
Communication Ports	RS232 front port, RS485 rear port, optional 10 Mbps Ethernet
Communication Protocols	Modbus RTU, Modbus TCP/IP, DNP 3.0 Level 2

Firmware Flash Compatibility and Generator Control Interface

The GE Multilin SR489-P1-HI-A20-E uses a microprocessor-based relay architecture with configurable protection logic, measurement processing, and communication functions. The relay integrates firmware-managed protection algorithms with generator electrical inputs, RTD temperature monitoring, programmable outputs, and Modbus-based data exchange.

The hardware supports firmware flash compatibility through the SR489 platform configuration, allowing installed protection logic and communication functions to be maintained according to the supported relay firmware revision. Configuration parameters include CT scaling, VT measurement ranges, protection pickup values, alarm thresholds, and output assignments.

The relay provides deterministic communication through RS485 Modbus RTU and optional Ethernet Modbus TCP/IP interfaces for integration with generator control and monitoring systems.

Frequently Asked Questions

Q: What current transformer inputs are supported by the SR489-P1-HI-A20-E?
A: The P1 option provides 1 A secondary phase current CT inputs. Ground and neutral current inputs support configurable 1 A or 5 A nominal CT connections.

Q: Does the relay support hot-swap replacement during operation?
A: The provided documentation does not specify hot-swap capability. Replacement should be performed with the relay isolated from control power and field wiring according to site procedures.

Q: Which communication interfaces are available for configuration and system integration?
A: The relay provides an RS232 front port for EnerVista setup software, an RS485 rear port supporting Modbus RTU, and optional Ethernet supporting Modbus TCP/IP.

Field Installation Guidelines

Install the SR489-P1-HI-A20-E in a protected relay panel environment with wiring separation between CT circuits, VT circuits, control power, and communication cables.

Verify CT polarity and secondary wiring before energizing the relay. CT circuits should remain properly terminated during testing and maintenance activities.

Use shielded communication cables for RS485 networks and terminate cable shields according to the plant grounding practice. Maintain separation between communication wiring and high-current conductors to reduce electrical interference.

Connect control power within the specified AC and DC input ranges. Confirm grounding continuity, terminal tightness, and insulation condition before commissioning.

Configure CT ratios, VT parameters, protection settings, RTD assignments, and communication addresses through the approved configuration software before placing the generator protection functions into service.
